Aluminum Alloy 1060 Primer Coated Foil with High Adhesion Coating for Lamination in 0.03–0.1 mm Thickness and Customizable Width
Price:
Negotiable
MOQ:
1000 Kgs / 1 Metric Ton
Delivery Time:
Within 35 Days After Order Confirmed And Down Paymetn Received
Brand:
Dingang
Product Description
Aluminum Alloy 1060 Primer Coated Aluminum Foil for Lamination
Product Overview
1060 primer coated aluminum foil (0.03-0.1 mm) offers the highest cost-performance as a mainstream substrate in global flexible packaging lamination. Ideal for food, pharmaceutical, coffee, milk powder, and pet food applications requiring high-barrier aluminum-plastic structures.
Superior Performance vs 8011/8079 Alloys
- Higher purity (≥99.60%) resulting in lower pinhole rate (≤20 pcs/m² @ 40 μm)
- Enhanced surface flatness and coating adhesion
- Lower material cost while maintaining excellent deep-draw and heat-seal performance
Coating System
Food-grade primer (vinyl/acrylic, low-migration) with adhesion ≥5 N/15 mm. Guaranteed 36+ months zero migration and barrier integrity after lamination.
Product Specifications
| Thickness | 0.01mm-2.5mm |
| Width | 600-1500mm |
| Material | 1060 |
| Temper | O, H12, H14, H16, H18, H24, H26, H32, H34, etc |
| Inner Diameter | 405mm, 505mm, 150mm, etc. |
| Color | RAL, Pantone Color or custom requirements |
| Coating Thickness | PVDF Paint Coating: ≥25um | PE Paint Coating: ≥18um |
| Packing | Export Standard Wooden Pallets (Eye To Wall, Eye To Sky) |
| Payment Terms | L/C at sight or 30% T/T in advance, 70% balance against B/L copy |
| MOQ | 1 Ton Per Specification |
| Delivery Time | Within 30 Days |
| Loading Port | Shanghai Port |
| Application | Lamination |
Core Advantages
| Extremely High Coating Adhesion | Peel strength ≥5 N/15 mm, zero delamination risk |
| Ultra-Low Pinhole Rate | ≤20 pcs/m² ensuring true high barrier performance |
| Excellent Deep-Draw & Heat-Seal | Suitable for cold-form blister and high-speed heat-sealing applications |
| Highest Cost-Performance & Sustainability | Lower cost than 8011/8079, 98% recyclable, low carbon footprint |
| Long-Term Barrier Stability | 75% RH accelerated aging test passed |
| Pharma Compliance | FDA, EU 10/2011, China GB standards |
Case Studies
- Ferrero Rocher & Kinder Chocolate: 40 μm 1060 + high adhesion primer - 24-month shine retention in tropical climate, over 2 billion meters/year
- Nestlé Nido & NAN Milk Powder: 50 μm 1060 + barrier primer - 36 months at 40°C/75% RH with zero caking
- Pfizer Paxlovid Oral Antiviral: 25 μm 1060 + pharma-grade primer - 36-month stability test passed, no pinhole migration
- Nespresso Compatible Coffee Capsules: 30 μm 1060 + heat-seal primer - 1200 capsules/min high-speed sealing, zero leakage
International Applications

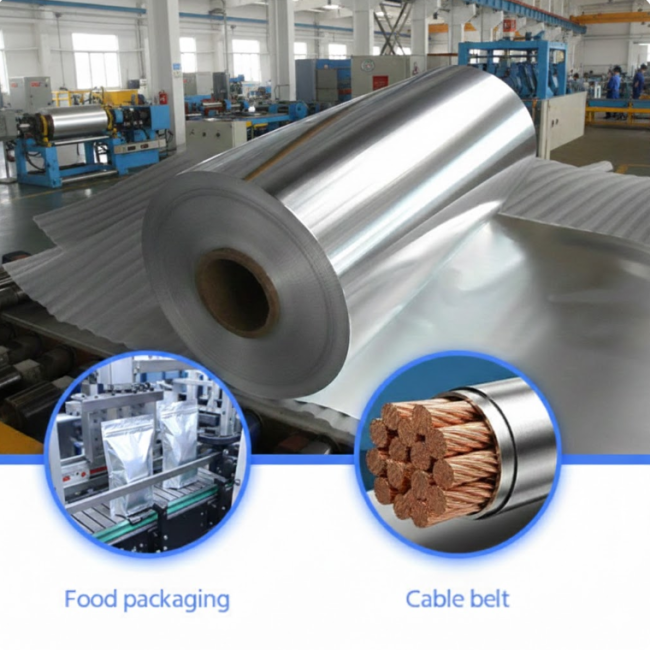

- Food flexible packaging: chocolate, coffee, milk powder, nuts, pet food aluminum-plastic pouches
- Pharma blister/strip: tablet/capsule/sachet cold-form aluminum-plastic blister
- Liquid/semi-liquid packaging: sauces, yogurt, jam, cosmetic tubes aluminum-plastic laminate
- Industrial/special packaging: electronic components moisture-proof bags, lithium battery soft-pack base material
- High-end coffee capsules: Nespresso, Starbucks compatible capsule bottom foil
Industry Trends
- Thinner high-adhesion direction: 15-25 μm ultra-thin becoming mainstream
- Mono-material trend: aluminum + PE single-material structure, 100% recyclable
- Active barrier coating: built-in oxygen absorber/desiccant primer
- Smart packaging foil: NFC/RFID anti-counterfeit + freshness indicator coating
- Circular economy: 95%+ recycled content 1060 with blockchain carbon footprint passport
- Extreme stability: 48-month warranty becoming standard for infant nutrition / biologics
Get Packaging Foil with 36+ Months Zero Delamination & True High Barrier
Contact us to receive 40 μm high adhesion primer sample + SGS peel strength report + real brand case package
24-hour rapid quote available
Contact Dingang NOW – make your packaging never delaminate & preserve freshness forever!
T: 0086 13961220663
