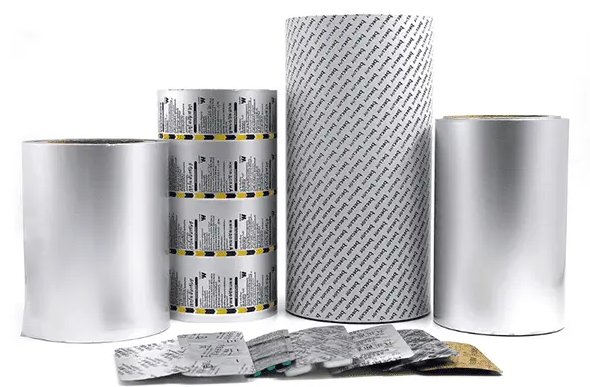

Aluminum Alloy 8011 Aluminum Foil for PTP Blister Packaging | Thickness 0.02–0.03 mm | Width 200–600 mm | H18 Hard Temper | Heat Seal Lacquer
Introduction
The 0.02–0.03 mm 8011 H18 hard temper aluminum foil with heat seal lacquer is the global pharmaceutical industry standard for PTP (Push-Through) blister lidding foil.This ultra-thin, hard-temper foil is specifically engineered for:
High-speed rotary and flat-bed blister packaging lines (800–1500 blisters/min)
Clean, controlled peel with no residue or tearing
Superior barrier against moisture, oxygen, and light
Compatibility with PVC, PVDC, and PCTFE base films
Compared to 8079 (stronger but more expensive) or 1200 (softer), 8011 H18 provides the optimal balance of hardness, formability, and cost for high-volume pharmaceutical blister production.
Coating system:Heat seal lacquer (vinyl/acrylic-based, low-migration) on one side,Protective lacquer on the opposite side (optional printing side),Seal strength: 8–15 N/15 mm with standard PVC/PVDC,Compliance: FDA 21 CFR 175.300, EU 10/2011.
Product Parameters:
| Product |
Aluminum Alloy 8011 Aluminum Foil for PTP Blister Packaging | Thickness 0.02–0.03 mm | Width 200–600 mm | H18 Hard Temper | Heat Seal Lacquer |
| Thickness | 0.01mm-0.09mm |
| Width | 100–1500mm |
| Materia | 8011 |
| Temper | O, H12, H14, H16, H18, H24, H26, H32, H34, etc |
| Inner Diameter | 405mm,505mm,150mm,etc. |
| Color | RAL, Pantone Color Or As Alient's Demand |
| Coating thickness | PVDF Paint Coating: Not Less Than 25um |
| PE Paint Coating : Not Less Than 18um | |
| Packing | Export Standard Wooden Pallets (Eye To Wall,Eye To Sky) |
| Payment Terms | L/C at sight or 30% T/T in advance as deposit, and 70% balance against the B/L copy. |
| MOQ | 1 Ton Per Specification |
| Delivery Time | Within 30 Days |
| Loading Port | Shanghai Port |
| Application |
PTP Blister Packaging |
Advantages
Core Benefits:
| Advantage | Detailed description |
|
High Hardness (H18 Temper) |
Excellent stiffness for clean push-through opening. |
|
Superior Heat Seal Performance |
Consistent seal strength 8–15 N/15 mm at high line speeds. |
|
Ultra-Low Pinhole Rate |
≤15–25 pcs/m² → true high barrier for sensitive APIs. |
|
Clean & Controlled Peel |
Easy peel with no residue or stringing – patient-friendly. |
|
Excellent Printability |
Stable at 1000 m/min on 10-color gravure/flexo lines. |
|
Recyclability & Sustainability |
Enables lightweight blister packs,lower CO₂ vs alternatives. |
Case Studies
1.Pfizer Paxlovid & COVID Oral Antiviral Blister
Thickness: 25 μm 8011 H18 heat-seal lacquered
Result: 36-month shelf life at 40 °C/75% RH, zero moisture ingress
2.GSK Trelegy Ellipta Inhaler Refill Blister
Thickness: 28 μm 8011 H18 with PCTFE compatibility
Result: perfect push-through performance, no delamination
3.Novartis Entresto & Cosentyx Cold-Form Compatible Lidding
Thickness: 22–25 μm 8011 H18
Result: 1200 blisters/min line speed, zero seal failure
4.Teva Generic Cardiovascular Blister Packs
Thickness: 25 μm 8011 H18
Result: cost-effective high-volume production, excellent clean peel
5.AstraZeneca Proton Pump Inhibitor Blister
Thickness: 30 μm 8011 H18 high-barrier lacquer
Result: 48-month stability forecast, no API degradation
International Applications
PTP blister packs for tablets, capsules, and softgels
Blister packaging for OTC medicines, generics, and nutraceuticals
Hospital unit-dose blister packaging
Veterinary pharmaceutical blister packs
High-barrier pharma sachets and strip packs
Mega Trends
Thinner gauges:15–22 μm 8011 H18 for cost & sustainability push
Mono-material blisters:aluminum lidding + recyclable PVC alternatives
Easy-peel & child-resistant designs:laser-score & peelable sealants
Active barrier lacquers:oxygen-scavenger & desiccant integration
95%+ recycled content:traceable 8011 foil with blockchain CO₂ passport
Smart blisters:NFC/RFID + freshness indicators printed on foil
Upcoming Applications
Space mission 5-year shelf-life pharmaceutical blisters
Mars habitat medical kit moisture-proof packaging
Gene-therapy & biologic cold-chain alu-alu blisters
Personalized medicine on-demand blister packaging
FAQ (USA/Europe/Middle East/Asia Buyers)
Q1: Why choose 8011 H18 over 8079 for PTP blister lidding?
A: 8011 H18 provides the best balance of hardness for clean push-through, excellent heat-seal consistency, and lower cost than 8079. It is the preferred choice for standard thermoform blisters, while 8079 is more common for cold-form alu-alu applications.
Q2: What is the typical seal strength and peel performance?
A: Seal strength 8–15 N/15 mm with standard PVC/PVDC. Clean peel with no stringing or residue. We provide peel-force curves and opening test videos for your base film.
Q3: Can you provide full FDA / EU 10/2011 / USP <661> compliance & migration test reports?
A: Yes — complete regulatory package + third-party migration/leachability reports (SGS/Intertek). Supports full pharma submission dossiers.
Q4: Minimum order quantity & lead time for custom lacquer or printing?
A: MOQ 3–5 tons (depending on specification); standard heat-seal lacquer 15–25 days; custom lacquer or printed design 25–35 days. Sample rolls free with freight collect.
Q5: How does 8011 H18 foil perform in high-humidity / tropical pharma markets?
A: Excellent — passes 40 °C / 75% RH accelerated aging for 36–48 months with no barrier loss or migration. Tropical stability & humidity chamber data available.
Q6: Is 8011 H18 suitable for both thermoform push-through and cold-form alu-alu blisters?
A: Yes — optimized for thermoform push-through blisters. It also performs well as lidding for cold-form alu-alu when higher formability is needed. We provide both sealing and forming test reports.
