2500 mm Width Super Wide Color Coated Aluminum Sheet Used For Truck Body Manufacture
2500 mm Width Super Wide Color Coated Aluminum Sheet Used For Truck Body Manufacture
Description of prepainted aluminium :
Color coated aluminum ( prepainted aluminum ) , which is produced with aluminum sheet or coil and processed by coating with color or pattern.
In common sense , here are two kinds of coating PVDF and PE . Compared with other section steel prepainted aluminum coil is the more popular material , because of its excellent property. Firstly the property is very stable so the surface is erosion resistant , warranty could up to 30 years long after special treatment . Then , the density is the lowest among metal material when volume is fixed .
Specifications :
Alloy : AA1050 , 1060 , 1100 , 3003 , 3004 , 3105 , 5052 , 5005 , 5754 , 5083 , 6061 , 6063 , 8011 Etc
Temper : O / H16 / H18 / H22 / H24 ( All According Customers' Requirement )
Standard : ASTM , ASME , AISI , JIS , DIN , EN , ISO , GB And Etc
Thickness : 0.1 mm - 2.5 mm
Width : 30 - 2500 mm
Thickness Paint Layer : ( PVDF ) more than 25 micron ; ( PE ) more than 18 micron
Interior Diameter : 405 mm , 505 mm , 150 mm etc
Color : Ral Color Code Or As Per Clients Requirements And Sample
Coating Hardness : More Than 2H ( pencil hardness )
Impact Resistance : No Cracking And Peeling ( 50kg / cm , ASTMD - 2794 : 1993 )
Flexibility ( T-bend ) : No More Than 2T
MEK Resistance : More Than 100
| Alloy | AA1050 , 1060 , 1100 , 3003 , 3004 , 3105 , 5052 , 5005 , 5754 , 5083 , 6061 , 6063 , 8011 Etc | Temper | O , H12 , H14 , H16 , H18 , H24 , H26 , H32 , H34 , H111 , H112 , T3 , T5 , T6 Etc |
| Coating Type | PE Or PVDF | Interior Diameter | 508 mm |
| Material Width | From 30 To 2500mm | Material Thickness | 0.1 - 2.5mm |
| Color Option | Ral Color Code Or As Per Clients Requirements And Sample |
Paint Performance of prepainted aluminium :
| Test Item | Paint | ||||
| PVDF | PE And Others | ||||
| With Varnish | Without Varnish | ||||
| Paint Film Thickness , μ | ≥ 22 | ≥ 30 | ≥ 18 | ||
| Shine Tolerance | Shine ≥ 80 Unit , ± 10 Unit Allowed | ||||
| Shine ≥ 20-80 Unit , ± 7 Unit Allowed | |||||
| Shine < 20 Unit , ± 5 Unit Allowed | |||||
| Pencil Hardness | ≥ 1H | ||||
| Abrasion Resistance, L/μm | ≥ 5 | -- | |||
| T-bend | ≤ 2T | ≤ 3T | |||
| Impact Strength | 50KG . CM Without Depainting And Crack | ||||
| Adhesive Force ( Class ) | ≥ 1 | ||||
| Boiling Water Resistance | Unvarying | ||||
| Chemical Resistance | Acid Endurance | Unvarying | |||
| Alkali Stability | Unvarying | ||||
| Oil Resistivity | Unvarying | ||||
| Resistance To Solvent | ≥ 70 | ≥ 50 | |||
| Scrub Resistance | ≥ 10000 Times Unvarying | ||||
| Dirt Resistance | ≤ 15 % | -- | |||
| Salt Spray Resistance ( class ) | ≥ 2 class | -- | |||
Color Coated Aluminum Types :
Application :

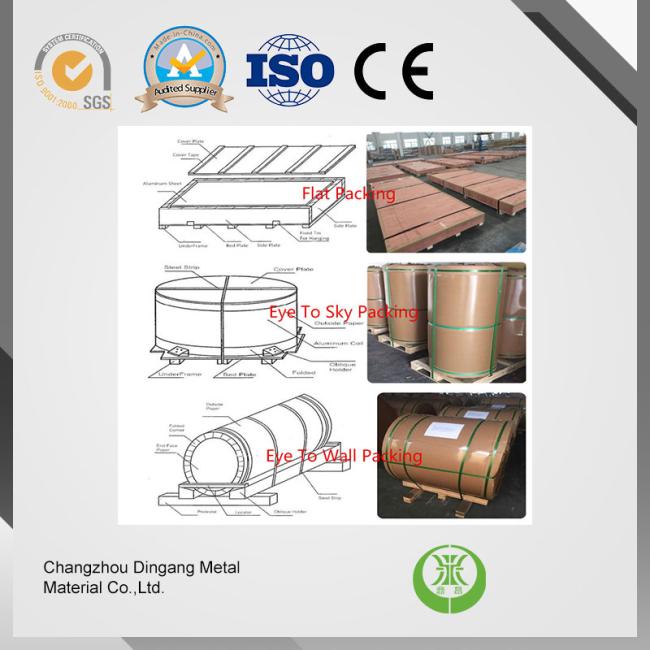

Packing :
Export Standard Seaworthy Packing With Wooden Pallets In Horizontal Or Vertical (As Per The Requirements Of Clients)
