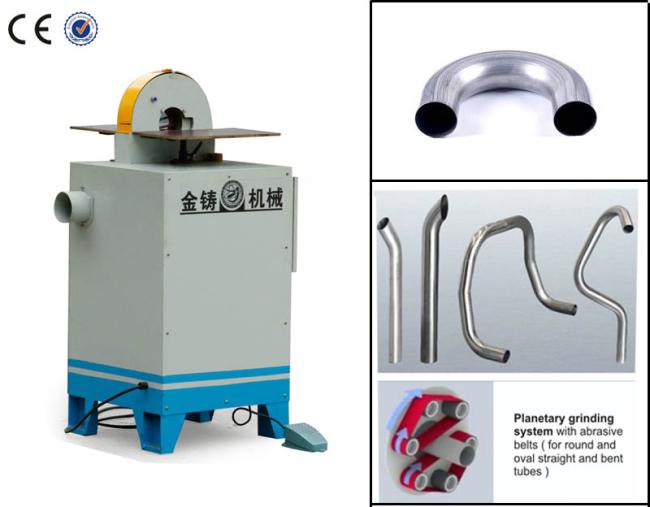

Bending tube grinding machine
Product Description
Bending tube grinding machine is suitable for round oval straight and bent tube grinding, and the pipe diameter can be 0-60 mm, 60-90 mm,90-150 mm. The girt of abrasive belt is from small to large to get satin grinding effect and get good ready for next polishing processing. And the features of the bending pipe belt grinding machine are below:
- manual operation and safety
- less Maintenance rate than common machine
- because special design, So less deformation rate after polishing (almost less than 2%)
- continuously working time more than 10 years
Specification
| Bending tube grinding machine | |
|---|---|
| Model | JZ-L6011-B |
| Main motor | 2.2kw |
| Pipe diameter | 0-60mm can be customized |
| The size of abrasive belt | 2100mm*50mm |
| Spindle speed | 1440 r/min |
| Voltage | 380V, 50HZ |
| Mechanical operation | manual |
| belt size | 650mm*25mm |
| Usage | for bending pipe sanding/polishing |

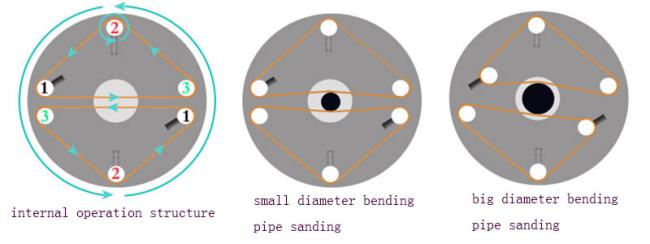

Detail image of Bending tube grinding machine
① Adjusting grinding diameter round: adjusting the interval of the belt according to the size of sanded pipe diameter.
② Transmission : the power of belt needed to be operated. Press to change the when replacing the belt, and to achieve purpose of rapid changing belt.
③ Tire fixed: eccentric prevent belt slippage and ensure uniform belt running smoothly.

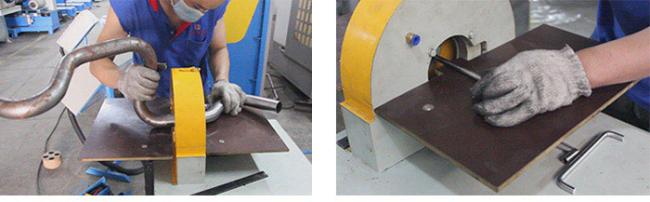

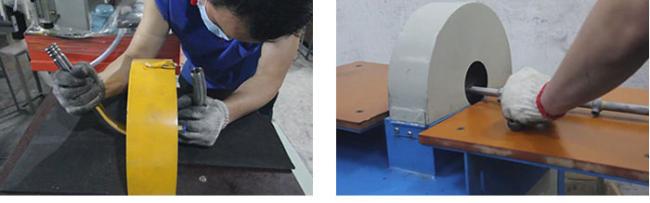

The application of Bending tube grinding machine
