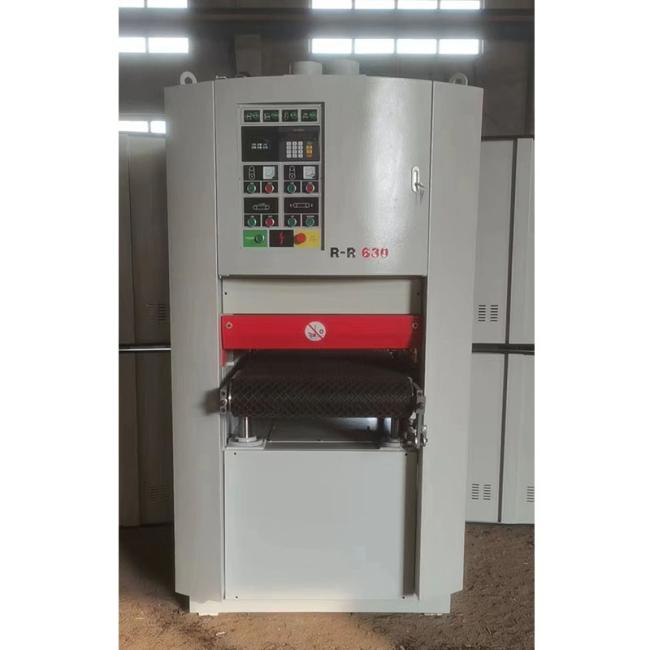

Item: RR630 automatic wide belt sander for 630mm sheet

It is widely used in flat panels and various hardware panels for surface sand-drawing treatment. The
machine is divided into two types: dry grinding and water grinding. There are models of 400mm, 630mm,
1000mm, 1500mm and other specifications. The working grinding heads are also divided into single
group, double group and multiple groups. Customers can choose according to process and needs.

This product is used for various component parts of the belt surface sanding and polishing machines. metal sanding. Polyester paint finish on soft surfaces. Wide belt sander is an efficient, highly automated sanding equipment, widely used in metal,large-format plywood, solid wood furniture parts and sanding process, it can be done thick sanding and surface finishing sanding.

Specification:

1. Processing width 40-630mm

2. Processing thickness 3-120mm

3. Processing length>500mm

4. 1 # sand frame belt line speed 19m/s

5. 2 # sand frame belt line speed 19m/s

6. Feeding speed 4-20 m/min

7. Belt size (width × Perimeter) Belt size (w × p) 650 × 1900mm

8. Total motor power 20.37kw

9. Working pressure 0.55MPa

10. Main motor 11kw, 7.5kw

11. Overall dimension (length × wide × High) Dimensions 1800 × one thousand and two hundred × 1900mm L × W × H

12. Machine weight 1500kg
