RP400 wide belt sander of metal working belt sanders
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
JINZHU
Product Description

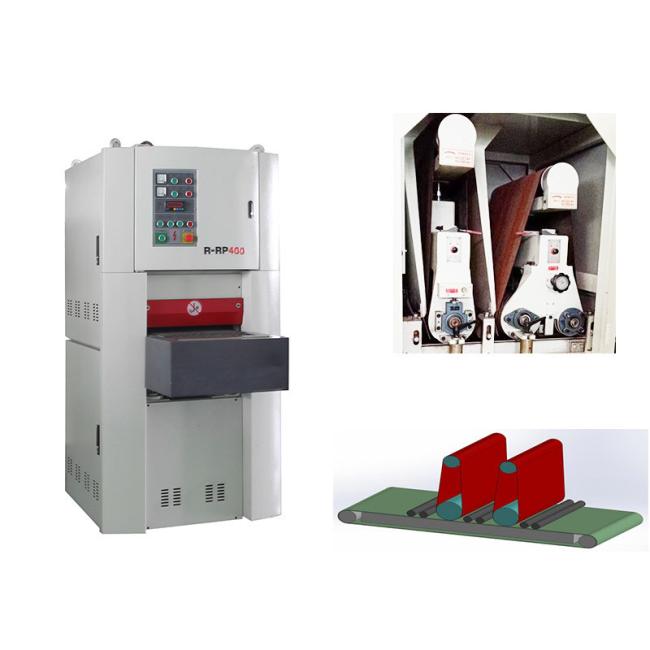

Item: RP400 wide belt sander of metal working belt sanders
Product Description:
It is widely used in flat panels and various hardware panels for surface sand-drawing treatment. The
machine is divided into two types: dry grinding and water grinding. There are models of 400mm, 630mm,
1000mm, 1500mm and other specifications. The working grinding heads are also divided into single
group, double group and multiple groups. Customers can choose according to process and needs.
machine is divided into two types: dry grinding and water grinding. There are models of 400mm, 630mm,
1000mm, 1500mm and other specifications. The working grinding heads are also divided into single
group, double group and multiple groups. Customers can choose according to process and needs.
Specification:
1. Processing width 40-400mm
2. Processing thickness 3-120mm
3. Processing length>350mm
4. 1 # sand frame belt line speed 17m/s
5. 2 # sand frame belt line speed 17m/s
6. Feeding speed 4-20 m/min
7. Belt size (width × Perimeter) Belt size (w × p) 420 × 1700mm
8. Total motor power 14.47kw
9. Working pressure 0.55MPa
10. Main motor 7.5kw, 5.5kw
11. Overall dimension (length × wide × High) Dimensions 1600 × eight hundred × 1800mm L × W × H
12. Machine weight 1000kg
