Automatic Sheet Metal Polishing Deburring Three-sand belt one- water mill sheet drawing machine

Product Overview:

It is widely used in the surface sanding, polishing and wire drawing of metal plates and various hardware
panels. The machine is divided into two types: dry grinding and water grinding. There are models of
400mm, 630mm, 1000mm, 1500mm and other specifications. The working grinding heads are also divided
into single group, double group and multiple groups. Customers can choose according to process and
needs.

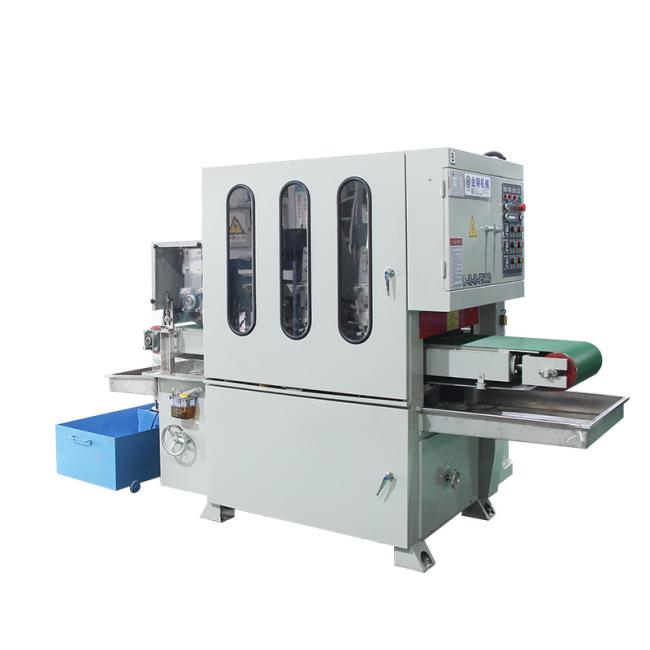

Flat sheet Grinding Deburring Machine
Automatic sheet metal polishing deburring machine and hairline drawing.(NO.4 SB Finishment) If your process or machines
shear,plasma cut,water jet,punch,laser,or mill,you've got burrs.
The production line can efficiently solve the burr and dust problems for you.
At same time,do the NO.4 SB surface finishment.

This is a professional machine for sheet metal manufacturing and processing enterprises.

FEATURES AT A GLANCE:

No	Item	SXL-RR5240	SXL-RRR5340	SXL-RRRP5440
1	Max working width	400mm	400mm	400mm
2	Max working height	60mm/customized	60mm/customized	60mm/customized
3	First Motor Power	7.5kw	7.5kw	7.5kw
4	Second Motor Power	5.5kw	5.5kw	5.5kw
5	Third Motor Power	/	5.5kw	5.5kw
6	Polishing Roller	/	/	5.5kw
7	Weight	800kg	1000kg	1200kg
8	Working Table	Rubber Roller/Magnetic	Rubber Roller/Magnetic	Rubber Roller/Magnetic



PRODUCT CONFIGURATION

FAQ

Q1:Are you factory or trade company?

A1:We are factory,located in Jinhua ,zhejiang province,one hour near Yiwu city.

Q2: Your advantages?
A2: we have been in metal polishing about 15 years,Have rich experience, can provide you with professional design, custom machine.

Q3:Do you have overseas sales experience?
A3:Yes sell machine to Russia,Europe,Asia,US etc.
