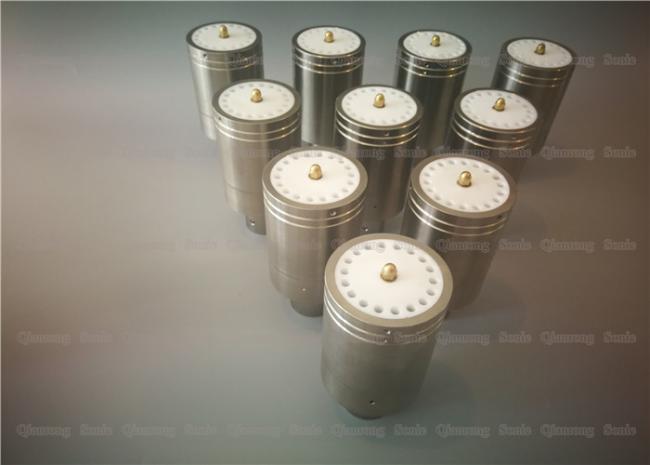

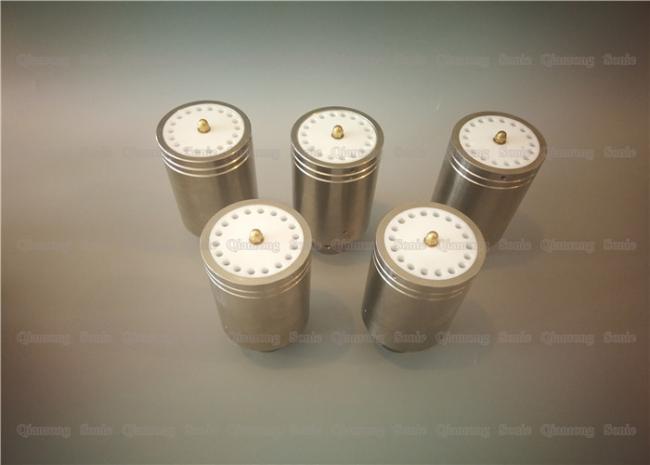

3300w Ultrasound 20Khz Replacement Branson Converter With 6pcs Pizoelectric Rings
3300w Ultrasound 20Khz Replacement Branson Converter with 6pcs Pizoelectric Rings
Description:
Branson CL20 20Khz ultrasonic transducer is made of piezoelectric ceramic chips, combined with titanium alloy accessories. According to the parameters and characteristics of foreign Branson original transducers, research, development and production from the source technology ensure the stability of transducer products and application technical parameters. It is equipped with foreign generators and die welding heads, playing a replacement role.
Ultrasonic transducer is a device that converts electrical energy into mechanical energy. The device that converts electrical energy and acoustic energy by piezoelectric effect is called piezoelectric transducer. It consists of central piezoelectric ceramic component, front and rear metal cover, prestressing. The screw, the electrode piece and the insulating tube are composed. Depending on the design of the different structures, their form and performance are also greatly affected.
Specifications:
| Model | QR-BCJ20 |
| Frequency | 20 khz |
| Output power | 3300 watt |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 18-20nf |
| Amplitude | 10 um |
| Application | Plastic welding machine |
Specification:
| Item No |
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Resonance frequency (khz)
|
Input Power | Machine |
| 1-QR-BCJ20 | 1/2-20UNF | 50 | 6 | 20 | 3300 |
Branson 2000 series |
| 2-QR-BCR20 | 1/2-20UNF | 50 | 6 | 20 | 3300 |
Branson 2000 series |
| 3-QR-B502 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 5170, 8800 |
| 4-QR-B402 | 1/2-20UNF | 40 | 4 | 20 | 900 |
Branson 8200, 8400 |
| 5-QR-B803 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 8700 |
| 6-QR-B902J | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 910W or IW+ |
| 7-QR-B4TH | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
| 8-QR-B4TR | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
| 9-QR-D20 | 1/2-20UNF | 50 | 2 | 20 | 2000 | 20khz Dukane Heavy Duty |
| 10-QR-D41S30 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260 |
| 11-QR-D41C30 | 1/2-20UNF | 50 | 4 | 20 | 2000 | |
| 12-QR-D110-3122 | 1/2-20UNF | 50 | 4 | 20 | 2000 | |
| 13-QR-D110-3168 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane Model 43B18 |
| 14-QR-D41C28 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
| 15-QR-D41C29 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
| 16-QR-R3510 | M8 | 25 | 4 | 35 | 800 | 35Khz Rinco Welders |
| 17-QR-R35 | M8*1.25 | 25 | 2 | 35 | 500 | 35khz Rico Welders |
| 18-QR-R20 | 1/2-20UNF | 50 | 2 | 20 | 1200 | |
| 19-QR-J3506 | M8 | 25 | 4 | 35 | 800 | |
| 20-QR-J3710 | M8 | 25 | 4 | 37 | 500 | CV231 |
| 21-QR-J3706-W1 | M8 | 25 | 4 | 37 | 500 | |
| 22-QR-J3706-W2 | M8 | 32 | 2 | 37 | 400 | CV3510 |
| 23-QR-T35 | M8 | 25 | 4 | 35 | 800 | 35khz Telsonic Machine |
| 24-QR-H20 | 1/2-20UNF | 50 | 6 | 20 | 3000 |
Special Items can be customized.
Manufacturing process of ultrasonic transducer:
The transducer is composed of a shell, a matching layer, a piezoelectric ceramic disk transducer, a backing, an outgoing cable and a Cymbal array receiver. Piezoelectric ceramic disk transducer is made of PZT-5 piezoelectric material with thickness direction polarization. The Cymbal array receiver consists of 8~16 Cymbal transducers, two metal rings and rubber washers.
1. Dry with hot air gun
2. First swing the electrode
3. Ceramics, electrode pieces, ceramics
4. Rear cover and screws
5. Positioning
6. Afterburner
7. Gluing
8. Place the oven
9. Test with testing machine
10. Joint grouting
11. Retest before packing
