Textile Fabric Waterproof Ultrasonic Coating
Textile Fabric Waterproof Ultrasonic Coating
Description:

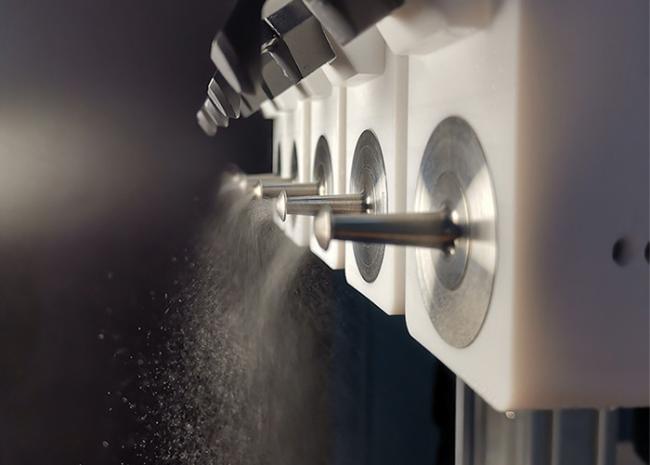

Textile fabric waterproof ultrasonic coating is used to apply advanced high-performance textile coatings in the manufacturing process. The large-scale textile coatings used include waterproof and oil resistant coatings, antibacterial and anti fouling finishing. Textile fabric waterproof ultrasonic coating sprays a uniform thin film of nano suspension or solution onto wide fabrics used in medical textiles, flooring, carpets, automobiles, or other industrial textile manufacturing applications. Ultrasonic spraying replaces inefficient immersion or rolling methods with uniform thin film ultrasonic textile coatings.
Parameters:
| Product Type | Intelligent Ultrasonic Precision Coating Machine Type FS2000-8 |
| Spray Nozzle Operating Frequency | 20-200KHz (Normally use 60100110120K) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min |
| Effective Spraying Width | 2-100mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.15MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Exercise Mode | XYZ three-axis, independently programmable |
| Control Mode | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
Advantages :
1. Modify the existing production line.
2. Accurate, reproducible, and controlled deposition coatings.
3. Very small atomized droplets with uniform particle size form a uniform nano layer film.
4. The unobstructed ultrasonic nozzle reduces maintenance downtime.
5. Significantly reduce the use of spraying materials, water, and energy (up to 80% reduction).
Unlike pressure spraying or immersion methods, soft atomization spraying with minimal rebound provides a very effective coating process.
7. Reduce the release of materials into the atmosphere, minimize overspray, and reduce or eliminate the environmental benefits of wastewater treatment.
