Ultrasonic Benchtop Vacuum Coating System Enhance Production Line
Ultrasonic Benchtop Vacuum Coating System
Description:
The desktop ultrasonic vacuum coating system adopts a sealed structure and can perform vacuum treatment on spraying. The maximum negative pressure can reach -0.058/-0.098 MPa, which can cope with some special spraying processes.

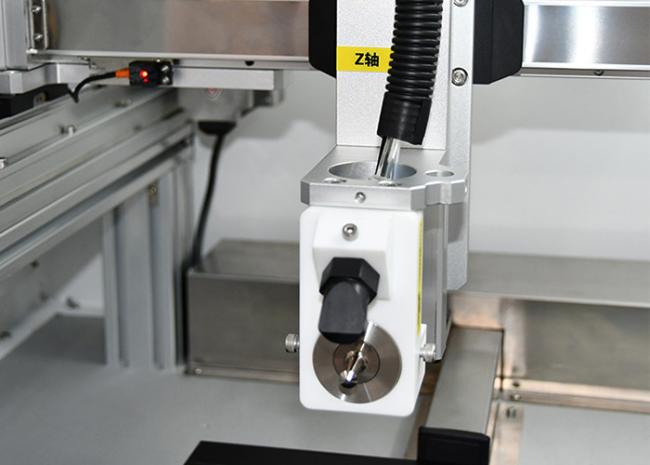

In the desktop ultrasonic vacuum coating system, all three axes of XYZ use stepper motors, and the module uses linear screw modules, greatly improving its service life. At the same time, it is equipped with double-layer tempered glass, thickened sealing rings, and reinforced hinges, which can improve sealing and vacuum degree.
Parameters:
| Product Type | Intelligent Ultrasonic Precision Coating Machine desktop Type FS620V |
| Spray Nozzle Operating Frequency | 20-200Khz |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.5-10ml/min |
| Effective Spraying Width | 2-100mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 15-40μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.05MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Exercise Mode | XYZ three-axis, independently programmable |
| Control Mode | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 20ml or 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 100W |
Advantages :
1. Ultrasonic assistance: Ultrasonic waves can enhance the adhesion and uniformity of the film layer, and improve the physical and chemical properties of the film.
2. Vacuum environment: Coating under vacuum conditions can avoid oxidation and pollution, and improve the quality of the film layer.
3. Multiple materials: can be coated with various materials such as metals, alloys, ceramics, etc., suitable for different application needs.
4. Precise control: The system is usually equipped with precise temperature and pressure control devices to make the coating process more stable.
5. Miniaturization design: Desktop design makes the equipment more flexible and suitable for use in laboratories or small production lines.
