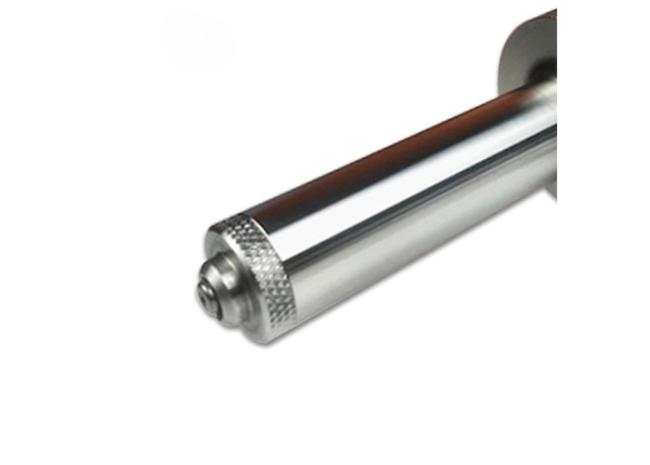

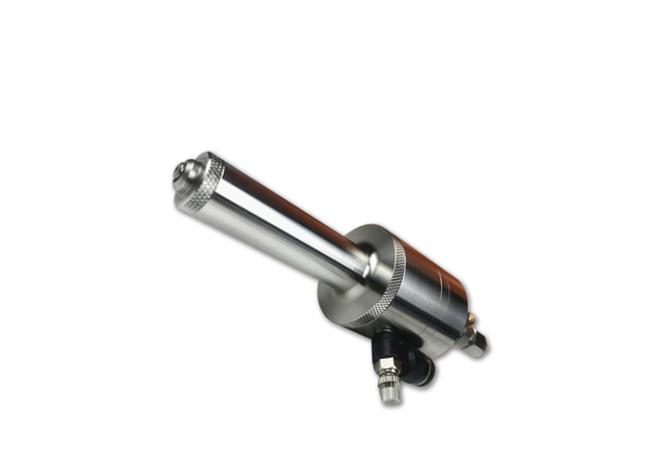

40Khz Ultrasonic Customized Long Atomizing Nozzle With CNC Digital Generator
40Khz Ultrasonic Customized Long Atomizing Nozzle With CNC Digital Generator
Description:
The 40K ultrasonic long nozzle atomizing nozzle is a device specifically designed to generate small droplets, widely used in fields such as medical, agricultural liquid supply, and environmental control. Different from the traditional pneumatic spray and high-pressure spray systems, the ultrasonic long nozzle spray nozzle has a power between a few watts and dozens of watts. It directly converts the liquid into droplets through high-frequency vibration, producing a large number of tiny 15-40 micron droplets under low power consumption.
FUNSONIC can choose different specifications and models of nozzles based on coating requirements and the substrate or shape processed by the user, such as gathering type, wide width type, wide area type, eddy current type, scattering type, long nozzle type, probing type, line spraying type, high temperature type, etc.
Parameters:
| Model | FSW-4004-X |
| Name | 40Khz Probe Ultrasonic Nozzle Atomization |
| Frequency | 40Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 1-3 |
| Spray flow(ml/min) | 0.5-10 |
| Spray height(mm) | 10-20 |
| Liquid viscosity (cps) | <15 |
| Particle size (μm) | <8 |
| Diversion pressure (Mpa) | <0.01 |
| Application | Suitable for vacuum blood collection tube spraying, syringe silicone oil spraying |
Advantages :
1. Reduce excessive spraying waste.
2. Non blocking design can reduce maintenance and downtime.
3. Highly controllable spray produces reliable, repeatable and consistent results.
4. Able to spray ultra-thin and clear lines, usually without masking.
5. The kinetic energy of soft speed spray is very small, and it will not damage or change most fragile material structures.
