100Khz Ultrasonic Probe Nozzle for Blood Vessel Extraction with 15-40μm Particle Size

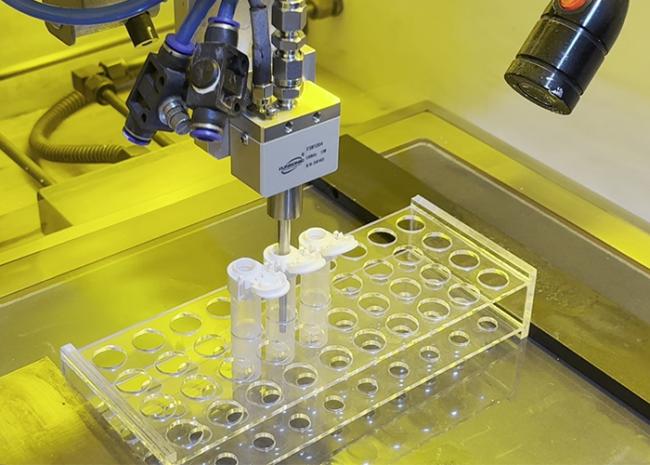

The 100Khz ultrasonic probe nozzle for blood vessel extraction represents the cutting edge of medical coating technology, focusing on high precision, deep cavity applications, and functional development. This innovative design combines high-frequency ultrasonic spraying technology with customized probing nozzles, specifically engineered for inner wall coating requirements of suction vessels, particularly slender lumens.
- Deep Cavity Direct Spraying: Traditional external spraying struggles with even coverage in slender lumens, while our probing nozzle extends directly into the lumen for inside-out or sectional spraying
- 360° Radial Atomization: Nozzle front end features circular or porous radial structure, enabling atomization direction perpendicular to the pipe wall for uniform circumferential coverage
- Adaptable Dimensions: Adjustable nozzle diameter (1-5mm) and customizable length (5-30cm) to match various products from short blood collection vessels to central venous long catheters
| Parameter | Specification |
|---|---|
| Model | FSW-1004-L |
| Name | Ultrasonic Probe Type Nozzle 10Khz |
| Frequency | 10Khz |
| Atomized Particle Size Range (μm) | 15-40 |
| Spray Width (mm) | 3-15 |
| Spray Flow (ml/min) | 0.3-5 |
| Spray Height (mm) | 1-100 |
| Liquid Viscosity (cps) | <30 |
| Particle Size (μm) | <15 |
| Diversion Pressure (Mpa) | N |
| Application | In Test Tube Spray Injector Silicone Oil Spray |
Heparin Coating: Forms uniform heparin molecular layer on blood vessel inner walls, effectively inhibiting blood contact activation and reducing thrombosis risk. Compared to traditional soaking methods, provides more uniform and stable coating with higher heparin activity retention.
New Anticoagulant Coatings: Enables precise dosage spraying of direct thrombin inhibitors (bivalirudin), Xa factor inhibitors, etc., improving anticoagulant effect controllability.
Spray coating containing silver nanoparticles, chlorhexidine, minocycline and other antibacterial agents to prevent catheter-related bloodstream infections (CRBSI). Ultrasonic atomization ensures uniform nanoparticle dispersion and prevents agglomeration.
Particularly suitable for immunocompromised patients (tumor chemotherapy, ICU) with dedicated blood collection tubes or indwelling catheters.
Sprays bioactive molecules including vascular endothelial growth factor (VEGF), fibronectin, and collagen to promote vascular endothelial cell adhesion and growth on the tube wall, reducing vascular endothelial damage from long-term retention.
Highly significant for long-term indwelling catheters in cardiovascular and nephrology applications (hemodialysis catheters).
Sprays medicine such as paclitaxel and sirolimus on hemodialysis catheters to inhibit excessive smooth muscle cell proliferation and reduce luminal stenosis risk.
Through multi-layer spraying or mixed spraying technology, enables multifunctional integration including "anticoagulation + antibacterial" and "anti-proliferation + endothelialization" to meet complex clinical requirements.
