3600w Ultrasonic Welding Transducer , Ultrasonic Cavitation Transducer For Welding System
High Power 3600w 15Khz Ultrasonic Welding Transducer for Welding System
Description:
Ultrasonic transducer is a piezoelectric ceramic that resonates at ultrasonic frequency. The piezoelectric effect of the material converts electrical signals into mechanical vibration. Ultrasonic transducer is an energy conversion device. Its function is to convert the input electric power into mechanical power (ie, ultrasonic waves) and then pass it out, while it consumes a small amount of power itself.
Specifications:
| Model | QR-7015-4BD |
| Frequency | 15 khz |
| Output power | 3600 watt |

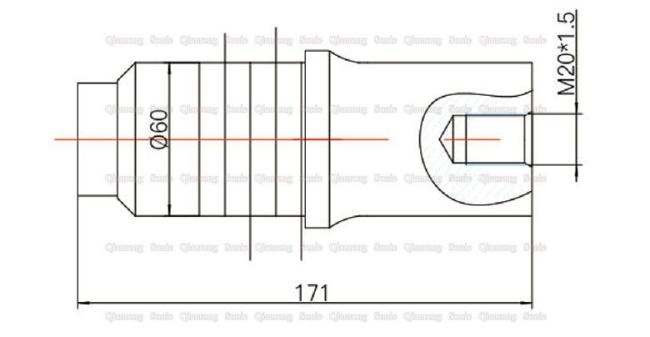

| Joint bolt | M20*1.5 |
| Ceramic disc Diameter | 70mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 12.5-19nf |
| Amplitude | 10 um |
| Application | Plastic welding machine |

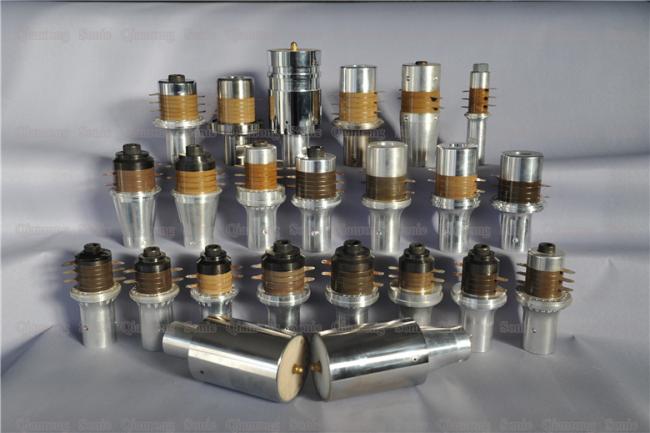

The main forms of ultrasonic transducers according to different designs are:
1. Column type (NTK type)
2. Inverted horn type (Branson type)
3 steel back cover type
4. Middle clip aluminum sheet type
Mainly used with ultrasonic plastic welding machine, ultrasonic plastic welding, ultrasonic metal welding machine, ultrasonic cleaning machine, ultrasonic sonochemical equipment.
Application:
| Ultrasonic welding machine |
All material with thermoplasticity can use Ultrasonic welding machine , it can welding the material more easy and stable.Such like plastic, fabric, ABS, nonwovens. |
| Ultrasonic cutting machine |
Ultrasonic food cutting is popular because the perfect edge. Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same. |
| Ultrasonic sewing machine |
Ultrasonic sewing can sewing the material without any cotton, and keep longer time. |
