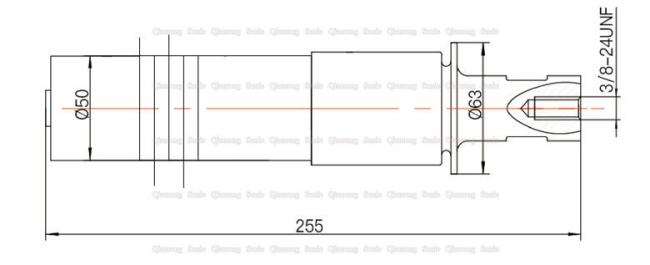

Long Column 20Khz Ultrasonic Vibration for Ultrasonic Welding Equipment

Description:

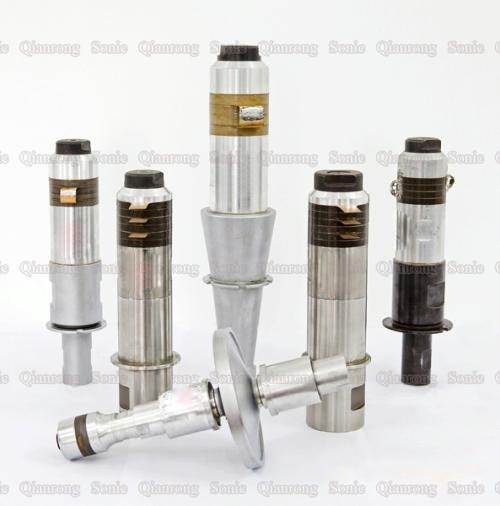

The ultrasonic vibrator is composed of an ultrasonic transducer and a horn. Ultrasonic transducer is a device that can convert high-frequency electrical energy into mechanical energy. The main function of ultrasonic horn in vibration system is to amplify the mass displacement or velocity of mechanical vibration and concentrate ultrasonic energy on a small area. It is called the ultrasonic shifting lever or the ultrasonic concentrator.

Specifications:

Role of Ultrasonic Booster:

Ultrasonic Booster (ultrasonic horns), as the name suggests, are functional components that match the amplitude of ultrasonic vibrations with ultrasonic transducers. Its main function is to change the amplitude of the transducer (generally increase), improve the vibration ratio, improve the efficiency, improve the mechanical quality factor, enhance the heat resistance, expand the temperature range, and extend the service life of the transducer. The ultrasonic transducer adjusts the load matching between the transducer and the ultrasonic tool head by installing a horn (ultrasonic horn), which reduces the resonance impedance and makes it work at the resonant frequency to improve the electro-acoustic conversion efficiency. Reduces the heat generation of the ultrasonic transducer and increases the service life.

Long Column 20Khz Ultrasonic Vibration for Ultrasonic Welding Equipment
