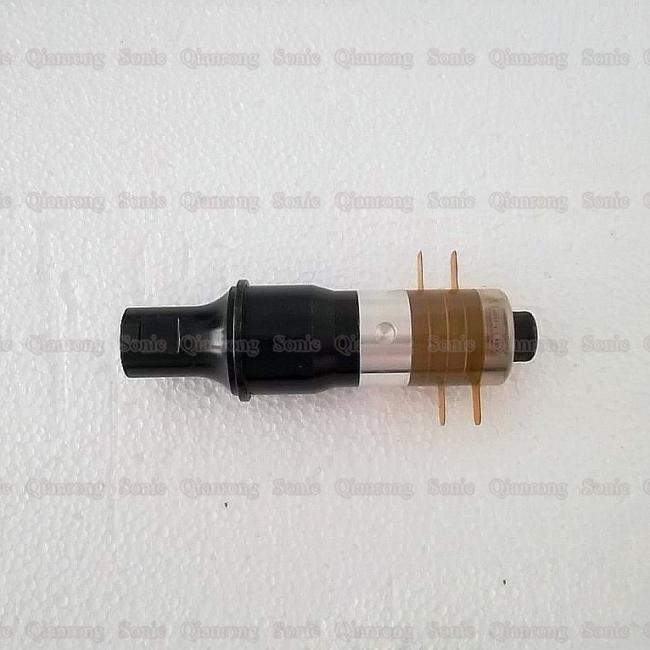

500W Cutting 40khz Ultrasonic Transducer With Booster 30mm Ceramic Disc High Stability
High Stability 40Khz 500W Ultrasonic Cutting Transducer with Booster
Description:
The ultrasonic Oscillator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The ultrasonic vibrator is a device that converts electrical energy and mechanical energy (acoustic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies the front and rear radiation cover blocks by acoustic impedance matching.

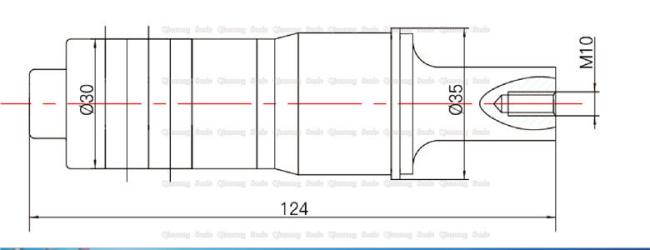

Specifications:
| Model | QR-3040-4BZ-II |
| Frequency | 40khz |
| Output power | 500 watt |
| Ceramic disc Diameter | 30mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 5.1-7.5nf |
| Application | Ultrasonic Cutting machine |
Components of the ultrasonic welder:
The ultrasonic welding machine is mainly composed of the following parts: a generator, a pneumatic part, a program control part, and a transducer part.
The main function of the generator is to convert the power supply of the power frequency 50HZ into a high-frequency (for example, 20KHZ) high-voltage electric wave by using an electronic circuit.
The main function of the pneumatic part is to complete the pressure, pressure and other pressure work needs during the processing.
The program control part controls the workflow of the entire machine to achieve consistent processing results.
The transducer part converts the high-voltage electric wave generated by the generator into mechanical vibration, which is transmitted, amplified, and reaches the machined surface.
High Stability 40Khz 500W Ultrasonic Cutting Transducer with Booster
