100w 220V Ultrasonic Metal Welding Machine Copper Wire Inlay To PVC Plate
Price:
Negotation
MOQ:
1 unit
Delivery Time:
10 workdays
Brand:
QRsonic
Product Description
Copper Wire Inlay to PVC Plate By 60Khz Ultrasonic Embedding Parts
Description:

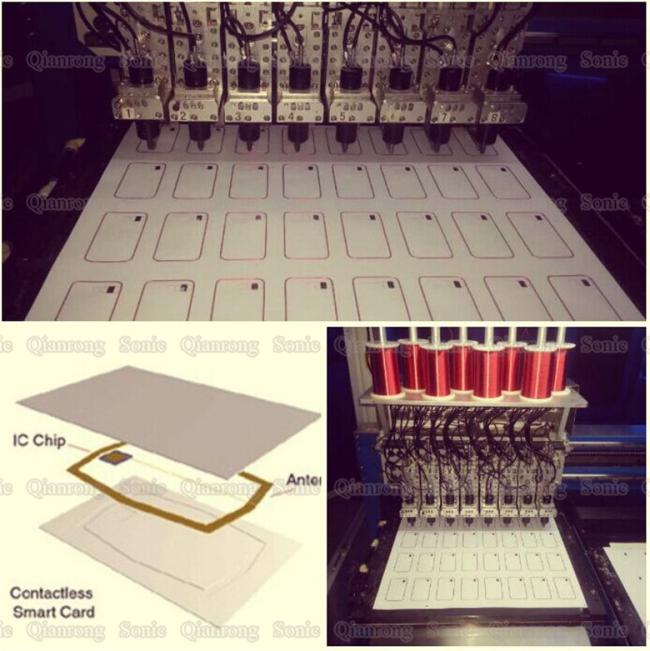

60KHZ ultrasonic intelligent IC smart card welding machine, in the production of Bank card, smart card and VIP, which need to dip tin coils and then welding. Ultrasonic IC smart card welding equipment can be made into one generator to drive 5 to 10 sets welding heads, which will easy for you to use.
Specifications:
| Type | QR-W60A |
| Frequency(KHz) | 60KHz |
| Trigger | External control or manual control |
| welder head | wear-resisting alloy steel above HRC55° |
| Threading hole | Φ0.m or Φ0.5mm |
| Power code | 2M or 5M |
| Generator |
Digital generator V6.6 or analog generator ZJS-100 |
| Generator Size |
280*320*140mm(V6.6) 280*320*150mm(ZJS-100) |
| Cover dimension | Φ25X100mm |
| Cover material | Nylon or aluminum |
| Cooling way | compressed air cooling (Φ4mm conduit) |
| Speed | 0.1-0./s |
| Thread fixed cycle | length 60000 m/s |
Competitive Advantage:
- Steady welding point, completely eradicate insufficient solder technically.
- The size of welding spots is the same, equality line, good effect on uniformity.
- The welding spot is small, wouldn’t increase the weight of the coil, easy to do lamination and encapsulation.
- To leave out the immersion tin step before doing welding, save an operator.
- After skilled in welding, much faster than the way to use searing iron to do weld.
- On the process on manufactory, there is no waste gas, waste rubbish on pollution, runs in quiet and no noise.
- To select the frequency 60KHz, one machine could drive 5-10 ultrasonic products, the speed to do welding is much faster.
- Low power consumption, to save production cost for manufactory enterprise.
Copper Wire Inlay to PVC Plate By 60Khz Ultrasonic Embedding Parts
