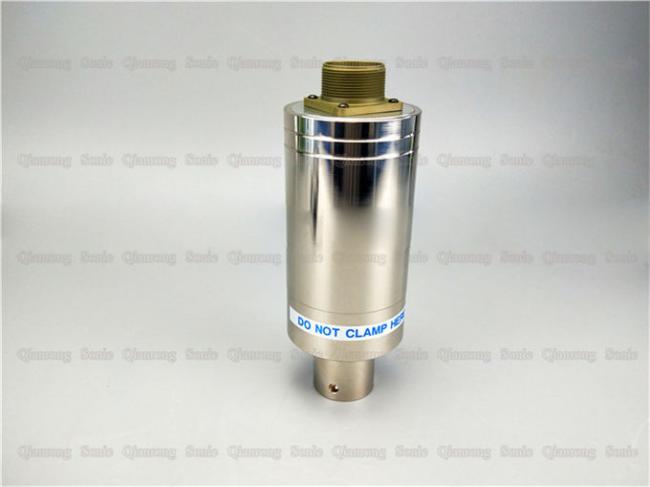

3300w 20Khz High Power Industrial Ultrasonic Converter Replacement Branson CR20

Description:

The converter is aptly named because it receives electrical energy from the power supply and converts it into mechanical vibrations. Replacement converter for Branson model CR-20 using the military-style connector, for use with 20KHz 2000, 2000X and DCX series power supplies.

The basic components of the transducer: the horn, the piezoelectric ceramic group, the electrode, the back cover, the high-strength bolt, combined into an ultrasonic transducer, and the transducer is fixed in the protective case. The horn has a certain amplitude amplification ratio.

Important main material of the transducer: the speaker head and the piezoelectric ceramic group

Transducer process: design and assembly and meet its parameter requirements to ensure material quality

Aluminum alloy transducer: its horn and protective case, electroplated or oxidized for aluminum alloy

Titanium alloy transducer: its horn is made of titanium alloy, protective shell, stainless steel

Specifications:

Ultrasonic transducer process differentiation can be divided into the following points:

1. It can be identified from the manufacturing process and appearance of the ultrasonic transducer. The transducer indirectly shows that the company pays attention to the quality of the product, and the quality of the process and appearance is naturally better. Moreover, the design process indirectly affects the quality of production.

2. It can be identified according to the process design and application data of the ultrasonic transducer, but this requirement is very understandable and experienced for the transducer data. Whether the design can be reasonably determined should be based on the selection of materials. The quality of the data indirectly affects the quality of the product. The same specifications of the origin of the data is not the same, the quality will vary greatly.

3. Parameter detection, whether the parameters of the ultrasonic transducer can be matched with the parameters of the electric box, can it reach the ideal effect.
