Heavy Duty 20Khz Ultrasonic Dukane Converter 41S30 for Welding Application​

Description:

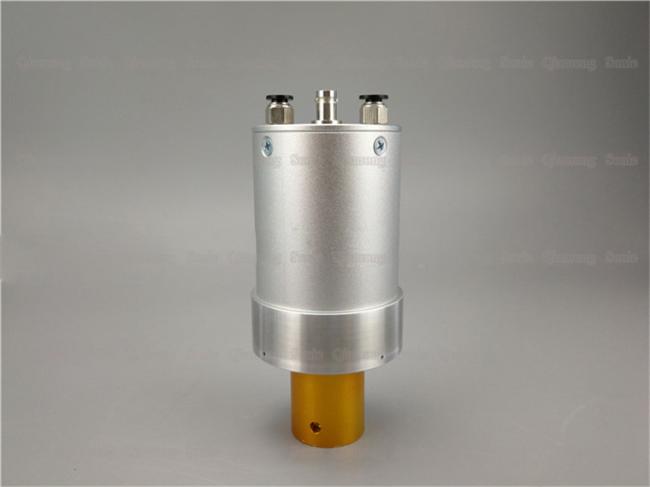

This 20 KHz Ultrasonic Dukane 41S30 Converter uses the same piezo driver assembly as 110-3122 standard heavy duty transducer but has a sealed housing and a 24" cord terminating in a mil-spec connector to facilitate use in harsh environments or where the equipment must be hosed down for cleaning. The housing has fittings for 1/4" OD poly tubing to carry dry cooling air to and from the driver assembly. Can not be mounted in a standard Dukane press. Requires the use of 200-1233-10 ultrasound cable. Output thread is 1/2-20UNF.

The transducer converts the high frequency and high voltage of the generator into mechanical vibration. It is the core component of ultrasound. The horn is an output end, and the vibration energy is sent to the modulating device through the output end and is amplified and sent to the mold. The horn itself has a certain amplitude amplification ratio.

Specifications:

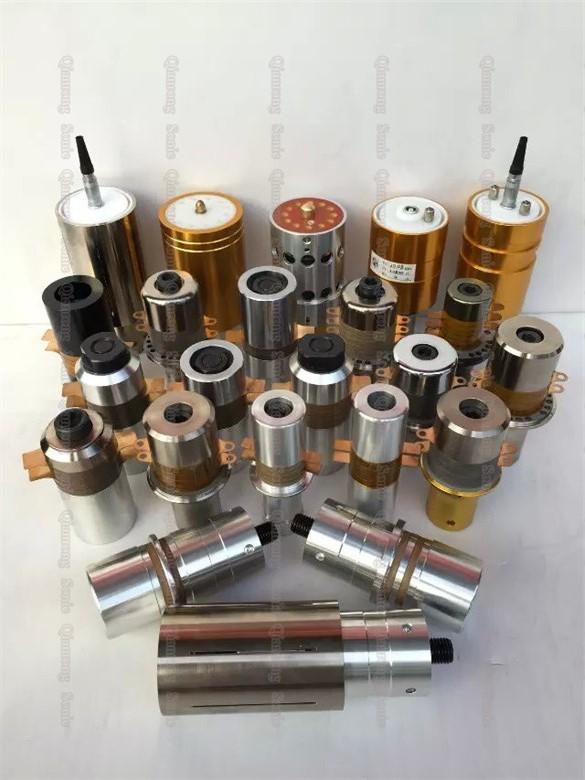

Common Questions about ultrasonic transducers:

1. The ultrasonic vibrator is damp. You can check the plug connected to the transducer with a megger. Check the insulation resistance value to judge the basic situation. Generally, the insulation resistance is greater than 5 megohms. If the insulation resistance value is not reached, the transducer is generally damp. The whole transducer (excluding the sprayed plastic case) can be placed in the oven for about 3 hours at 100 °C or used to remove moisture to the resistance value. Normal until now.

2, the transducer vibrator is fired, the ceramic material is broken, and it can be combined with the naked eye and the megohmmeter. Generally, as an emergency treatment measure, the individual damaged vibrator can be disconnected without affecting the normal use of other vibrators.

3, vibrator degumming, our transducer is made of cement, screw fastening double guarantee process, under normal circumstances.

4, stainless steel vibrating surface perforation, the general transducer can be used for 10 years at full load, the vibrating surface perforation may occur.
