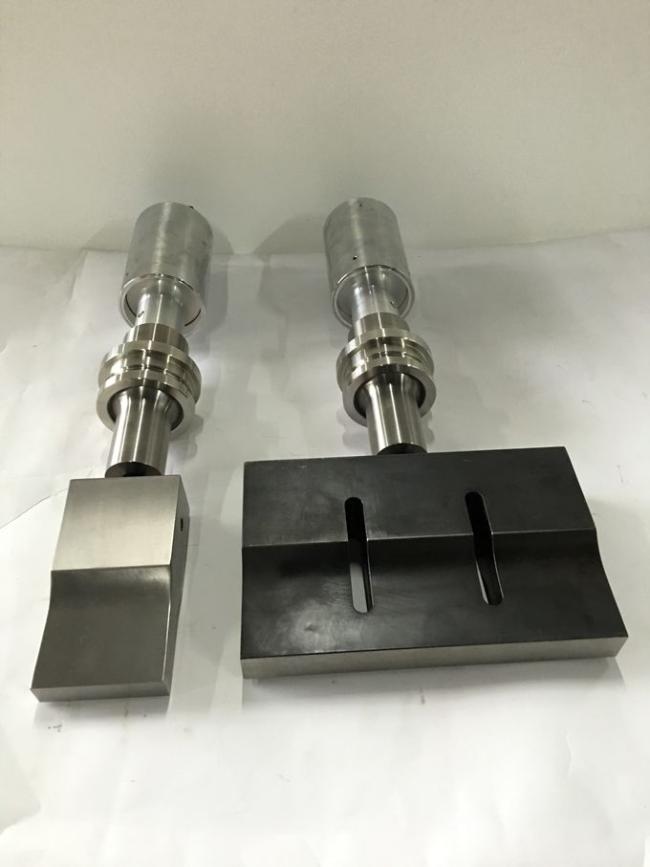

Customized Ultrasonic Welding Horn Titanium or Steel Material 15Khz Sonotrode and Generator


Description:

With ultrasonic fabric welding, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear. These profiles ensure focusing of the energy input and therefore short sealing times between 100 and 200 milliseconds. With ultrasonic sealing heat is generated at the inside of the film, not by heat input from the outside as is the case with heat sealing, for example. The tools (sonotrode and anvil) that come into direct contact with the packaging material, remain cold during the entire weld process. The support layer remains almost cold and upon termination of energy input, the heat dissipates faster to the outside due to the temperature difference between the support layer and the sealing layer so that the hot-tack resistance is significantly higher.


Specifications:

Advantages:

1. There’s no fog and spark in produce processing, won’t cause damage to fabric edge,

and also can avoid deckle edge.

2. Chang of the ultrasonic cutting die is very easy, and the design of themoulds can

also made according to customer’s requirement.

3. Without pre-heating, and continuous operation is possible.

4. Machines can be combined to one set of equipments in order to sew large width

products once, for instance, guilt cover, gingham, etc.

5. The cutting moulds (cutting die) that be made of special alloy steel which has been

treated with special heat treatment technology, so the moulds with high wear resistance

and gains a longer service life.

Application:

• Thermoplastic films (pouches and bags) Tubes, trays, and cups
• Tubes, trays, and cups
• Cardboard packaging with thermoplastic coating
• Valves and vents on films / filter materials
• Screw caps on coated cardboard packaging / films
