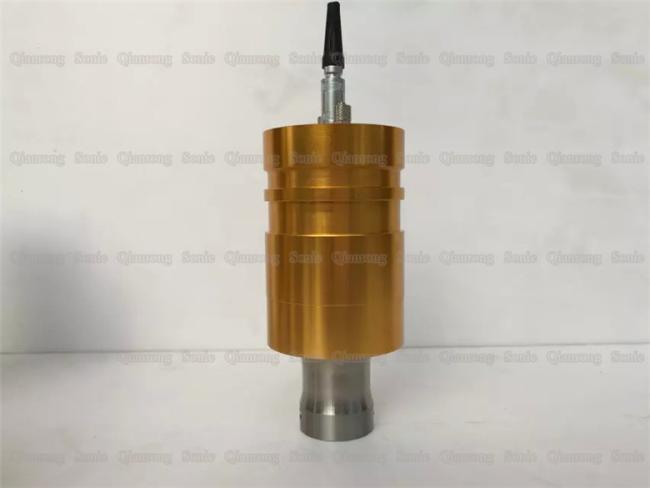

Replacement Branson 803 Ultrasonic Welding Converter For Plastic Welding Equipment
Customized Replacement Branson 803 Converter 20Khz 2000w for Plastic Welding Equipment
Description:
Replacement converter for Branson 803 Converter . For use with 187p power supply (with the 801 actuator) and the model 8700 press. The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.
Ultrasonic Converters and Ultrasonic Transducers are one in the same. Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.
Specifications:
| Model | QR-B803 |
| Frequency | 20 khz |
| Output power | 2000 watt |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 11-12nf |
| Amplitude | 10 um |
| Application | Plastic welding machine |
Specification:
| Item No |
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Resonance frequency (khz)
|
Input Power | Machine |
| 1-QR-BCJ20 | 1/2-20UNF | 50 | 6 | 20 | 3300 |
Branson 2000 series |
| 2-QR-BCR20 | 1/2-20UNF | 50 | 6 | 20 | 3300 |
Branson 2000 series |
| 3-QR-B502 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 5170, 8800 |
| 4-QR-B402 | 1/2-20UNF | 40 | 4 | 20 | 900 |
Branson 8200, 8400 |
| 5-QR-B803 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 8700 |
| 6-QR-B902J | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 910W or IW+ |
| 7-QR-B4TH | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
| 8-QR-B4TR | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
| 9-QR-D20 | 1/2-20UNF | 50 | 2 | 20 | 2000 | 20khz Dukane Heavy Duty |
| 10-QR-D41S30 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260 |
| 11-QR-D41C30 | 1/2-20UNF | 50 | 4 | 20 | 2000 | |
| 12-QR-D110-3122 | 1/2-20UNF | 50 | 4 | 20 | 2000 | |
| 13-QR-D110-3168 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane Model 43B18 |
| 14-QR-D41C28 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
| 15-QR-D41C29 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
| 16-QR-R3510 | M8 | 25 | 4 | 35 | 800 | 35Khz Rinco Welders |
| 17-QR-R35 | M8*1.25 | 25 | 2 | 35 | 500 | 35khz Rico Welders |
| 18-QR-R20 | 1/2-20UNF | 50 | 2 | 20 | 1200 | |
| 19-QR-J3506 | M8 | 25 | 4 | 35 | 800 | |
| 20-QR-J3710 | M8 | 25 | 4 | 37 | 500 | CV231 |
| 21-QR-J3706-W1 | M8 | 25 | 4 | 37 | 500 | |
| 22-QR-J3706-W2 | M8 | 32 | 2 | 37 | 400 | CV3510 |
| 23-QR-T35 | M8 | 25 | 4 | 35 | 800 | 35khz Telsonic Machine |
| 24-QR-H20 | 1/2-20UNF | 50 | 6 | 20 | 3000 |
