High Frequency 40Khz 200w Ultrasonic Welding Transducer With Grey Piezoelectric Ceramics
High Frequency 40Khz 200w Ultrasonic Welding Transducer with Grey Piezoelectric Ceramics
Description:

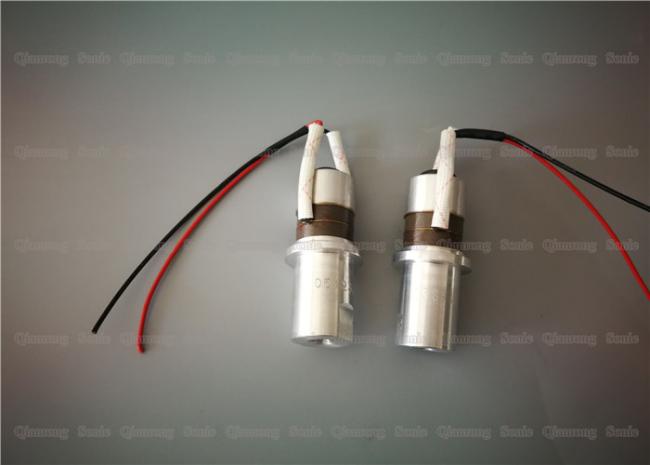

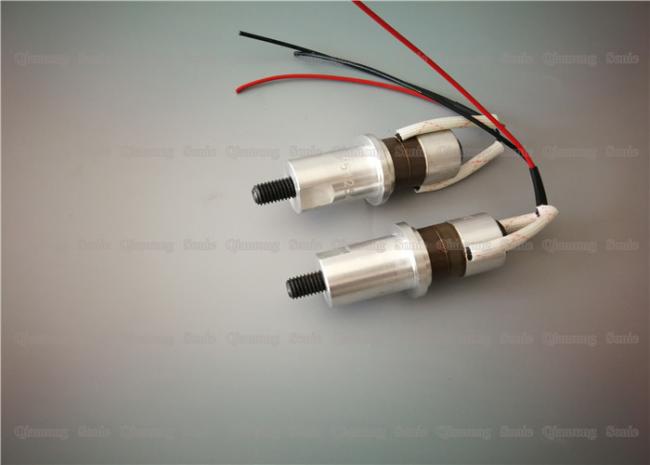

The transducer is composed of a central piezoelectric ceramic component, a front and rear metal cover, a pre-stressed screw, an electrode sheet, and an insulating tube. Ultrasonic transducers are used in almost all ultrasonic equipment. Qianrong ultrasonic equipment is the source of ultrasonic titanium alloy transducers and core components.
Specifications:
| Model | QR-2040-2BD |
| Frequency | 40khz |
| Output power | 200 watt |
| Joint bolt | M8 |
| Ceramic disc Diameter | 20mm |
| Qty of ceramic discs | 2pcs |
| Capacitance | 1.5-1.7nf |
| Amplitude | 4 um |
| Application | Plastic welding machine |
Parameters:
|
The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application) |
||||||||||
|
Item No.
|
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Resonance frequency (khz)
|
Resistance (Ω)
|
Capacitance |
Input power (W)
|
Max. Amplitude (um)
|
||
| Yellow | Grey | Black | ||||||||
| 7015-4BD | M20 X 1.5 | 70 | 4 | 15 | 15 | 12500-14000 | / | 17000-19000 | 2600 | 11 |
| 6015-4BD | M18 X 1.5 | 60 | 4 | 15 | 15 | 9000-10000 | 10000-11000 | / | 2200 | 11 |
| 6015-4FD | M20 X 1.5 | 60 | 4 | 15 | 15 | 9000-10000 | / | / | 2600 | 11 |
| 6015-6BD | 1/2-20UNF | 60 | 6 | 15 | 15 | 19000-20500 | / | 23000-25000 | 2600 | 11 |
| 5015-6BD | 1/2-20UNF | 50 | 6 | 15 | 15 | 17000-19000 | / | 23000-25000 | 2000 | 11 |
| 5020-4BD | 1/2-20UNF | 50 | 4 | 20 | 15 | 11000-12000 | 12000-13500 | 14500-16000 | 1500 | 8 |
| 5020-6BD | 1/2-20UNF | 50 | 6 | 20 | 15 | 19000-21000 | / | 22500-25000 | 2000 | 10 |
| 4020-6BD | 1/2-20UNF | 40 | 6 | 20 | 15 | 13500-15000 | / | / | 1500 | 10 |
| 4020-4BD | 1/2-20UNF | 40 | 4 | 20 | 15 | 8500-9300/ 9500-10500 | 10000-11000 | 10500-11500 | 900 | 8 |
| 3535-2BD | M8 X 1 | 35 | 2 | 35 | 25 | / | / | 4500-5000 | 600 | 9 |
| 3535-4BD | M8 X 1 | 35 | 4 | 35 | 20 | 6600-7400 | / | 9000-10000 | 1000 | 4 |
| 2535-4FD | M8 | 25 | 4 | 35 | 25 | 3900-4300 | / | / | 500 | 4 |
| 2535-4LD | M8 | 25 | 4 | 35 | 25 | 3900-4600 | / | / | 500 | 4 |
| 2535-4QD | M8*1 | 25 | 4 | 35 | 25 | / | 6500-7500 | / | 500 | 4 |
| 2540-4BD | M8 | 25 | 4 | 40 | 30 | 4500-5300 | / | / | 500 | 3 |
| 2040-2BD | M8 | 20 | 2 | 40 | 40 | 1100-1300 | 1150-1350 | / | 300 | 2 |
