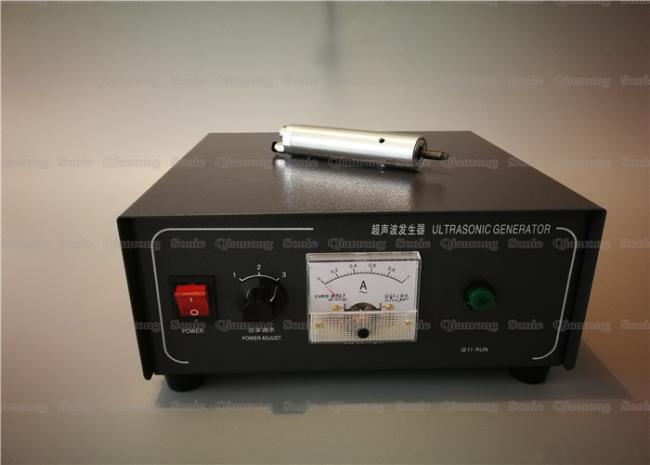

High Frequency 60Khz Ultrasonic Wire Embedder Weding Machine for ID Card Production

Description:

Ultrasonic wire embedder, also known as ultrasonic wire implanter, is an ultrasonic device specially used for ID smart card production, and is one of the important applications of ultrasonic welding in recent years. Hangzhou Qianrong Automation Equipment Co., Ltd. is a national high-tech enterprise specializing in the manufacture and research and development of ultrasonic equipment. It has many years of experience in ultrasonic application and cutting, and can provide solutions for buried wire welding of various ID smart cards.

Main role:

It is used for the implantation of metal wires and chips of ID smart cards, that is, the wires or chips are soldered to a plastic sheet.

Working principle:

The working principle of the ultrasonic wire buried device is to convert the 50/60 Hz current into high-frequency alternating current through an ultrasonic generator, and then input the electrical energy into the ultrasonic transducer to generate high-frequency mechanical motion. Then the mechanical motion can be changed through a set The amplitude modulator device is transmitted to the welding head, and the welding head transmits the received vibration energy to the joint of the workpiece to be welded. In this area, the vibration energy is converted into thermal energy by friction, melting the plastic, and shortly conducting the wire. Buried in plastic sheet.

Way of working:

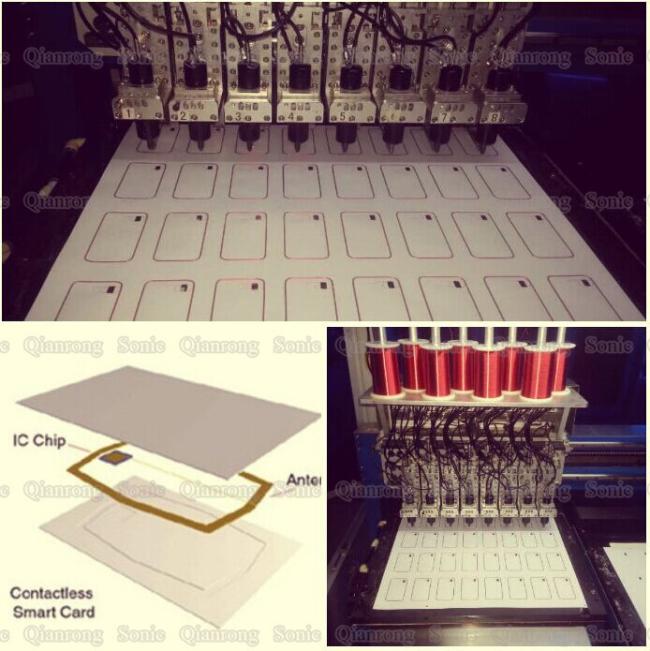

Insert the wire to be implanted into the hole in the head of the wire implanter, place the head (welding surface) of the wire implanter on a plastic sheet (as shown in the figure below), start the ultrasonic equipment, and conduct the wiring and buried The line is completed during the routing. When the line is completed, the entire welding process is also completed at the same time.

Specifications:

Advantages:

1. Intelligent frequency search, prolong the life of buried head 2-3 times.

2. No soldering is required before soldering, reducing process and cost.

3. The matching power is strong, and the buried head and the ultrasonic generator can be interchanged at will.

4. Multi-point power control, super high speed buried wire, good consistency.

5. Solve the problem of equipment heating when buried, can work for a long time.

6. Standardized design, can directly replace imported products, environmental protection and safety.
