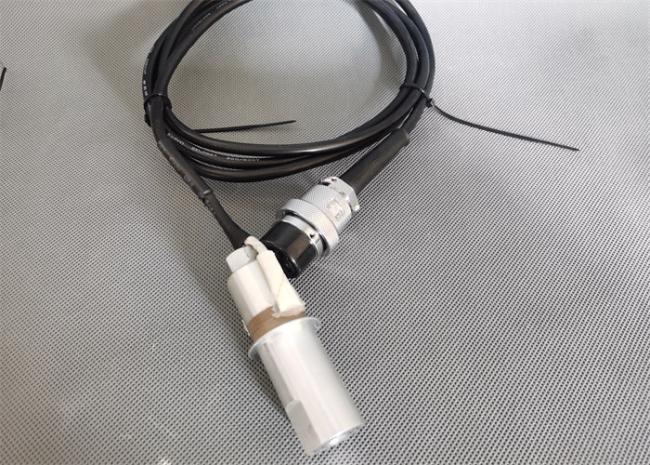

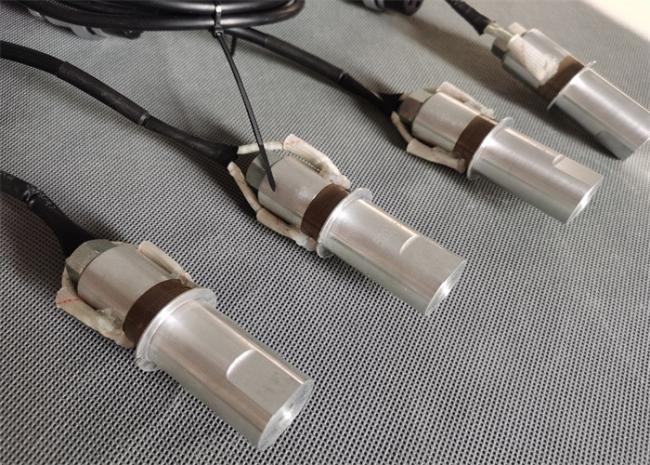

2pcs Piezoelectric Ceramics Ultrasonic Transducer 28Khz For Spot Plastic Welder
28Khz Ultrasonic Welding Transducer for Spot Plastic Welder with 2pcs Piezoelectric Ceramics
Description:
28Khz ultrasonic welding transducer uses high-quality, high-consistency piezoelectric ceramics, professional structure design, stable operation, high stability, high consistency, high load test, non-hot, high amplitude, low impedance, stable wave, Characteristics of constant waves.
Ultrasonic is widely used in production, such as welding, cutting, slitting, and plastic welding of various non-woven/chemical fiber cloths. However, due to the difference between ultrasonic and high-frequency principles, the applicable raw materials and applications are also applicable.
Specifications:
| Model | QR-3028-2BZ |
| Frequency | 28khz |
| Output power | 400 watt |
| Joint bolt | 3/8-24UNF |
| Ceramic disc Diameter | 30mm |
| Qty of ceramic discs | 2pcs |
| Capacitance | 2.8-3.8nf |
| Amplitude | 8 um |
| Application | Plastic welding machine |
Parameters:
| The columnar type NTK TYPE | ||||||||
|
Item No.
|
Connect screw
|
Ceramic dia (mm)
|
Qty of Ceramic (pc) |
Frequency (khz)
|
Capacitance |
power (W)
|
||
| Yellow | Grey | Black | ||||||
| 5025-2BZ | M12 X 1 | 50 | 2 | 25 | 5000-5600 | 7000-8000 | 500 | |
| 3828-2BZ | 1/2-20UNF | 38 | 2 | 28 | 3800-4300 | 500 | ||
| 3828-4BZ | 1/2-20UNF | 38 | 4 | 28 | 7600-8500 | 10500-12000 | 800 | |
| 3028-2BZ | 3/8-24UNF | 30 | 2 | 28 | 2700-3100 | 3400-3800 | 400 | |
| 3028-4BZ | M10*1 | 30 | 4 | 28 | 6000-7000 | 700 | ||
| 2528-4FZ | M8 X 1 | 25 | 4 | 28 | 3900-4300 | 400 | ||
| 2528-2FZ | M8 X 1 | 25 | 2 | 28 | 1950-2200 | 2200-2500 | 300 | |
| 3030-4BZ | M10 | 30 | 4 | 30 | 6200-6900 | 700 | ||
| 3035-2FZ | 3/8-24UNF | 30 | 2 | 35 | 2700-3100 | 500 | ||
| 3035-4BZ | M10 X 1 | 30 | 4 | 35 | 5000-6200 | 800 | ||
| 2535-2FZ | M8 X 1 | 25 | 2 | 35 | 1900-2200 | 400 | ||
| 2540-2BZ | 3/8-24UNF | 25 | 2 | 40 | 2000-2300 | 500 | ||
| 3040-4BZ | M10 | 30 | 4 | 40 | 5500-6200 | 1000 | ||
| 3050-4BZ | M8 | 30 | 4 | 50 | 5500-6200 | 600 | ||
| 1560-2BZ | M6 X 0.75 | 15 | 2 | 60 | 700-800 | 100 | ||
Ultrasonic transducer manufacturing process:
The transducer consists of a shell, a matching layer, a piezoelectric ceramic disc transducer, a backing, a lead-out cable and a Cymbal array receiver. The piezoelectric ceramic disc transducer is made of PZT-5 piezoelectric material polarized in the thickness direction, and the Cymbal array receiver is composed of 8 to 16 Cymbal transducers, two metal rings and rubber gaskets.
1. Dry with hot air gun
2. Swing the electrode first
3. Ceramics, electrodes, ceramics
4. Back cover, screws
5. Positioning
6. Afterburner
7. Glue
8. Put the oven
9. Test with a test machine
10. Filling the seam
11. Test again before packing
28Khz Ultrasonic Welding Transducer for Spot Plastic Welder with 2pcs Piezoelectric Ceramics
