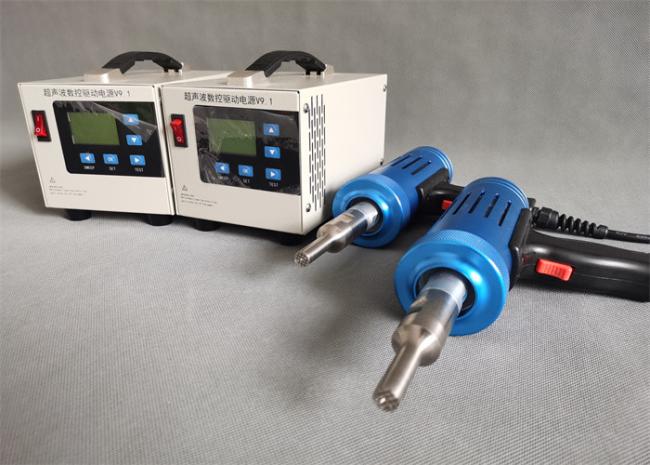

28Khz Gun Type Ultrasonic Hand Welder With Digital Power Driver
28Khz Gun Type Ultrasonic Hand Welder with Digital Power Driver
Description:
28Khz ultrasonic plastic spot welding machine has compact design, beautiful appearance, stable work and convenient operation. It is mainly used in welding and riveting of thermoplastic products, as well as inlaying and edge pressing process between metal parts and plastic parts, completely replacing the organic melting point paste process.

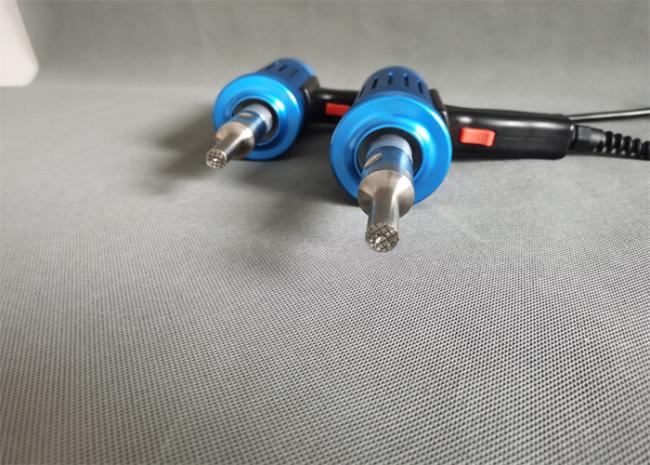

The 28K ultrasonic spot welder can be used not only for welding hard thermoplastics, but also for processing fabrics and films. The hand-held ultrasonic welding torch can be replaced with different ultrasonic welding heads according to the size of the riveting point and the welding requirements of the welded product. Fast and convenient, the cost is much lower than the special ultrasonic welding machine for automobile door panels, which is convenient to meet the needs of different customers.
Specifications:
| Item No | QR-W28DY |
| Power | 800W |
| Generator | Digital generator |
| Frequency | 28KHZ |
| Voltage | 220V or 110V |
| welding head | Titanium |
| Gross weight | 6Kg |
Parameters:
| Classification | Pistol Type | Pen Type | ||||||
Frequency | 35 | 28 | 28 | 28 | 20 | 28 | 28 | 28 |
| Power(w) | 500 | 300 | 700 | 800 | 900 | 300 | 700 | 800 |
| Welding Head | <10mm | <10mm | <10mm | <12mm | <12mm | <10mm | <10mm | <12mm |
| Dia of shell | 51mm | 51mm | 51mm | 64mm | 64mm | 40mm | 45mm | 60mm |
| The handles size | 100mm*45mm*32mm | — | — | — | ||||
| Weight | 0.5kg | 0.5kg | 0.5kg | 1.2kg | 1.2kg | 0.4kg | 0.5kg | 1.0kg |
| Digital Generator | ● | - | ● | ● | ● | ● | - | ● |
| Analog Generator | ● | ● | ● | ● | ● | ● | ● | ● |
| Application | ABS, HIPS,PMMA,MPPO | PVC,PP,PE | Aldehyde-resin, PC | PC,PSU,PA | Nylon, PE,PBT | PVC,PP,PE | Aldehyde-resin, PC | PC, |
| Welding Type | Rivet Welding, Spot Welding, Embossed Welding | |||||||
Application range:
Electronic appliances, auto parts, clothing packaging, textile industry, environmental protection industry, medical equipment, toy industry, communication equipment and other industries.
Plastic hardware riveting, spot welding, embossing, folder positioning and other processes, decoration, ribbon flower spot welding, riveting, etc.
