fencing Green BTO-18 razor barbed wire From Reputable
Price:
USD70
MOQ:
10 PCS
Delivery Time:
7 days
Brand:
SHUXIN
Product Description

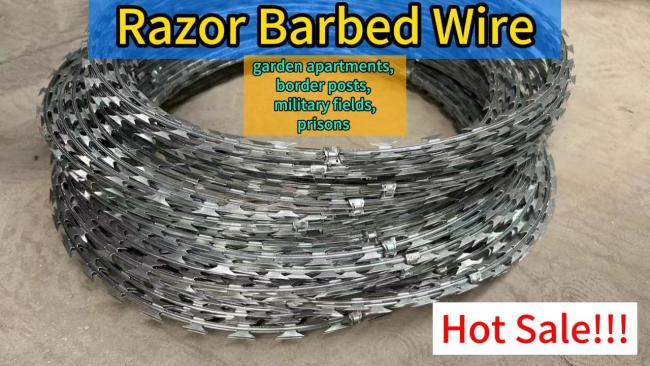

Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire.
It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders,
with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult.
| Model | Plate Thickness mm |
Core wire Diameter mm | Barb Length mm |
Barb Width Mm |
Barb Spacing mm |
| BTO-10 | 0 .5 +- 0.05 mm | 2.5mm | 10mm | 13mm | 26mm |
| BTO-12 | 0 .5 +- 0.05 mm | 2.5mm | 12mm | 15mm | 26mm |
| BTO-18 | 0 .5 +- 0.05 mm | 2.5mm | 18mm | 15mm | 38mm |
| BTO-22 | 0 .5 +- 0.05 mm | 2.5mm | 22mm | 15mm | 38mm |
| BTO-28 | 0 .5 +- 0.05 mm | 2.5mm | 28mm | 15mm | 53mm |
| BTO-30 | 0 .5 +- 0.05 mm | 2.5mm | 30mm | 21mm | 54mm |
| BTO-60 | 0 .6 +- 0.05 mm | 2.5mm | 60mm | 32mm | 102mm |
| BOT-65 | 0 .3 +- 0.05 mm | 2.5mm | 65mm | 22mm | 102mm |
| Coil OD (mm) |
NO. of Loops | NO. of Clips | The Utmost Length (m) |
Barb Type | Notes |
| 450 mm | 33 | - | 7-8 m | CBT60 CBT65 | Single Coil |
| 500 mm | 56 | - | 12-13 m | CBT60 CBT65 | Single Coil |
| 700 mm | 56 | - | 13-14 m | CBT60 CBT65 | Single Coil |
| 960 mm | 56 | - | 14-15 m | CBT60 CBT65 | Single Coil |
| 450 mm | 56 | 3 clips | 8-9 m | BTO12 18 22 28 30 | Cross Type |
| 500 mm | 56 | 3 clips | 9-10 m | BTO12 18 22 28 30 | Cross Type |
| 600 mm | 56 | 3 clips | 10-11 m | BTO12 18 22 28 30 | Cross Type |
| 600 mm | 56 | 5 clips | 8-10 m | BTO12 18 22 28 30 | Cross Type |
| 700 mm | 56 | 5 clips | 10-12 m | BTO12 18 22 28 30 | Cross Type |
| 800 mm | 56 | 5 clips | 11-13 m | BTO12 18 22 28 30 | Cross Type |
| 900 mm | 56 | 5 clips | 12-14 m | BTO12 18 22 28 30 | Cross Type |
| 960 mm | 56 | 5 clips | 13-15 m | BTO12 18 22 28 30 | Cross Type |
| 980 mm | 56 | 5 clips | 14-16m | BTO12 18 22 28 30 | Cross Type |
