350g Of Zinc Aluminum Material Defensive Barriers Weld Gabion Wall With Sand / Green Geotextile
350g of Zinc&Aluminum Material Defensive Barriers Weld Gabion Wall With Sand/Green Geotextile

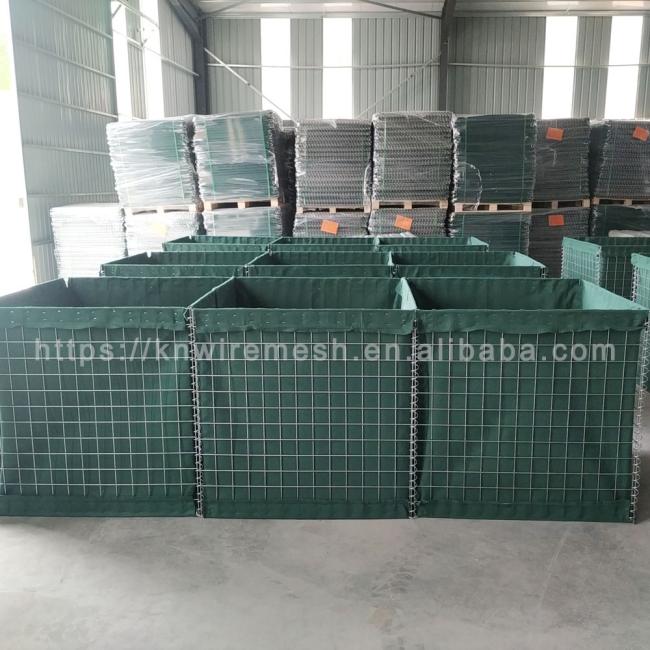

Defensive Barrier Bastion Sand Wall is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated steel mesh.
Known as a Gabion Barrier Bastion Sand Wall , it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand , preferably with a front-end loader , to make a barrier resistant to small arms fire and shrapnel.
Defensive barrier specifications:
1.Introduction:
Hot dip galvanized gabion boxes with geotextile are also called fortresses, protective walls, sand cages, welded gabion boxes, etc. This is a multi-cellular system made of galvanized welded mesh and lined with non-woven fabric. The provided connection extension and connection unit may be used. It is easy to install and requires minimal manpower and commonly available equipment. After expansion, it is filled with sand and stones, and then welded with gabion barriers like defense walls or bunkers. It is widely used for defensive barriers and flood control.
2. Working principle:
It is made of galvanized welded mesh plate, spring belt and other accessories, which can be filled with sand, soil, cement and stone, and can be used alone or connected by some defense barriers.
3. Quality assurance:
Our factory has been verified by ISO Group, the world's leading inspection company. Our products strictly follow ISO9001 and CE certification. Our products comply with BS EN 10244-2:2009 and BS EN 1208-2:2012
Hesco Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| KN-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| KN-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| KN-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| KN-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| KN-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| KN-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| KN-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| KN-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| KN-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| KN-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5+5=20 cells |
| KN-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| KN-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| KN-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Advantages of Defensive Barrier:
1. Removable
It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.
2. Anticorrosion
The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.
3. Easy installation
When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.
4. Rapid displacement
When you want to use it in another place, just move it and it can be used many times.
5. Easy to repair
If a part is damaged, throw it away and connect it with a new one.
Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
