Temporary & Recyclable Easy-Install Hot-Dipped Galvanized Cross-Type Razor Wire Fence for Border / Factory Protection
Temporary & Recyclable Easy-Install Hot-Dipped Galvanized Cross-Type Razor Wire Fence for Border / Factory Protection
Designed for flexible security demands, our Cross-Type Razor Wire Fence redefines efficiency in border and factory perimeter protection, integrating temporary deployment flexibility, environmental sustainability, and robust deterrence into one optimized solution. Whether for emergency border reinforcement, temporary factory construction site security, or seasonal facility perimeter management, this fence eliminates the limitations of traditional fixed security barriers, offering rapid setup, reusable value, and reliable corrosion resistance—making it a versatile choice for both short-term and semi-permanent security needs.
Core Advantages: Temporary, Recyclable & Easy-Install
- Rapid Easy Installation for Temporary Needs: Adopting a modular cross-type blade structure paired with lightweight galvanized steel brackets, the fence requires no complex welding or concrete foundation. A 2-person team can complete the setup of a 10-meter section in just 30 minutes—equipped with pre-drilled holes and quick-connect fasteners, it can be assembled directly on flat ground, gravel, or grassland. The flexible connection design allows on-site adjustment of fence length and height (customizable from 1.2m to 2.5m) to adapt to irregular borders or factory compound contours, significantly reducing deployment time for emergency security scenarios.
- 100% Recyclable & Cost-Saving: Constructed from high-purity low-carbon steel (recyclable rate ≥95%), the entire fence—including cross-type razor blades, brackets, and support poles—can be fully disassembled and recycled after use, avoiding waste of resources and reducing environmental impact. Compared with disposable temporary barriers, it can be reused 5-8 times under normal maintenance, lowering long-term security costs for projects with repeated temporary security demands (such as infrastructure construction, large-scale events, or temporary border checkpoints).
- Hot-Dipped Galvanization for Durable Protection: Every component of the fence undergoes a strict hot-dip galvanization process (zinc coating thickness 60-100μm, compliant with EN ISO 1461 standard), forming a dense zinc layer that effectively resists rust, corrosion, and chemical erosion from industrial pollutants. Even in harsh environments such as coastal salt spray, industrial workshops with high humidity, or cold border regions with frequent freezing and thawing, it maintains structural integrity without paint peeling, ensuring a service life of up to 15 years for semi-permanent use and stable performance during repeated temporary deployments.
Specification:
| Reference Number |
Thickness (mm) |
Wire Dia (mm) |
Bard Length (mm) |
Bard Width (mm) |
Bard Distance (mm) |
| BTO-10 | 0.5±0.05 | 2.5±0.05 | 10±1 | 13± | 16±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.05 | 12±1 | 15±1 | 26±1 |
| BTO-16 | 0.5±0.05 | 2.5-2.8 | 16±1 | 19±1 | 30±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.05 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.05 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5±0.05 | 28±1 | 15±1 | 53+1 |
| BTO-30 | 0.5±0.05 | 2.5±0.05 | 30±1 | 21±1 | 54±1 |
| CBT-60 | 0.5±0.05 | 2.5±0.05 | 60±1 | 32±1 | 100±1 |
| CBT-65 | 0.5±0.05 | 2.5±0.05 | 65±1 | 21±1 | 100±2 |
Razor Barbed Wire Coil and Unit Loops
| Outside Diameter | No.of Loops | Standard Length Per Coil | Type | Notes |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type |
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type |
Types of Razor Wire:
Razor Wire Fence
Concertina Razor Coils
Razor Wire Flat Wrap Coils
Welded Razor Wire
Razor Ribbon
Razor Wire Mobile Security Barrier
Galvanized Razor Wire
Straight Line Razor Wire Fence
Stainless Steel Razor Wire
Razor Wire Concertina
Double Concertina Razor Wire

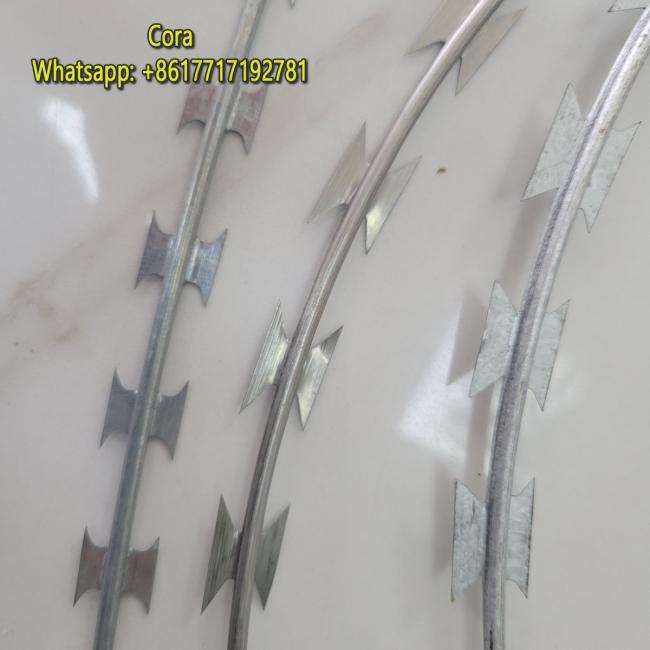

Details of Razor Wire:
Workshop:
Above is our No.3 workshop, producing BTO-16, Packed with wooden box. daily output is 1/40HQ.
Packing & Delivery:
1. sheet is packed by pallet or strapped into bundle.
2. sheet in carton or wooden case.
3. rolls in water-proof paper+plastic film.
Razor Wire and Perimeter Security:
Detection at the perimeter enables security personnel to quickly assess and respond to security events while intruders remain delayed or caught up in the razor wire. Any attempt to cut, bypass or disturb the razor wire is immediately detected.
