High Quality Electric Galvanized Razor Barbed Wire BTO22 450mmx10kg Per Roll

Price Negotiable
Price: USD12.68-USD32.98
MOQ: 100 rolls
Delivery Time: 7-15 days
Brand: KN
Product Description

High Quality Electric Galvanized Razor Barbed Wire BTO22 450mmx10kg Per Roll



Product description

 Razor barbed wire scurity fencing

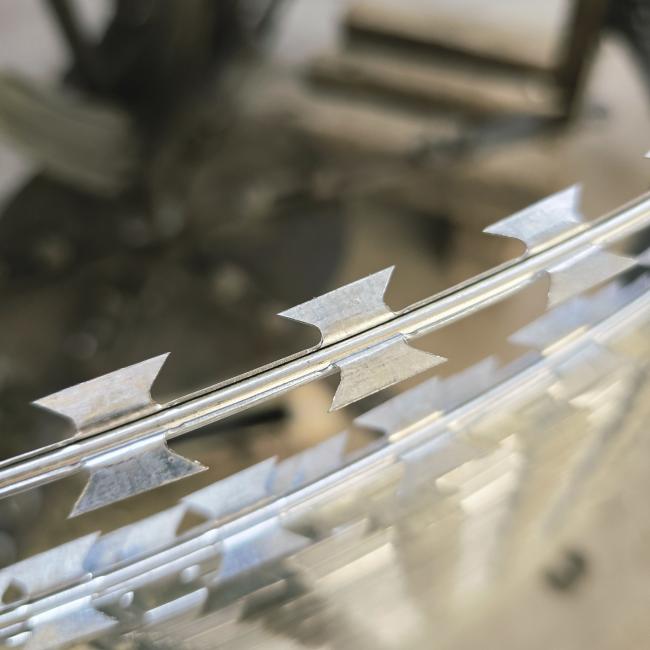

Razor barbed wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
Razor type barbed wire is widely used in high-grade residence district, warehouses and other sites requiring severe fencing and security. Razor wire can be classified into straight type razor wire, concertina coils, crossed type and flat type according to the installation models.



Product Details

Razor Blade Style and Specs
Reference Number

Blade Thickness
Wire Dia
Blade Length
Blade Width
Blade Spacing
BTO-10

0.5±0.05
2.5±0.1
10±1
13±1
26±1
BTO-12

0.5±0.05
2.5±0.1
12±1
15±1
26±1
BTO-18

0.5±0.05
2.5±0.1
18±1
15±1
33±1
BTO-22

0.5±0.05
2.5±0.1
22±1
15±1
34±1
BTO-28

0.5±0.05
2.5
28
15
45±1
BTO-30

0.5±0.05
2.5
30
18
45±1
CBT-60

0.6±0.05
2.5±0.1
60±2
32±1
100±2
CBT-65

0.6±0.05
2.5±0.1
65±2
21±1
100±2



Barbed Tape Wire Specification
Outside Diameter
No. of Loops
Standard Length per Coil
Type
Notes
500mm
56
12-13M
CBT-60.65
Single coil
700mm
56
13-14M
CBT-60.65
Single coil
960mm
56
14-15M
CBT-60.65
Single coil
450mm
56
8-9M (3 CLIPS)
BTO-10.12.18.22.28.30
Cross type
500mm
56
9-10M (3 CLIPS)
BTO-10.12.18.22.28.30
Cross type
600mm
56
10-11M (3 CLIPS)
BTO-10.12.18.22.28.30
Cross type
600mm
56
8-10M (5 CLIPS)
BTO-10.12.18.22.28.30
Cross type
700mm
56
10-12M (5 CLIPS)
BTO-10.12.18.22.28.30
Cross type
800mm
56
11-13M (5 CLIPS)
BTO-10.12.18.22.28.30
Cross type
900mm
56
12-14M (5 CLIPS)
BTO-10.12.18.22.28.30
Cross type
960mm
56
13-15M (5 CLIPS)
BTO-10.12.18.22.28.30
Cross type
980mm
56
14-16M (5 CLIPS)
BTO-10.12.18.22.28.30
Cross type

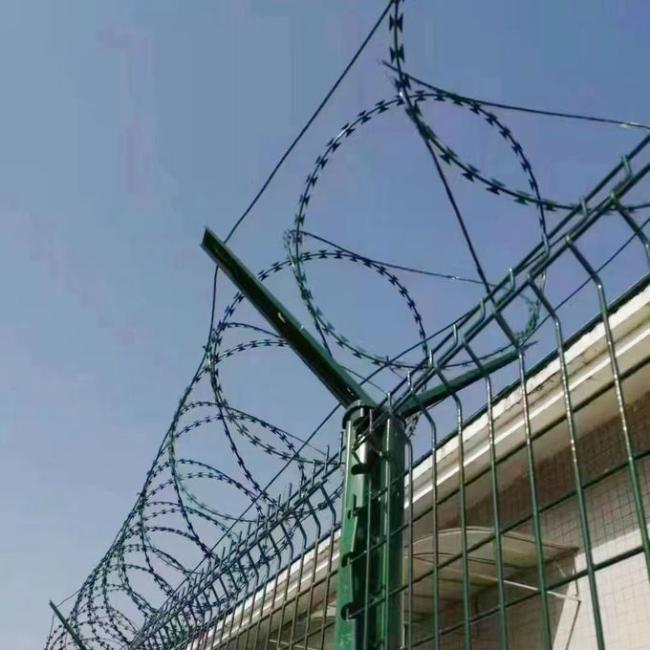

Security Fencing System Type One: Anti-Climb Razor Mesh High Security Fence
Razor Mesh Security Fence is a multi-functional, high security mesh fencing made of straight-blade netting welded together.
Anti-climb fence with flat panel of crossed razor wire welded mesh in diamond or oblong square holes. The razor mesh fencing is virtually impossible to climb or cut without standard tools. The diamond pattern or square pattern combined with vertical opposing barbs act as an entrapment while retaining a neat appearance. The welded blade barrier is designed for commercial, government and safety uses.
Materials of razor mesh:
Stainless steel, hot dipped galvanized steel or pvc coated steel.
The benefits of Welded Razor Wire Fence:
Anti-climb;
High-strength steel core very difficult to cut off;
Powerful security fence barriers with neat appearance;
Packed in rolls easy for transport;
Extremely simple to install.
Types according to surface treatment:
1. Stainless Steel High Security Fence Panels
2. Hot Dipped Galvanised Anti-Climb Fence
3. Plastic Powder Coated Steel Mesh Security Fencing
Common Sizes:
Welded Diamond Mesh size : 75x150mm, 100x200mm, 150x300mm
Oblique Square mesh size : 150mm, 200mm, 300mm
The rectangular mesh size: 100mmx150mm
Uses:
Razor Mesh is installed as high security fencing throughout the world at airports, water reservoirs, warehouses,
electrical sub-stations, border fences, oil depots, electrical sub-stations and factories.
