MIL1 1.37m High Welded Gabion Hesco Barrier For Property Protection Retaining Wall
MIL1 1.37m High Welded Gabion Hesco Barrier for Property Protection Retaining Wall
Many military fortifications prefer to combine different specifications for enhanced protection. For example, the MIL10 can be used as the base, with MIL3 stacked on top to create perimeter walls over 3 meters high. Installing a layer of razor wire at the top turns the structure into an extremely difficult-to-breach defensive barrier.
In addition, MIL7 and MIL2 are widely used to build temporary military command posts, observation towers, field ammunition depots, personnel shelters, and quick-deployment defensive positions.
These versatile structures are also extensively applied in flood control, emergency disaster relief, temporary retaining walls, sandbag barriers, property protection, border security, industrial site safety isolation, and high-security perimeter protection for factories, warehouses, power stations, and residential compounds. Their quick assembly, easy transportation, and wide availability of filling materials make them ideal for both military and civilian scenarios.
Source Factory
1. Flood Defense for Communities
2. Coastal & Riverbank Erosion Control
3. Construction & Industrial Applications
| Attribute | Value |
|---|---|
| Raw Material | Hot dipped galvanized wire |
| Geotextile | 250 - 300 g/㎡ Standard |
| Mesh Diameter | 4.0 / 5.0mm Diameter |
| Aperture | 3" (76.2mm×76.2mm) |
| Color | Military Green, sand color |
| Accessories | Staple, Joint Pin |
| Brand | KESCO, not HESCO |
| Sample | Free sample available |
| Stock | Some types in stock - welcome to inquire |
| Model | Height | Width | Length |
|---|---|---|---|
| KN-1 | 54" (1.37M) | 42" (1.06M) | 32'9" (10M) |
| KN-2 | 24" (0.61M) | 24" (0.61M) | 4' (1.22M) |
| NK-3 | 39" (1.00M) | 39" (1.00M) | 32'9" (10M) |
| KN-4 | 39" (1.00M) | 60" (1.52M) | 32'9" (10M) |
| KN-5 | 24" (0.61M) | 24" (0.61M) | 10' (3.05M) |
| KN-6 | 66" (1.68M) | 24" (0.61M) | 10' (3.05M) |
| KN-7 | 87" (2.21M) | 84" (2.13M) | 91' (27.74M) |
| KN-8 | 54" (1.37M) | 48" (1.22M) | 32'9" (10M) |
| KN-9 | 39" (1.00M) | 30" (0.76M) | 30' (9.14M) |
| KN-10 | 87" (2.21M) | 60" (1.52M) | 100' (32.50M) |
| KN-11 | 48" (1.22M) | 12" (0.30M) | 4' (1.22M) |
| KN-12 | 84" (2.13M) | 42" (1.06M) | 108' (33M) |
| KN-19 | 108" (2.74M) | 42" (1.06M) | 10'5" (3.18M) |

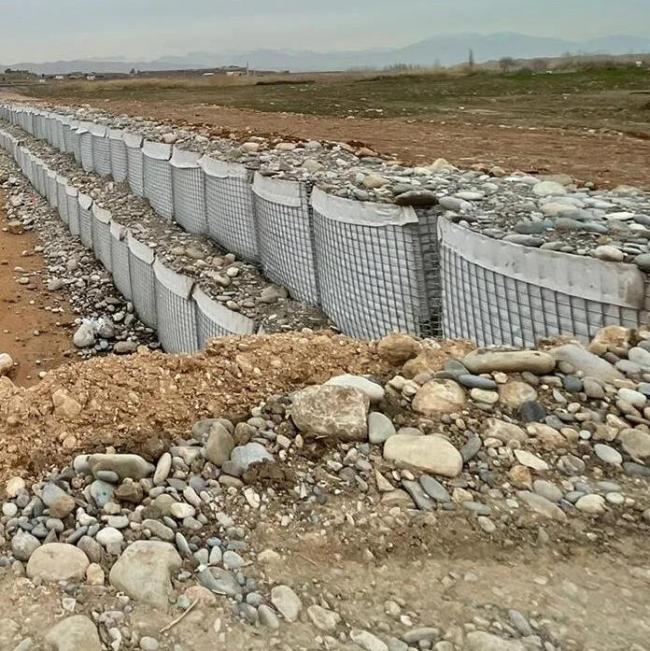

- Flood Prevention Barrier: From simple perimeter walls to complex base infrastructure, our products provide rapid expeditionary protection
![Hesco barrier used as flood prevention barrier]()
- Permanent or Semi-permanent Dike: Effective barriers against flooding in both temporary and permanent installations
![Military defensive barriers serving as flood control dikes]()
- Flood Control Retaining Wall: When filled with sand and earth, these gabion boxes form sturdy retaining walls against floodwaters
![Gabion boxes used as flood control retaining walls]()
- Coastal Protection: Increasingly used in seaside areas as protective fencing against erosion
![Hesco barriers protecting coastal areas]()
- Existing Structure Protection: Safeguards buildings and infrastructure from environmental damage
- Coastal Erosion Control: Effective solution for stabilizing shorelines and preventing land loss
Constructed from galvanized, rust-protected alloy wire mesh with a guaranteed minimum lifespan of 5 years in exposed environments and 10 years when stored properly.
Mesh panels connected by spring joints allow 360° rotation, enabling compact storage and transportation while maintaining structural integrity.
Combination of heavy-duty mesh panels with thick geotextile fabric creates exceptionally strong protective barriers for various applications.
