High Security Razor Barbed Wire Galvanized Steel Fencing Solution With Dedicated Clips And Excellent Defense Capability

Price Negotiable
Price: Negotiated
MOQ: 28 Tons
Delivery Time: 7 Working Days
Brand: KN
Product Description

High Security Razor Barbed Wire Galvanized Steel Fencing Solution With Dedicated Clips And Excellent Defense Capability

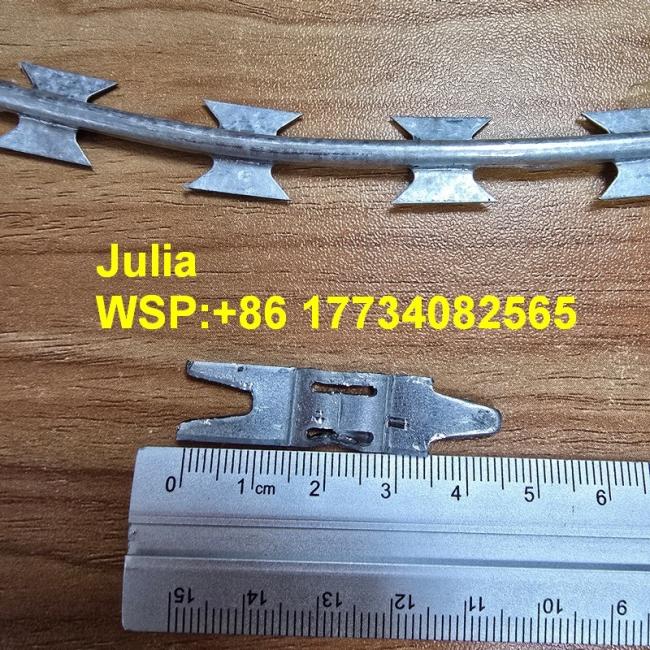

This galvanized razor wire is equipped with dedicated galvanized mounting clips.


Fabricated from premium hot-dip galvanized steel or stainless steel plate, it is a modern perimeter security fencing solution with outstanding defense capability and robust fencing strength.

Razor barbed wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
Razor type barbed wire is widely used in high-grade residence district, warehouses and other sites requiring severe fencing and security. Razor wire can be classified into straight type razor wire, concertina coils, crossed type and flat type according to the installation models.



Specification
Razor Wire Size Specifications
Peference Model
Thickness (mm)
Wire Diameter (mm)
Barb Length
(mm)
Bard Width
(mm)
Bard Spacing
(mm)
BTO-12
0.5±0.05
2.5±0.1
12±1
15±1
26±1
BTO-15
0.5±0.05
2.5±0.1
18±1
15±1
33±1
BTO-22
0.5±0.05
2.5±0.1
02±1
15±1
34±1
BTO-28
0.5±0.05
2.5±0.1
28
15
45±1
CBT-30
0.5±0.05
2.5±0.1
30
18
45±1
CBT-60
0.6±0.05
2.5±0.1
60±2
32±1
100±1
CBT-65
0.6±0.05
2.5±0.1
65±2
21±1
100±1
Outside Diameter
No. of Loops
Standard Length per Coil
Razor Type
Notes
450mm
33
7M-8M
CBT-60, 65
Single Coil
500mm
56
12M-13M
CBT-60, 65
Single Coil
700mm
56
13M-14M
CBT-60, 65
Single Coil
960mm
56
14M-15M
CBT-60, 65
Single Coil
450mm
56
8M-9M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
500mm
56
9M-10M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
600mm
56
10M-11M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
600mm
56
8M-10M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
700mm
56
10M-12M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
800mm
56
11M-13M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
900mm
56
12M-14M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
960mm
56
13M-15M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
980mm
56
14M-16M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
  • Rapid Easy Installation for Temporary Needs: Adopting a modular cross-type blade structure paired with lightweight galvanized steel brackets, the fence requires no complex welding or concrete foundation. A 2-person team can complete the setup of a 10-meter section in just 30 minutes—equipped with pre-drilled holes and quick-connect fasteners, it can be assembled directly on flat ground, gravel, or grassland. The flexible connection design allows on-site adjustment of fence length and height (customizable from 1.2m to 2.5m) to adapt to irregular borders or factory compound contours, significantly reducing deployment time for emergency security scenarios.
  • 100% Recyclable & Cost-Saving: Constructed from high-purity low-carbon steel (recyclable rate ≥95%), the entire fence—including cross-type razor blades, brackets, and support poles—can be fully disassembled and recycled after use, avoiding waste of resources and reducing environmental impact. Compared with disposable temporary barriers, it can be reused 5-8 times under normal maintenance, lowering long-term security costs for projects with repeated temporary security demands (such as infrastructure construction, large-scale events, or temporary border checkpoints).
  • Hot-Dipped Galvanization for Durable Protection: Every component of the fence undergoes a strict hot-dip galvanization process (zinc coating thickness 60-100μm, compliant with EN ISO 1461 standard), forming a dense zinc layer that effectively resists rust, corrosion, and chemical erosion from industrial pollutants. Even in harsh environments such as coastal salt spray, industrial workshops with high humidity, or cold border regions with frequent freezing and thawing, it maintains structural integrity without paint peeling, ensuring a service life of up to 15 years for semi-permanent use and stable performance during repeated temporary deployments.



Types of Razor Wire:
Razor Wire Fence
Concertina Razor Coils
Razor Wire Flat Wrap Coils
Welded Razor Wire
Razor Ribbon
Razor Wire Mobile Security Barrier
Galvanized Razor Wire
Straight Line Razor Wire Fence
Stainless Steel Razor Wire
Razor Wire Concertina
Double Concertina Razor Wire



Details of Razor Wire:



Workshop:



Above is our No.3 workshop, producing BTO-16, Packed with wooden box. daily output is 1/40HQ.



Packing & Delivery:



1. sheet is packed by pallet or strapped into bundle.
2. sheet in carton or wooden case.
3. rolls in water-proof paper+plastic film.



Razor Wire and Perimeter Security:
Detection at the perimeter enables security personnel to quickly assess and respond to security events while intruders remain delayed or caught up in the razor wire. Any attempt to cut, bypass or disturb the razor wire is immediately detected.
