Defensive Barrier Welded Mesh Wall For River Flood Protection And Flood Control
Protection Wall Anti Blast Wall Welded Wire Mesh Hesco Barrier Wall
Defensive Barrier Welded Mesh Wall is a modular flood defense system made of high-strength welded steel mesh, designed for rapid deployment along riverbanks, flood-prone areas, and emergency flood control lines. It can be filled with sand, gravel, or concrete to form a stable, water-resistant barrier.
Technical Specifications
| Item | Specification |
|---|---|
| Material | Low carbon steel wire, hot-dip galvanized |
| Wire Diameter | 3.0mm – 5.0mm |
| Mesh Size | 50×50mm, 75×75mm, 100×100mm |
| Panel Size | 1m×1m, 1.5m×1m, 2m×1m (customizable) |
| Surface Treatment | Hot-dip galvanized / PVC coated |
| Filling Material | Sand, gravel, concrete |
| Application | River flood, flood control, emergency barrier |
Quick Details
| Unit Type |
Height (M) |
Width (M) |
Length (M) |
Internal Cells |
| SX-mil1 | 1.37 | 1.06 | 10 | 9 |
| SX-mil2 | 0.61 | 0.61 | 1.22 | 2 |
| SX-mil3 | 1.0 | 1.0 | 10 | 10 |
| SX-mil4 | 1.0 | 1.52 | 10 | 6 |
| SX-mil5 | 0.61 | 0.61 | 3.05 | 5 |
| SX-mil6 | 1.68 | 0.61 | 3.05 | 5 |
| SX-mil7 | 2.21 | 2.13 | 27.74 | 4 |
| SX-mil8 | 1.37 | 1.22 | 10 | 9 |
| SX-mil9 | 1.0 | 0.76 | 9.14 | 9 |
| SX-mil10 | 2.21 | 1.52 | 30.5 | 5 |
Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
Application Scenarios
-

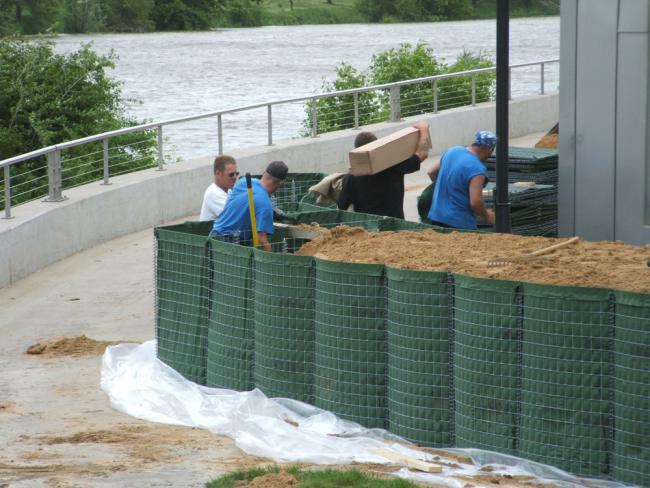

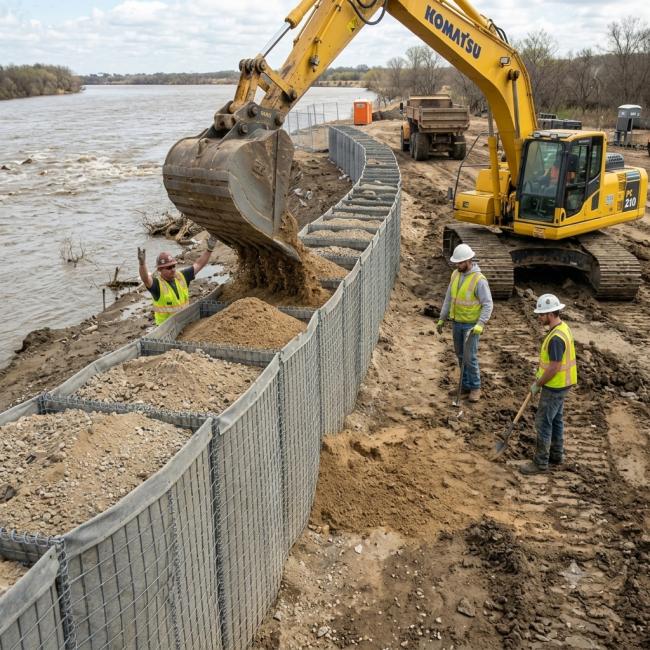

Riverbank flood protection
-
Emergency flood control
-
Coastal defense
-
Temporary water diversion
-
Disaster relief

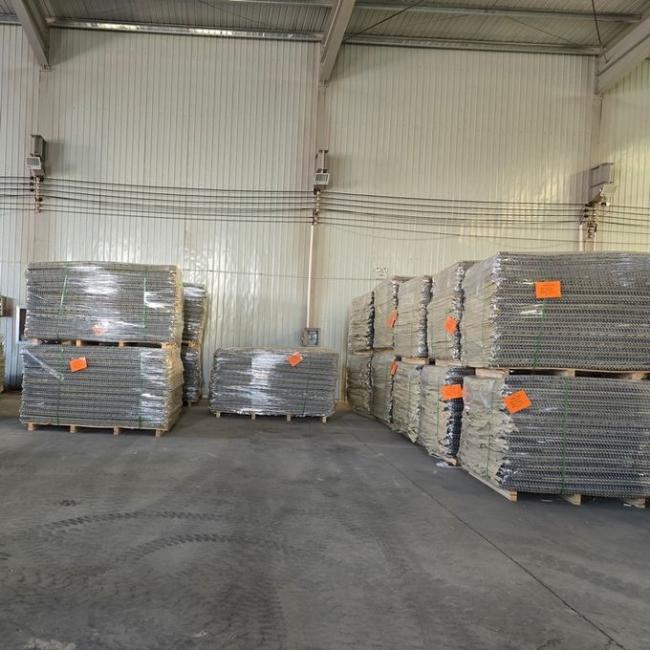

Packing & Delivery
-
Panels packed on pallet, wrapped with shrink film
-
Accessories in carton or woven bag
-
OEM / ODM available
