Military Defensive Barrier | Galvanized Welded Gabion Bastion Wall

1. Product Overview

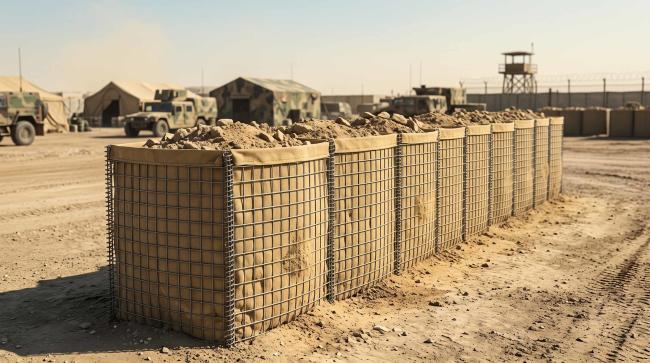

The Military Defensive Barrier (also known as a Welded Gabion Bastion or Defensive Concertainer) is a multi-cellular, rapidly deployable perimeter security and fortification system. Manufactured from heavy-duty galvanized or Galfan-coated welded wire mesh and lined with UV-stabilized non-woven polypropylene geotextile, this cellular structure is engineered to be filled with locally available soil, sand, gravel, or crushed rock.

Originally pioneered to replace labor-intensive traditional sandbags, the bastion wall delivers superior blast mitigation, ballistic resistance, and vehicle impact prevention. Delivered flat-packed on pallets for maximum transport efficiency, units unfold and link seamlessly using heavy-duty spiral coils and joining pins to construct robust defensive barriers of virtually any length and height.

2. Technical Specifications (Reference HESCO Standard Series)

Core Material & Mechanical Properties

• Wire Material: High-tensile low-carbon steel wire (BS EN 10218-2 / ASTM A856)

• Surface Treatment: Hot-Dipped Galvanized (≥ 240–300 g/m²) or Galfan Coated (95% Zinc + 5% Aluminum, offering 2–3× higher corrosion resistance)

• Wire Diameter: 4.0 mm, 4.5 mm, 5.0 mm (standard 8 Gauge / 6 Gauge)

• Mesh Aperture (Grid Size): 76.2 mm × 76.2 mm (3" × 3")

• Geotextile Liner: Heavy-duty, UV-stabilized, non-woven polypropylene (250 g/m² – 350 g/m²)

• Geotextile Colors: Military Sand / Desert Tan, Military Green, Earth Grey

• Jointing Accessories: High-tensile helical spiral coils and vertical connecting pins

Standard Dimensions (HESCO MIL Series Compatible)

Custom sizes, specialized configurations (e.g., recoverable/emergency release versions), and OEM production are available upon request.

3. Product Advantages & Key Features

• Rapid Deployment & Labor Efficiency:

  • One single unit equivalent to over 1,500 standard sandbags can be positioned and filled by two soldiers and a front-end loader in under 20 minutes, slashing installation time by over 90%.

• Superior Ballistic & Explosive Protection:

  • When filled with compacted soil or gravel, the structure dissipates blast energy and effectively shields against small arms fire, rounds, artillery fragments, and vehicle-borne improvised explosive devices (VBIEDs).

• Exceptional Structural Durability:

  • Galfan/Hot-dip galvanized wire resists rust in extreme environments, including desert sandstorms, humid coastal areas, and sub-zero weather. The geotextile liner prevents fill washout even under torrential rains.

• Modular & Multi-Tier Stacking:

  • Units connect horizontally using joining pins and can be securely stacked vertically (following the 2:1 height-to-base ratio rule) to create tall security bastions, watchtowers, and parapets.

• Cost-Effective Logistics:

  • Units collapse flat onto standard pallets. A single 40ft HQ container can transport hundreds of linear meters of defensive barriers.

• Locally Sourced Infill Compatibility:

  • No expensive or pre-mixed aggregate required; standard sand, river pebbles, gravel, or site spoil can be used immediately.

4. Applications

• Military & Defense Fortifications:

  • Forward Operating Bases (FOBs) and tactical outpost perimeters.

  • Sentry posts, guard towers, and observation positions.

  • Ammunition depots, fuel storage protection, and weapon revetments.

  • Armored vehicle and aircraft parking bays.

• Border Security & Critical Infrastructure:

  • Checkpoints, border control barriers, and access denial gates.

  • Protection of critical energy facilities (power substations, refineries, pipelines, chemical plants).

  • Embassies, government buildings, and VIP facility security.

• Emergency Flood Control & Civil Protection:

  • Rapid flood barrier construction against storm surges and river breaches.

  • Soil retention, landslide prevention, and erosion control along dikes and riverbanks.
