Galvanized Welded HESCO Barriers SMIL 19 Zinc - Aluminum Coated Finishing
Heavily Galvanized MIL19 HESCO Barriers for Flood Prevention Barrier
Anping Shuxin Wire Mesh Company had been exported to SX 10 Sand Filled Defensive Barriers to Morocco for Coastal Erosion Control. Using Joint Pin connect the cells into a whole, filled with sand or earth in it to standard against the flood. easy to operate no traing and fast layout, just open it and fill sand by machine.
Brief Introduction of SX 19 Gabion HESCO Barriers:
1. Wire Diameter: 5.00mm Zinc- Aluminum Wire
2. Mesh Size: 3" (76.2x76.2mm)
3. Panel Size: 2.13 x 1.06 M

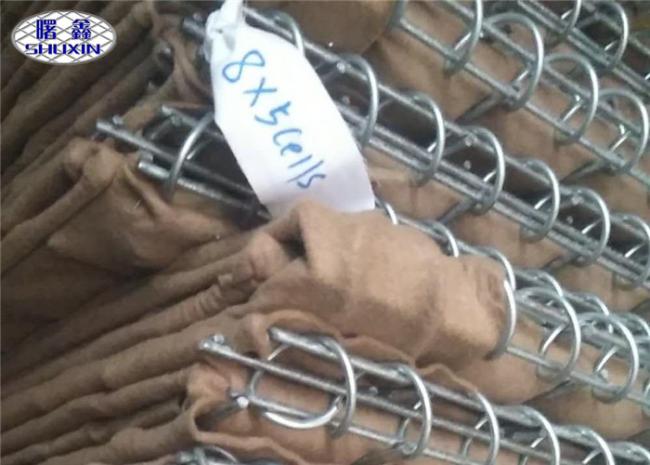

4. Diameter of Spring: 4.0mm, used for connecting and collapsible
5. Geotextile: UV Protection Geotextile, the weight is abou 300 g/㎡( Standard)
6. Color: Military Green
7. Total Size: 2.13 x 1.06 x 33.00 M
8. No. of Cells: 30 Cells (6x5 cells)
9. Finish: Zinc- Aluminum Coated
10. Package: Packed in pallet, with Plastic Film or Shrink Film
The Technical Specifications from SX 1 to SX 19
| Welded Military Gabion Basket Wall | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
Other Application for Military HESCO Barriers:
1. Perimeter Security Barrier and Defence Gabion Wall
It can connected into a whole use Joint Pin to form a Perimeter Security Barrier and Defence Wall.
2. Temporary Fort and Command Post
Because of Military Defensive Barriers can divide into many small cells, can change the direction esaily to form a rectangular Temporary Fort and Command Post.
3. Observation Points and Border Checkpoints
It can also stacked together to form Observation Points and Border Checkpoints.
4. Flood Prevention Barrier
Filled with sand or earth to standard against the Water to protection.
The Advantages of Welded Defensive HESCO Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.
2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Easy to repair
As a protection Wall to prevent Bullets and shells, there would be small part damage, Just use one piece of welded wire mesh panel insert into the earth and cover the damage part, it can also work long time.
