Zinc Coated Gabion Wall Cages High Security Corrosion Resistance

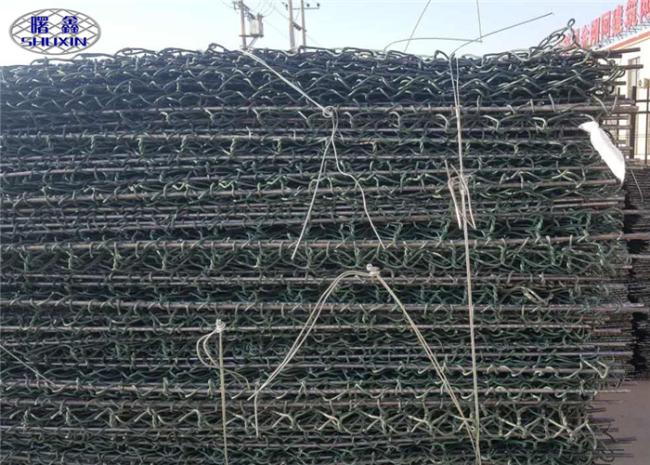

High Security Zinc Coated Gabion Wire Mesh Cage for Retaining Wall
Gabion Wire Mesh Cage is a double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units, and filled with stone at the project site to form flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.
Gabion Mattress-a double-twisted wire mesh container uniformly partitioned into internal cells with relatively small height in relation to other dimensions, having smaller mesh openings than the mesh used for gabions; revet mattresses are generally used for riverbank protection and channel linings.
Wire Thickness Specification:
| Mesh type | 8*10cm | 6*8cm | ||
| Characteristics | Metallic coated | PVC coated | Metallic coated | PVC coated |
| Mesh openings | 83mm x 114mm | 83mm x 114mm | 64mm x 83mm | 64mm x 83mm |
| Mesh wire | 2.7mm (0.106 in.) | 3.05mm( 0.120 in.) | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) |
| Selvage wire | 3.4mm (0.134 in.) | 3.8mm (0.150 in.) | 2.7mm (0.105 in.) | 2.7mm (0.105 in.) |
| Lacing wire | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) | 2.2mm(0.087 in.) |
Size of Gabion Box:
| Opening(mm) |
Wire Diameter(Metal Wire) mm |
Wire Diameter (PVC Coated) Inner/Outside(mm) |
Strands |
| 60X80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
| 80X100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 80X120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 100X120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 100X150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 120X150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
Size of Gabion Mattress:
| Size | Notes | |||
| Length(mm) | Width(mm) | Height(mm) | Unit | volume(m³) |
| 2.00 | 1.00 | 0.30 | 1 | 0.60 |
| 3.00 | 1.00 | 0.30 | 2 | 0.90 |
| 4.00 | 1.00 | 0.30 | 3 | 1.20 |
| 2.00 | 1.00 | 0.50 | 1 | 1.00 |
| 3.00 | 1.00 | 0.50 | 2 | 1.50 |
| 4.00 | 1.00 | 0.50 | 3 | 2.00 |
| 1.00 | 1.00 | 1.00 | 0 | 1.00 |
| 1.50 | 1.00 | 1.00 | 0 | 1.50 |
| 2.00 | 1.00 | 1.00 | 1 | 2.00 |
| 3.00 | 1.00 | 1.00 | 2 | 3.00 |
| 4.00 | 1.00 | 1.00 | 3 | 4.00 |
Gabion Baskets Applications:
1. Control and guide of water or flood
2. Flood bank or guiding bank
3. Preventing of rock breaking
4. Bridge Protection
5. Water and soil protection
6. Coast protection
7. Seaport engineering
8. Strengthening structure of soil
9. Protection of road
