200 X 100 X 50 Galvanised Welded Gabion Box Stone Cage For Government Project
Hot Selling 200 x 100 x 50 Galvanized Welded Gabion Box Stone Cage
Component of Welded Gabion Box Stone Cage:
| Component Part | Lid Mesh Panel, Bottom Mesh Panel, Side Mesh Panel |
| Welded Mesh Panel | Welded by Low Carbon Steel Wire, with 50 *50mm or 50*100mm mehs hole |
| Spring Wire | Make HDP Galvanized wire into Continuous Circle to connectting the panels |
| Wire Brace | HDP Wire with two hooks, connected the side mesh panel |
100x50x30 Limestone Gabion Retaining Wall:
Limestone Gabion Retaining Wall, is a kind of Gabion basket, can consist protection wall,used in garden, city road, and park and so on.Welded Gabion box also can used for flood control in smooth land. No matter Landscape Gabion basket or protection gabion retaining wall, both of them are often appeared in large project program. Small part of landscape used for homemade, and fit for express shipping.

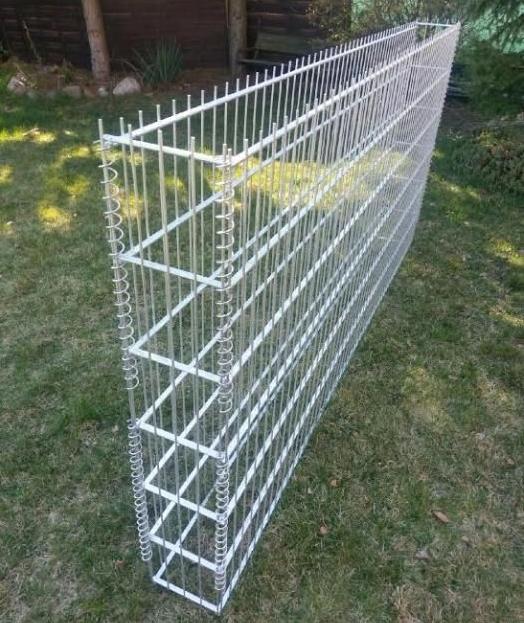

Welded Gabion stone cage is made of Welded Wire Mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.
Welded Cage Gabions is manufactured from cold steel wire with high tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded gabions and PVC welded gabions. Gabion Basket is designed on the principle of mass earth retaining wall. The strength of the wire mesh helps to stand the forces generated by the retained soil.
Gabion Wall box Applications
control and guide of water; preventing of rock breaking; water and soil, roadway and bridge protection; strengthening structure of soil; protection engineering of seaside area and retaining wall structures; hydraulic structures,dams and culverts; coastal embankment works; architectural feature retaining walls.
Specification of Welded Gabions:
| Mesh Wire Diameter | 3mm,4mm,5mm,6mm etc |
| Spring wire Diameter | 3mm,4mm,5mm,6mm etc |
| Mesh size | 50*50mm,50*100mm,37.5*100mm,60*60mm,65*65mm,70*70mm,76*76mm,80*80mm or as your request. |
| Panel Size | 0.61*0.61m,1*1m,1.2*1.2m,1.5*1.5m,1.5*2m,2*2m, 2.21*2.13m or as your request. |
| Finish | Electro galvanized after welded
Hot dipped galvanized welded Galfan coated after welded |
| Packing | Wrapped with shrink film or packed in pallet |
Features of Welded Gabion Box:
1. Easy to Install
2. Anti- Rust and Anti-Corrosive
3. Low - Cost
4. High Security
5. Beautiful Appearance
Advantages of Gabion Stone Wall:
1. Selected High Quality Low Carbon Steel Wire, Excellent Corrosion resistant performance and strong ability to withstand Natural Damage and resist adverse weather effects.
2. Complted by Automated, precision mechanical equipment, strictly Follow BS 1052:1986 Standard.
3. Directly Factory Price.
