Geotextile Lined Strong Protection Defensive Barrier
Geotextile Lined Barrier For Military Defense Gabion Barrier Strong Protection

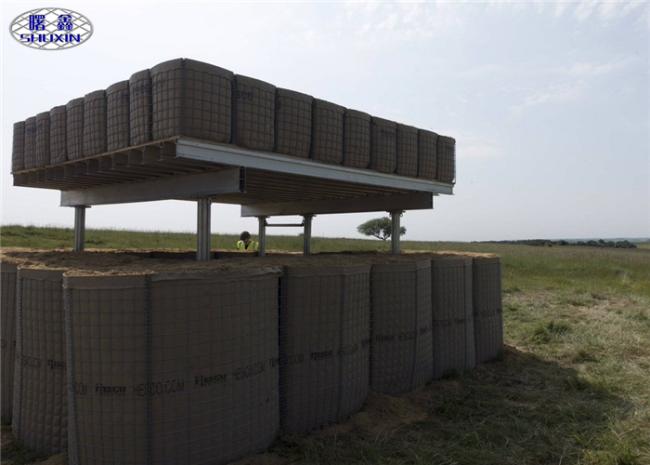

Defensive Gabion Barrier could be used for military defending. From a simple perimeter wall to a complex base infrastructure, KESCO products provide rapid expeditionary protection to personnel, equipment and critical assets in any terrain.

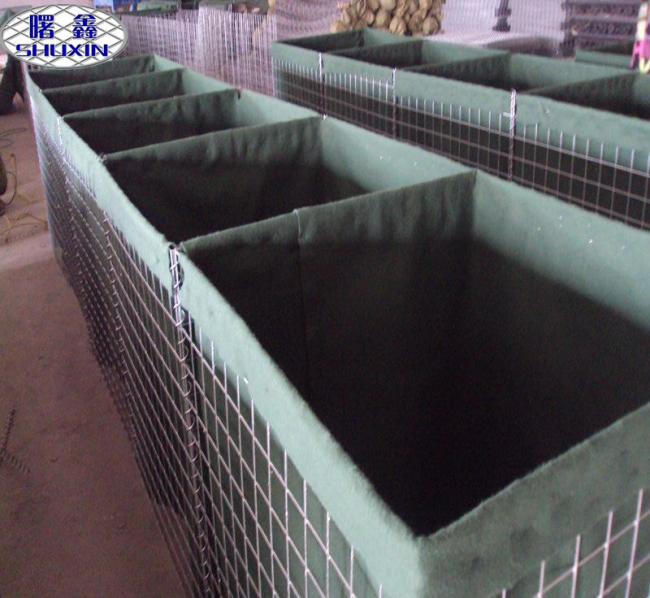

The structure of bastion barrier is similar as the welded gabion, which is connected by the spiral wires. The filling material of bastion barrier is commonly sands. The welded gabions are lined with heavy duty non-woven polypropylene geotexitile to prevent filling materials from leaking out from the large opening.
The Standard Technical Barrier For Military Defense Specifications from SX 1 to SX 19
- Material: electric galvanized, hot dipped galvanized or Galfan coated steel wire.
- Wire diameter: 3 mm - 5 mm.
- Mesh opening: 2" × 2", 3" × 3", 4" × 4".
- Geotextile color: white, gray, green, sand and other colors.
| Welded Military Sand Filled Barrier for Retaining Wall | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
The Application for Barrier For Military Defense
Flood Control
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, Welded Protection Barriers provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Sand Filled Barriers can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Welded Barrier Box can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Protection Defensive Barrier is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Barrier For Military Defense:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.
2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
