Welded Military Mil 7 Defensive Barrier Army Hesco Wall For Flood Protection
Military Welded Mesh Gabion Hesco Barrier Welded Defensive Bastion For Kenny

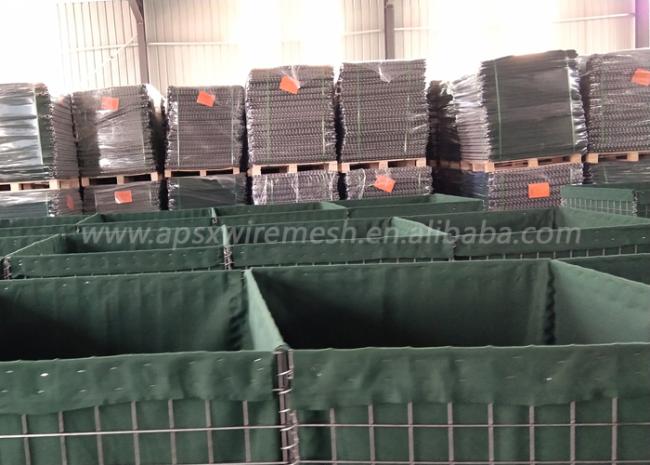

Hesco barrier also named as Hesco bastion, Hesco defense wall, sand cage, welded gabion box, etc.It is a prefabricated,multi-cellularsystem, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the providedjoining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended,it is filled into sand,stone,then hesco barrier like a defence wall or bunker,it is widely used for military fortification and flood control.
The Advantages for Barrier:
1. Collapsible
It is assembled by Panel and Spring Wire, When Loading and transportation, It is Foldable into one piece.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.
3. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finish it.
4. Quick Displacements
When you want to use it in another place,Just to move it, It can use many times
5. Easy to repair
If some part is destroyed, Just left it and connect the new one is okay.
|
Wire diameter
|
3.85mm,4mm,5mm etc
|
|||
|
Mesh Size
|
75mmx75mm etc
|
|||
|
Spring wire diameter
|
3mm,4mm,5mm etc
|
|||
|
Panel Finish
|
Hot dipped galvanized or Galfan coated
|
|||
|
Geotextile
|
Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc
|
|||
|
Packing Wrapped with shrink film or packed in pallet
|
||||
|
Technical Specification for Geotextile Fabric
|
||||
|
Color
|
Beige sand,Olive green,Grey
|
|||
|
Mass(g/sqm)
|
250,300,350
|
|||
|
Tensile strength
|
16kN
|
|||
|
Tear Strength
|
0.42kN
|
|||
|
CBR Puncture
|
3.1kN
|
|||
|
UV strength retention
ASTM D4355
|
50% at 500hours
(5 years use life in common environment) |
|||
|
70% at 500hours
(10 years use life in common environment) |
||||
Whether used as a protective barrier or to define boundaries, HESCO MIL units have been employed to safeguard equipment, facilities, vehicles, personnel and critical assets in a variety of operations such as military, peacekeeping, humanitarian and civilian.
Application
1. Police force points and Check points
2. Military Defensive barriers
3. Observation points and border checkpoints
4. Military barrier fortification system
5. Border control and temporary accommodation bunkers
Packing
1. Usually the HESCO Barriers packed in Pallet and 5 cells per set,After getting it, make it stand.
2. To Pull them, make them opened and in a line to achieve the length you want, If more cells use Joint Pin to connect(@HESCO Barrier Installation).
3. Full Fill the sand and earth in it and compaction
4. If you want more High and Wide of it, You can stack the HESCO Barrier on each other.
