security fencing razor barbed wire roll cross razor wire
High Quality Razor Barbed Wire - Factory Price
Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire.
It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders,
with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult.
The wire and strip are galvanized or PVC coated to prevent corrosion.
Material:
Galvanized wire and plate
Heavy Zinc coated wire and plate
Stainless steel wire and plate
Process: galvanized steel plate or stainless steel plate punched into certain forms then attached to the steel wire in sharp angle to form the blades.
Barbed Types: BTO-10 BTO-18 BTO-22 CBT-60 CBT-65
| Reference Number | Thickness | Wire Dia. | Blade Length | Blade Width | Blade Spacing |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-15 | 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-25 | 0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
|
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
|
|||||

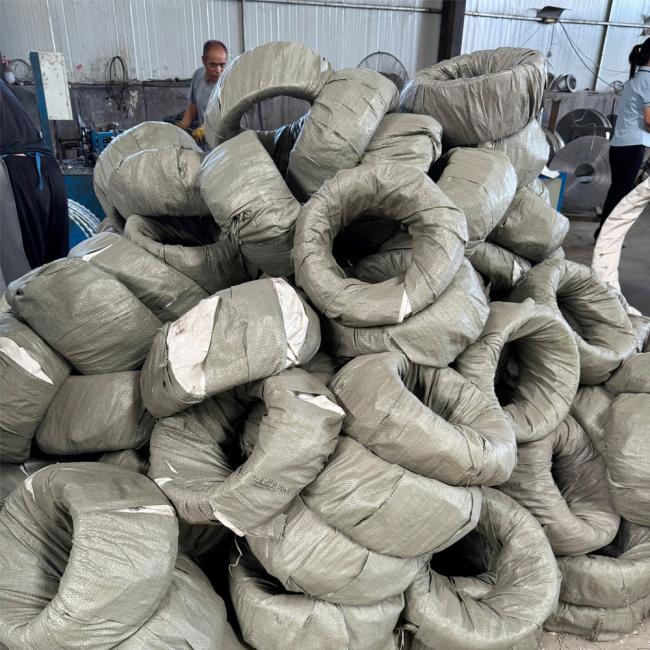

Double-layer braided wrap We have a lot of stock and can ship quickly
