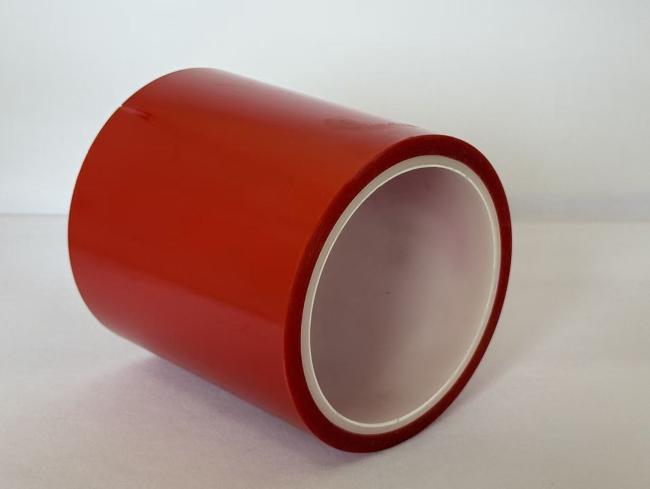

Red PET Silicone Adhesive Tape – 155℃ Masking for Paint Baking & Oven
Red silicone tape is a type of tape made with a red polyester (PET) film backing and coated with a silicone adhesive. It offers excellent high-temperature resistance and good chemical resistance.
- High-Visibility Red Color
- 155℃ Continuous Temperature Resistance
- Superior Electrical Insulation
- Excellent Chemical & Solvent Resistance
- Conformable with High Elongation
- Automotive Paint Baking & Refinishing
- Powder Coating Oven Curing
- PCB Wave Soldering Masking
- Electroplating & Anodizing Masking
- Industrial Oven Curing & Drying
- Composite Curing & Vacuum Bagging
- Insulation Protection for Electronic Components
| Total Thickness | mm | 0.05 ± 0.005 |
| Backing Thickness | mm | 0.038 |
| Adhesive Type | – | Silicone |
| Backing Material | – | PET Film (Red) |
| Color | – | Red |
| Elongation at Break | % | > 40 |
| Peel Adhesion | g/25mm | > 500 |
| Long-Term Temp Resistance | ℃ | 155 |
| Dielectric Breakdown Voltage | kV | > 5.0 |
| Chemical Resistance | – | Excellent |
| Adhesive Residue | – | None |
| Recommended Storage Temp | ℃ | 23 |
| Recommended Storage Humidity | % RH | 65 |
| Shelf Life | Months | 6 |
Q: Will this tape withstand a full automotive paint bake cycle?
A: Yes. The tape is rated for continuous use at 155℃, making it fully compatible with standard automotive paint bake cycles (typically 60-90 minutes at 140℃–155℃). It maintains adhesion and removes cleanly after cooling.
Q: Does the red pigment bleed or transfer onto painted surfaces?
A: No. The pigment is fully encapsulated within the PET film and does not bleed, fade, or transfer to masked surfaces during oven cycling. Your paint finish remains pristine.
Q: Can this tape be used on freshly painted surfaces?
A: It is recommended to apply the tape only to fully cured painted surfaces. The silicone adhesive is designed for clean removal from cured coatings and metal substrates.
Q: Is this tape suitable for lead-free wave soldering?
A: Yes. The 155℃ continuous rating and >5kV dielectric strength make it an excellent choice for masking PCB gold fingers and connectors during lead-free wave soldering processes.
Q: What is the recommended storage condition and shelf life?
A: Store in original packaging at 23℃ (73℉) and 65% relative humidity. Under these conditions, the tape maintains optimal performance for 6 months from date of shipment. Avoid exposure to direct sunlight and high humidity.
