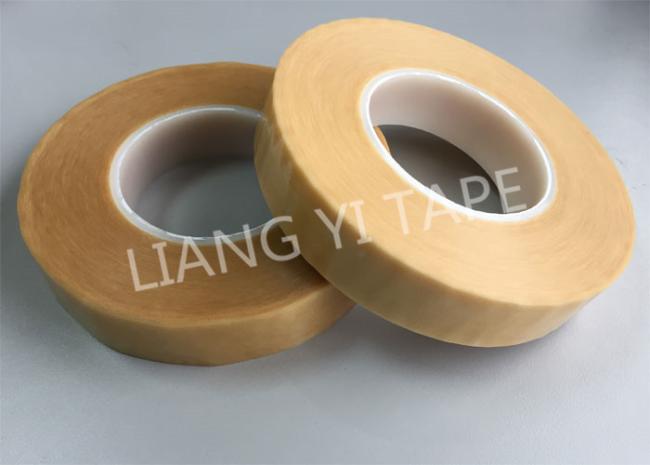

PET Film Electrical Insulation Tape , 0.15mm Thick Brown Insulation Tape
The tape is made of polyester film tapes composite with non-woven fabric ,and coated with yellow color rubber adhesive.It consists of materials that are represented in many UL Recognized Insulating Systems and has a UL 130°C temperature rating.
- For winding of transformer, motor, coil, capacitor and electric wire
- Ideal for Decorative Striping Application
- Edge trimming for a variety of surfaces.
- Can be used as a sensing tape where automatic equipment is used in sorting, counting, or identifying roll splices and end of rolls
- UL certification , ROHS 2.0 , REACH
UL Recognized for use at temperature not exceeding 130°C,UL file number E246820,product category OANZ.2 .Underwriters Laboratories(UL) recognized products have been evaluated for use as components of end-product equipment that is listed or classified by UL. To achieve Underwriters Laboratories recognition, component construction must meet UL specifications and conditions of acceptability for proper and safe use of the component or product.
| Material | Polyester film(PET film) +15g non-woven fabric + rubber adhesive |
| Thickness | 0.15±0.02mm |
| Color | yellow |
| Temperature rating | 130°C |
| Flame resistance | yes |
| Elongation | ≥30% |
| Peel strength | ≥320N/M |
| Withstand voltage | >4.5KV |
| Tensile strength | >3.2KN/m |
| certification | UL and SGS certification; confirm to ROHS ,REACH; sumitomo insulation system; cosmolink insulation system |
| Advantages |
|
| Services |
|
| Sample lead time | 3 days |
| Order lead time | 5 workdays |
| Port | Shanghai |
| Payment | T/T |
