High Efficiency Reproducible Hydrogen In Hydrogen Fuel Cells And Hydrogen Chemical Industry

High Efficiency And Reproducible Hydrogen Used In Hydrogen Fuel Cells And Hydrogen Chemical Industry

Working Principle Description:

1. Reaction equation:

Under appropriate conditions, ammonia (NH3) can decompose into hydrogen gas (H₂) and nitrogen gas (N₂).

2NH3→3H2+N2

2. Working principle:

Thermodynamic basis: The decomposition of ammonia is an endothermic reaction that requires input of heat to occur. This means that sufficient heat needs to be provided during the reaction process to promote the decomposition of ammonia.

Catalysts: Metals such as nickel, iron, rhodium, or their oxides are usually used as catalysts, which can reduce the activation energy of the reaction and accelerate the reaction rate.

• Reaction conditions: The decomposition of ammonia is usually carried out at high temperatures (500-800 ° C) and appropriate pressures, which helps to promote the progress of the reaction.

3. Process characteristics:

• High purity hydrogen: Ammonia decomposition can produce high-purity hydrogen, which is suitable for many industrial applications.

Renewable raw materials: Ammonia is a relatively easy to store and transport raw material that can be regenerated through various pathways.

4. Application areas:

Industrial use: Hydrogen is widely used in fields such as hydrogen fuel cells and hydrogen chemical industry.

Energy storage: The hydrogen production process can also be used as a form of energy storage.

Ammonia decomposition for hydrogen production is an effective method with certain industrial application potential.

Product Advantages:

● Efficiency: Ammonia decomposition for hydrogen production is an efficient method that can produce a large amount of high-purity hydrogen in a relatively short period of time.

●Reproducibility: Ammonia is an important component of renewable resources, and its decomposition to produce hydrogen can recycle ammonia, making it sustainable.

●Clean energy: Ammonia is a clean energy carrier that can produce pure hydrogen gas through ammonia decomposition, which is used to promote the development of the hydrogen energy industry.

●By product utilization: In addition to hydrogen, ammonia decomposition also generates nitrogen as a byproduct, which can be used for industrial applications or recycled.

Technical parameters:

● Hydrogen delivery: ≤100Nm3/hr;

● Dew point: －10℃

● Pressure: 0.05 Mpa

● Residual ammonia: 1000ppm

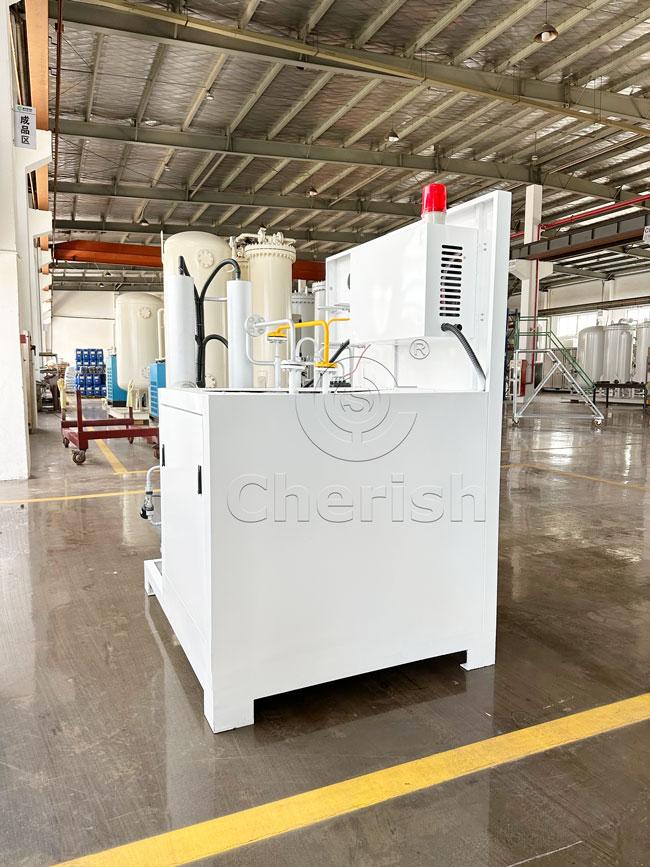

Product picture:
