12Nm3/Hr Flow Rate And 0.4~1.0 Mpa Pressure Of PSA Oxygen Plant To Produce Oxygen

Working Principle Description:

PSA oxygen generator is a kind of automatic equipment which uses zeolite molecular sieve as adsorbent to absorb and release oxygen from air by using the principle of pressure adsorption and depressurization desorption, so as to separate oxygen. Zeolite molecular sieve is a spherical granular adsorbent with micropores on the surface and inside.

Product Advantages:

· Complete skid mounted and pre-piped;

· Fast start-up speed, 15 ~ 30 minutes can provide qualified oxygen ;

· Fully automatic operation of the equipment, the whole process can be realized unattended;

· Critical process parameters monitored;

· Automatic turndown capability from 0% to 100% flow capacity.

Application fields:

PSA oxygen generators are widely used in different areas, including medical, plateau, environmental protection, combustion-supporting, cultivation, laboratory, chemical industry, electron, medicine, food, marine, aluminium soldering, lithium cell, heat treatment, laser cutting and etc.

Technical parameters:

● Oxygen delivery ≤12Nm3/hr;

● Purity 93%±3

● Pressure 0.4~1.0 Mpa

● Atmospheric dew point ≤－40℃

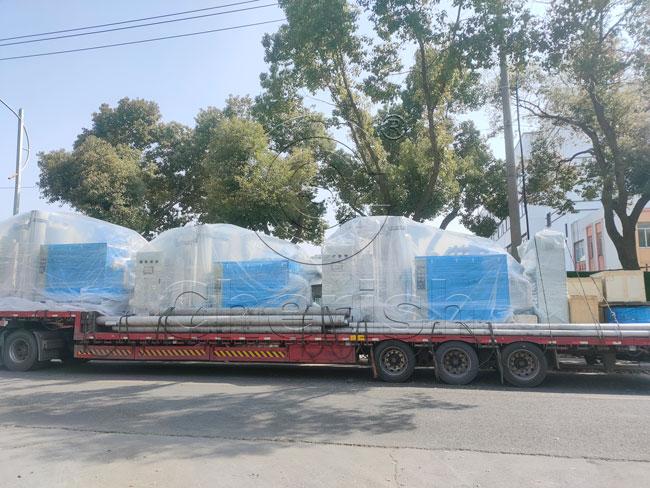

Product picture:
