Long Service Life And Comprehensive Cost-effective Features Of Oxygen Concentator

Working Principle Description:

The basic principle of pressure swing adsorption is that adsorbent has different adsorption capacity for adsorbate under different pressure, and has the characteristic of selective adsorption for each component of separated gas mixture under pressure state. Under the condition of selective adsorption of adsorbent, one or some components in feed gas are adsorbed under pressure, and then these components are removed after decompression, so that the mixed gas can be separated At the same time, the adsorbent is regenerated.

Therefore, the purpose of continuous separation of gas mixture can be achieved by using two or more adsorption towers and alternately changing the combined pressure of each adsorption tower. Because the process of adsorption and desorption is realized by pressure change, the process is called pressure swing adsorption.

Product Advantages:

· Long service life, service life up to the international advanced level, comprehensive cost-effective;

· Fast operation, providing the required oxygen in 15-30 minutes;

· High-quality of different parts guarantee the long service life;

· The performance of the machine is stable and reliable, it can run continuously without stopping the machine, and the oxygen concentration remains stable;

· The equipment runs automatically and no workers are needed in the whole production process;

· With cumulative timing function, it is convenient for customers to objectively investigate the performance of the machine and provide data sources for after-sales service.

Application fields:

PSA oxygen generators are widely used in different areas, including medical, plateau, environmental protection, combustion-supporting, cultivation, laboratory, chemical industry, electron, medicine, food, marine, aluminium soldering, lithium cell, heat treatment, laser cutting and etc.

Technical parameters:

● Oxygen delivery: ≤96Nm3/hr;

● Purity: 93%±3

● Pressure: 0.4~1.0 Mpa

● Atmospheric dew point: ≤－40℃

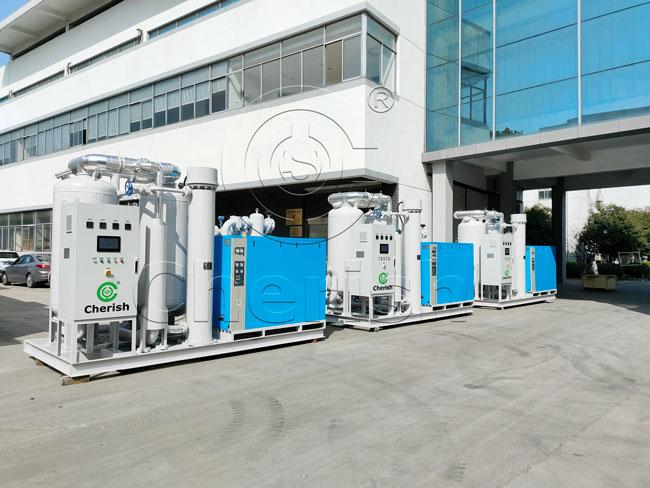

Product picture:
