Low energy consumption of oxygen making machine , By adopting unique adsorption tower and gas distribution system

Working Principle Description:

Adsorption process:

The compressed air from the air compressor first enters the cold dryer to remove water, and then enters the PSA oxygen plant composed of two adsorption towers. The special zeolite molecular sieve adsorbent filled in the tower is used to selectively adsorb N2, CO2 and other impurity gas components, while O2 as product gas will be discharged from the tower top with a purity of 93% ± 3.

Adsorbent regeneration:

During depressurization, the nitrogen adsorbed by the adsorbent is desorbed and discharged through the reverse discharge at the tower bottom. After purging, the adsorbent can be regenerated. The regenerated adsorbent can be transferred to adsorption after pressure equalization and product pressure rise. The two towers are used alternately to achieve the purpose of continuous air separation and oxygen production.

Product Advantages:

• By unique adsorption tower and gas distribution system of the PSA oxygen generator, low energy consumption will be needed.

• Unique adsorption tower and gas distribution system are adopted, and different processes can be selected, low energy consumption will be focused on.

• Because of unique adsorption tower and gas distribution system, the PSA oxygen generator will need low energy consumption.

• Unique adsorption tower and gas distribution system will take low energy consumption to run the PSA oxygen generator.

Application fields:

PSA oxygen generators are widely used in different areas, including medical, plateau, combustion-supporting, cultivation, laboratory, chemical industry, electron, medicine, food, marine, aluminium soldering, heat treatment, laser cutting and etc.

Technical parameters:

● Oxygen delivery ≤132Nm3/hr;

● Purity 93%±3

● Pressure 0.4~1.0 Mpa

● Atmospheric dew point ≤－40℃

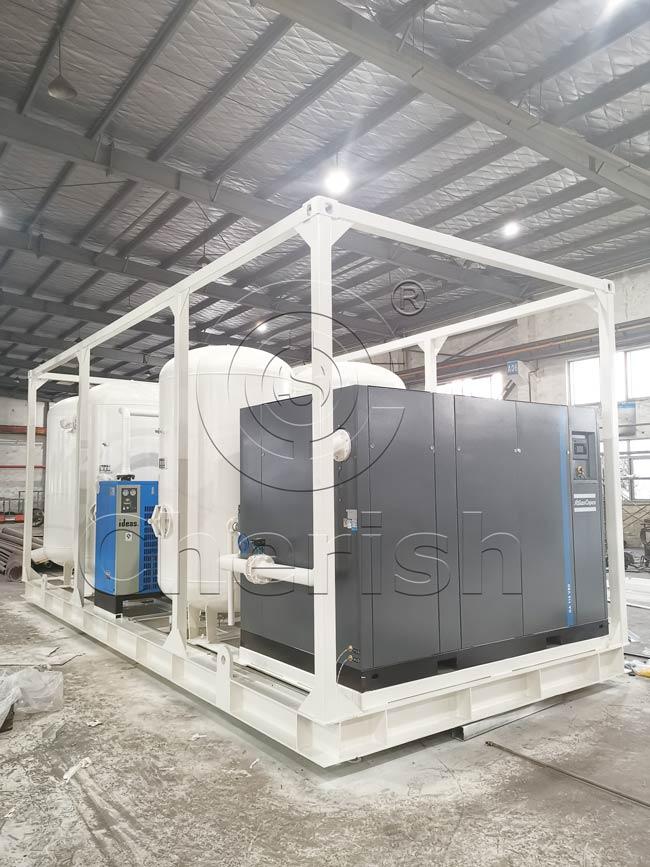

Product picture:
