Heat Stability Tungsten Carbide Wear Plates Anti Corrosion In High Temperature
Heat Stability Tungsten Carbide Wear Plates Anti Corrosion In High Temperature
Application of Tungsten Carbide Blanks
1. Metal working,Blanks tungsten carbide plates for machinery lathe to machine HSS material,Alu ,steel,and stainless steel,etc.
2. Wood working,blanks and finished solid tungsten carbide plate for wood working stone pit industry and mining industry.
3. Stone working,blank and finished solid tungsten carbide plate for crusher machining of marble,granite,cobblestone,mountain stone,etc.
4. Other application,such as wear resistance parts of punching mold,measuring and cutting industry.
Advantage of Tungsten Carbide Blanks
1. Superior heat stability.
2. Anti-deformation in high temperature.
3. Fine thermal shock resistance.
4. High thermal conductivity.
5. Excellent Oxidation control ability.
6. Strong anti-corrosion in high temperature.
7. Good corrosion resistance from Chemical.
8. High-wearing feature.
9. Long usage lifetime.
| TYPE | SPECIFICATION | ||
| T(mm) | W(mm) | L(mm) | |
| STB12 | 0.8 | 1.6 | 25.4 |
| STB13 | 1.2 | 2.4 | 25.4 |
| STB13A | 1.2 | 2.4 | 20.6 |
| STB14 | 2.0 | 3.2 | 28.6 |
| STB206 | 1.6 | 4.8 | 152.4 |
| STB208 | 1.6 | 6.4 | 152.4 |
| STB210 | 1.6 | 7.9 | 152.4 |
| STB212 | 1.6 | 9.5 | 152.4 |
| STB216 | 1.6 | 12.7 | 152.4 |
| STB220 | 1.6 | 15.9 | 152.4 |
| STB224 | 1.6 | 19.1 | 152.4 |
| STB228 | 1.6 | 22.2 | 152.4 |
| STB24A | 1.6 | 3.2 | 25.4 |
| STB24B | 1.6 | 3.2 | 76.2 |
| STB24C | 1.6 | 3.2 | 31.8 |
| STB26A | 1.6 | 4.8 | 25.4 |
| STB26C | 1.6 | 4.8 | 76.2 |
| STB28A | 1.6 | 6.4 | 25.4 |
| STB28B | 1.6 | 6.4 | 31.8 |
| STB28D | 1.6 | 6.4 | 76.2 |
| STB310A | 2.4 | 7.9 | 50.8 |
| STB310B | 2.4 | 7.9 | 76.2 |
| STB310C | 2.4 | 7.9 | 127 |
| STB312 | 2.4 | 9.5 | 127 |
| STB316 | 2.4 | 12.7 | 152.4 |
| STB320 | 2.4 | 15.9 | 152.4 |
| STB324 | 2.4 | 19.1 | 152.4 |
| STB328 | 2.4 | 22.2 | 152.4 |
| STB332 | 2.4 | 25.4 | 152.4 |
| STB336 | 2.4 | 28.7 | 152.4 |
| STB34 | 2.4 | 3.2 | 127 |
| STB340 | 2.4 | 31.8 | 152.4 |
| STB348 | 2.4 | 38.1 | 152.4 |
| STB36 | 2.4 | 4.8 | 28.6 |
| STB36A | 2.4 | 4.8 | 31.8 |
| STB38A | 2.4 | 6.4 | 25.4 |
| STB38B | 2.4 | 6.4 | 38.1 |
| STB38D | 2.4 | 6.4 | 127 |
| STB410 | 3.2 | 7.9 | 152.4 |
| STB410A | 3.2 | 7.9 | 38.1 |
| STB410B | 3.2 | 7.9 | 76.2 |
| STB412A | 3.2 | 9.5 | 50.8 |
| STB412B | 3.2 | 9.5 | 76.2 |
| STB412C | 3.2 | 9.5 | 152.4 |
| STB412D | 3.2 | 9.5 | 25.4 |
| STB416 | 3.2 | 12.7 | 152.4 |
| STB416A | 3.2 | 12.7 | 25.4 |
| STB416B | 3.2 | 12.7 | 38.1 |
| STB416C | 3.2 | 12.7 | 76.2 |
| STB420 | 3.2 | 15.9 | 152.4 |
RX10 High hardness, suitable for roughing of iron, solid wood, dry wood or nonferrous metal, ceramic and other alloys.
RX20 High toughness, easy to be brazed without heat preservation. Suitable for rosewood, solid wood, pinewood, and other wood with a lot stammer.
RX10T High hardness, suitable for finishing of iron, nonferrous metal, ceramic and other alloying, semifinishing of of hardwood, chipboard, MDF and HDF. Better to use silver soldering.
AB10 High toughness, difficult to break tooth. Special used for finger jointing tool.
OEM/ODM
Rich Experience In OEM
We are in a position to accept orders against customers samples specifying design, specifications
and packaging requirements.
Various kinds of Packing box are for your choose.
OEM Packing box with your logo is not a problem.

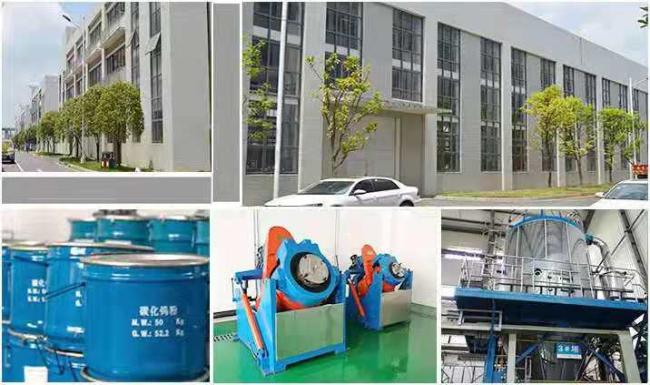

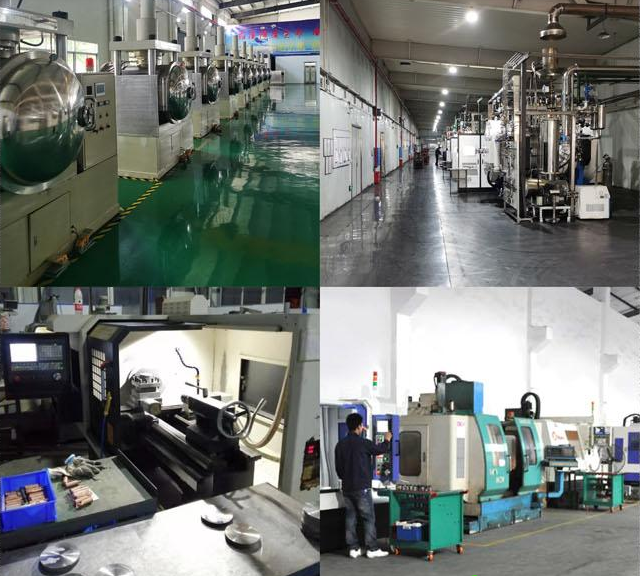

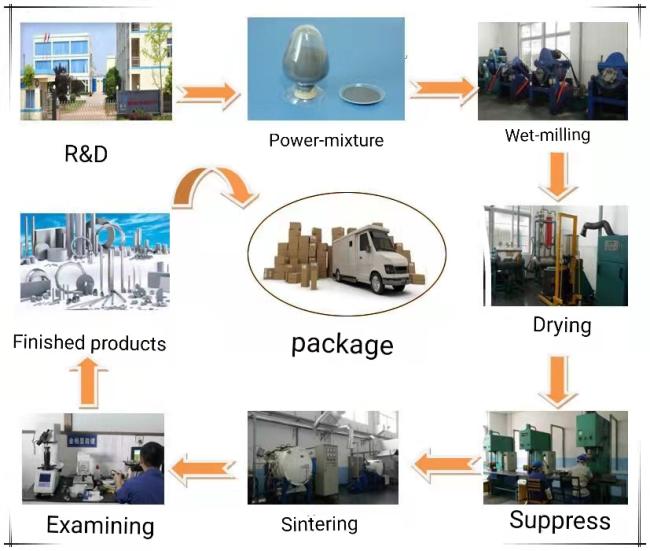

Production Line
We has a complete carbide production line,we are manufacturer, so we can control the goods quality
from raw material, production process, strictly quality inspection after finishing, also we have import
and export license, we can export to our customers directly, our foreign trade manager have above
10 years carbide experience, can understand customer’s requirement well and correctly.
