80m3/H Submersible Sewage Fountain Pump Special Material Stainless Steel
80m3/h Fountain pump special material stainless steel
80m3/h Fountain pump special material stainless steel illustration:
As we all knows, High power submersible pump for fountain is involved on the basis of well submersible pumps; no difference between the shape. In terms of model choice you can consult the well submersible pump or fountain submersible pump parameter list;
There is a certain distinction in the internal structure.Due to the fountain pump mostly adopting a horizontal installation, so the electric pump internal need a over-striking journal, strengthen wear-resisting bearing shell, wear-resisting mouth ring or the impeller must use copper or non-metallic materials, in order to prevent rust.
Because in winter the pool will be drained, if using cast iron rings with cast iron impellers, it is easy to rust in coming spring, if the internal parts become seized by rust the pump will be unable to start operation without overhaul.
Due to the selection of the parameters is more, please refer to QJ or QS series, and of course we will change the internal structure correspondingly.
80m3/h Fountain pump special material stainless steel Model:
| Model |
Capacity (m3/h) |
Head (m) |
Power (kw) |
| QSP80-24-7.5 | 80 | 24 | 7.5 |
| QSP80-22/2-7.5 | 80 | 22 | 7.5 |
Other type model:
| Model |
Capacity (m3/h) |
Head (m) |
Power (kw) |
| QSP15-26-2.2 | 15 | 26 | 2.2 |
| QSP20-20-2.2 | 20 | 20 | 2.2 |
| QSP25-17-2.2 | 25 | 17 | 2.2 |
| QSP65-7-2.2 | 65 | 7 | 2.2 |
| QSP100-5-2.2 | 100 | 5 | 2.2 |
| QSP40-16-3 | 40 | 16 | 3 |
| QSP40-18-3 | 40 | 18 | 3 |
| QSP45-16-3 | 45 | 16 | 3 |
| QSP25-25-3 | 25 | 25 | 3 |
| QSP32-20-3 | 32 | 20 | 3 |
| QSP50-13-3 | 50 | 13 | 3 |
| QSP65-10-3 | 65 | 10 | 3 |
| QSP22-28-3 | 22 | 28 | 3 |
| QSP50-13-3 | 50 | 13 | 3 |
| QSP100-7-3 | 100 | 7 | 3 |
| QSP15-34/2-3 | 15 | 34 | 3 |
| QSP20-30/2-3 | 20 | 30 | 3 |
| QSP40-21-4 | 40 | 21 | 4 |
| QSP65-13-4 | 65 | 13 | 4 |
| QSP80-12-4 | 80 | 12 | 4 |
| QSP100-9-4 | 100 | 9 | 4 |
| QSP25-34/2-4 | 25 | 34 | 4 |
| QSP24-34/2-4 | 24 | 34 | 4 |
| QSP15-52/3-4 | 15 | 52 | 4 |
| QSP20-40/2-4 | 20 | 40 | 4 |
| QSP20-36/2-4 | 20 | 36 | 4 |
| QSP30-26/2-4 | 30 | 26 | 4 |
| QSP40-28-5.5 | 40 | 28 | 5.5 |
| QSP45-25-5.5 | 45 | 25 | 5.5 |
| QSP60-20-5.5 | 60 | 20 | 5.5 |
| QSP65-18-5.5 | 65 | 18 | 5.5 |
| QSP40-30/2-5.5 | 40 | 30 | 5.5 |
| QSP30-36/2-5.5 | 30 | 36 | 5.5 |
| QSP30-38/2-5.5 | 30 | 38 | 5.5 |
| QSP30-40/2-5.5 | 30 | 40 | 5.5 |
| QSP20-50/3-5.5 | 20 | 50 | 5.5 |
| QSP15-65/4-5.5 | 15 | 65 | 5.5 |
| QSP120-10-5.5 | 120 | 10 | 5.5 |
| QSP100-12-5.5 | 100 | 12 | 5.5 |
| QSP220-5-5.5 | 220 | 5 | 5.5 |
| QSP65-25-7.5 | 65 | 25 | 7.5 |
| QSP80-24-7.5 | 80 | 24 | 7.5 |
| QSP100-15-7.5 | 100 | 15 | 7.5 |
| QSP150-10-7.5 | 150 | 10 | 7.5 |
| QSP40-40/2-7.5 | 40 | 40 | 7.5 |
| QSP80-22/2-7.5 | 80 | 22 | 7.5 |
| QSP30-50/3-7.5 | 30 | 50 | 7.5 |
| QSP30-54/3-7.5 | 30 | 54 | 7.5 |
| QSP25-56/3-7.5 | 25 | 56 | 7.5 |
| QSP50-36/3-7.5 | 50 | 36 | 7.5 |
| QSP20-75/3-7.5 | 20 | 75 | 7.5 |
| QSP25-60/3-7.5 | 25 | 60 | 7.5 |
| QSP24-34/2-4 | 24 | 34 | 4 |
| QSP15-52/3-4 | 15 | 52 | 4 |
| QSP20-40/2-4 | 20 | 40 | 4 |
| QSP20-36/2-4 | 20 | 36 | 4 |
| QSP30-26/2-4 | 30 | 26 | 4 |
| QSP40-28-5.5 | 40 | 28 | 5.5 |
| QSP45-25-5.5 | 45 | 25 | 5.5 |
| QSP60-20-5.5 | 60 | 20 | 5.5 |
| QSP65-18-5.5 | 65 | 18 | 5.5 |
| QSP40-30/2-5.5 | 40 | 30 | 5.5 |
| QSP30-36/2-5.5 | 30 | 36 | 5.5 |
| QSP30-38/2-5.5 | 30 | 38 | 5.5 |
| QSP30-40/2-5.5 | 30 | 40 | 5.5 |
| QSP20-50/3-5.5 | 20 | 50 | 5.5 |
| QSP15-65/4-5.5 | 15 | 65 | 5.5 |
| QSP120-10-5.5 | 120 | 10 | 5.5 |
| QSP100-12-5.5 | 100 | 12 | 5.5 |
| QSP220-5-5.5 | 220 | 5 | 5.5 |
80m3/h Fountain pump special material stainless steel features:
1) High reliability
2) Environmental protection
3) High efficiency and energy saving
4) Be able to bear its start frequently
5) High resistance to water
6) Corrosion resistance and no blockage
80m3/h Fountain pump special material stainless steel installation instructions:
1). Environment temperature less than 45°C, and should be away from magnetic objects.
2). Intake with installed pump body parallel to the horizontal plane for optimum results;
3). The silicone tube of inlet connection bend angle is not < 90°;
4). Water pump installation at any angle of 360°, but you need to contact our technical department, so that it can easy to adjust the pump parameters when production.
5). Pump intake should below the horizontal plane when working.
6). Excluding air in the pump before outlet connect hose.
7). Polarity can not be connected reverse.
8). Durable dry draw time;<=0.3 hour;
9). Diving; There are two "u" shaped mounting hole of the pump at the bottom for fixing by screws.
Why choose us:

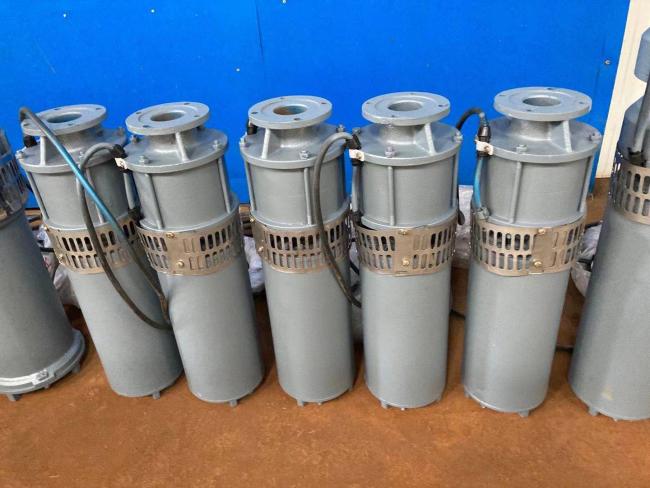

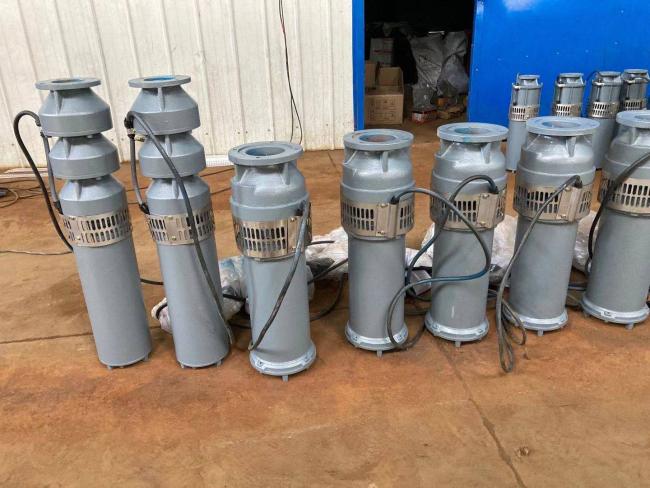

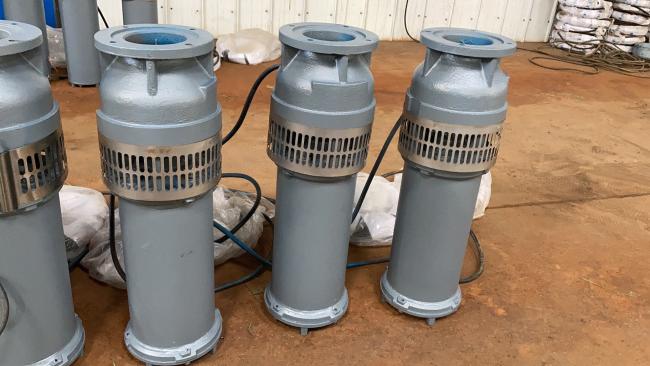

We produced a batch of pumps to Saudi Arabia, before that, we have exported many kinds of pumps to this country. If you need a water pump, you can contact us, we will help you choose a suitable water pump, and you will be satisfied.
