220kw 260kw 300kw 600m3/H Cast Iron Submersible Pumps

220kw 260kw 300kw 600m3/h Cast Iron Submersible Pumps

220kw 260kw 300kw 600m3/H Submersible Pumps Brief Introduction:

Well submersible pumps are mainly used in the deep well water intake industry for pumping well water, groundwater, and other water intake and drainage operations. In order to understand the use of submersible pumps for wells, we understand the products from their structure and principle, so that we can use submersible pumps for wells better.

220kw 260kw 300kw Cast Iron Submersible Pumps Model:

220kw 260kw 300kw Cast Iron Submersible Pumps Working Principle:

The impeller of the submersible pump is driven by the submersible motor to rotate, so that a vacuum is formed at the inlet of the impeller, and water is sucked in. The water generates centrifugal force under the action of the impeller blades, thereby obtaining speed energy and pressure energy. Water with a certain energy passes through the diversion shell and enters the impeller of the next stage. As the number of pump stages increases, the pressure increases continuously, and finally it is sent into the pipeline system on the ground through the lifting pipe and pump base.

600m3/H Submersible Pumps Structure:

Well submersible pump is composed of pump body, water pipe, pump base, submersible motor (including cable) and starting protection device. The pump body is the working part of the submersible pump, which is composed of the water inlet section, the diversion shell, the check valve, the pump shaft and the impeller and other components. The pump body and the submersible motor are connected by bolts on the flange surface, and the two shafts are connected by a coupling. The water pipes are also connected by bolts. The motor is a submersible motor, and the attached cable is a waterproof rubber-sheathed cable. The starting protection device should use a self-coupling decompression starting box with protection functions such as overload, undervoltage, and failure.

220kw 260kw 300kw 600m3/H Submersible Pumps Summary:

We roughly explained the main working principle and structure of submersible pumps for wells, and deeply understood the actual structure principles of submersible pumps for deep wells. When purchasing and using them, they are more in line with the actual working conditions, and better select the ones whose parameters and quality meet the requirements product.

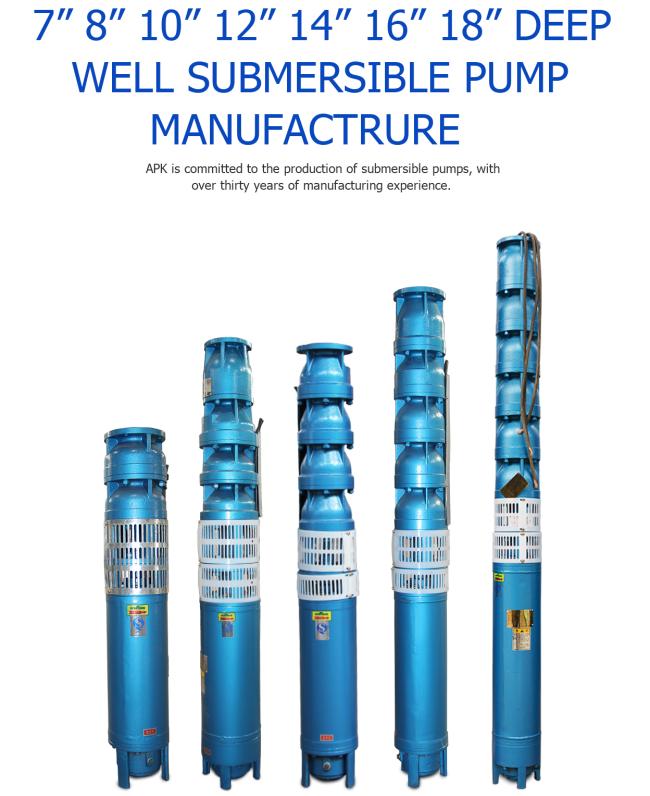

220kw 260kw 300kw 600m3/H Submersible Pumps Picture:
