2.2kw 3kw 4kw Submersible Irrigation Pump , Agriculture Deep Well Water Pump
2.2kw 3kw 4kw Agriculture Deep Well Water Pumps Submersible Irrigation Pump
Submersible irrigation pump overview:
For irrigation, QI series deep well submersible pump, QS series submersible fountain pump,both could be farmland irrigation.
Submersible irrigation pump size:
1. 2.2kw 3kw 4kw 5.5kw 7.5kw 9.2kw 11kw 13kw 15kw submersible irrigation pump
2. Power:380v/415v/420v/460v/480v/660v /1140v
3. Voltage: 3 phase 50hz/60hz
4. Flow: 9-54m3/h
5. Head: 8-97m
6. Material: Cast iron/ss304/ss316/ss316L/HT200

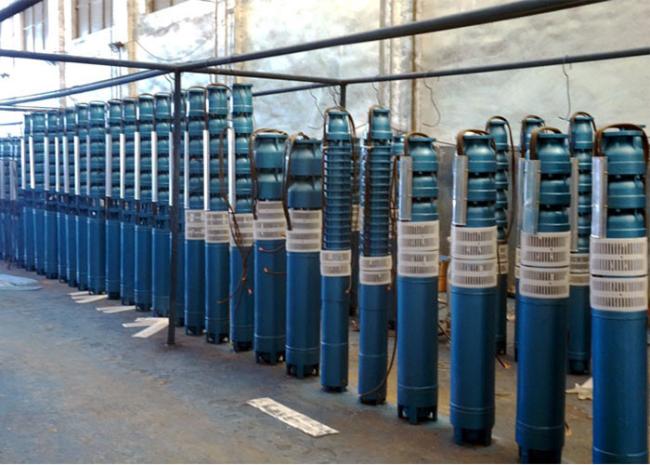

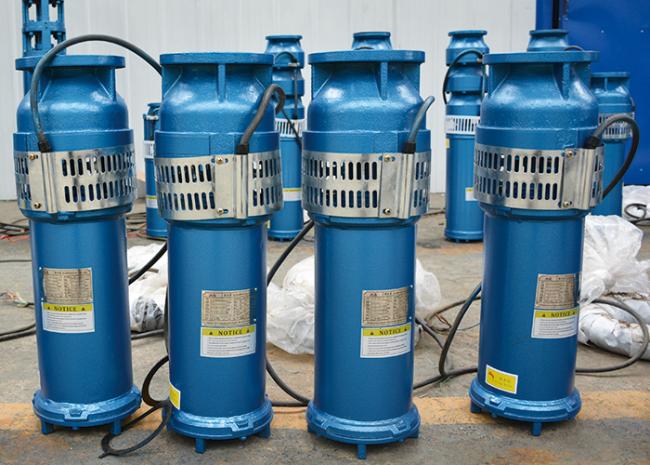

7. Submersible irrigation pump series: QJ series deep well submersible irrigstion pump, QS series submersible fountain pump
Submersible irrigation pump features:
1. Large capacity, high head
2. Motor and pump are integrated, simple structure
3. Easy to install, use, disassemble and maintain
4. Taking little floor space
5. No polution to water source
6. Continuous operation 2500 hours per year
7. Average life is at least 5 years
Submersible irrigation pumps parameters:
| Model | Motor Power | Flow range | Meter range | Outlet size | Rated current | |
| QJ Series | kw | hp | m3/h | (m) | Inch (") | A |
| 175QJ10-40/3 | 2.2 | 3 | 9-11 | 32-48 | 1.2" | 5.7 |
| 175QJ10-54/4 | 3 | 4 | 9-11 | 44-64 | 1.2" | 7.8 |
| 175QJ10-65/5 | 4 | 5 | 9-11 | 52-78 | 1.2" | 10.1 |
| 175QJ10-81/6 | 4 | 5 | 9-11 | 65-97 | 1.2" | 10.1 |
| 175QJ10-95/7 | 5.5 | 7 | 9-11 | 76-114 | 1.2" | 13.6 |
| 175QJ10-108/8 | 5.5 | 7 | 9-11 | 86-128 | 1.2" | 13.6 |
| 175QJ10-121/9 | 7.5 | 10 | 9-11 | 96-140 | 1.2" | 18.4 |
| 175QJ10-135/10 | 9.2 | 13 | 9-11 | 130-140 | 1.2" | 22.1 |
| 175QJ10-150/11 | 9.2 | 13 | 9-11 | 144-146 | 1.2" | 22.1 |
| 175QJ10-165/12 | 11 | 15 | 9-11 | 158-172 | 1.2" | 26.1 |
| 175QJ10-180/13 | 11 | 15 | 9-11 | 173-187 | 1.2" | 26.1 |
| 175QJ10-195/14 | 13 | 18 | 9-11 | 187-203 | 1.2" | 30.1 |
| 175QJ10-210/15 | 13 | 18 | 9-11 | 201-219 | 1.2" | 30.1 |
| 175QJ10-225/16 | 13 | 18 | 9-11 | 216-234 | 1.2" | 30.1 |
| 175QJ10-240/17 | 15 | 20 | 9-11 | 230-250 | 1.2" | 34.7 |
| 175QJ10-255/18 | 15 | 20 | 9-11 | 245-265 | 1.2" | 34.7 |
| 175QJ20-91/7 | 9.2 | 13 | 18-22 | 78-105 | 2" | 34.7 |
| 175QJ20-104/8 | 11 | 15 | 18-22 | 89-120 | 2" | 42.6 |
| 175QJ20-117/9 | 13 | 18 | 18-22 | 100-135 | 2" | 42.6 |
| 175QJ20-130/10 | 15 | 20 | 18-22 | 110-150 | 2" | 42.6 |
| 175QJ20-143/11 | 15 | 20 | 18-22 | 120-165 | 2" | 49.7 |
| 175QJ25-65/5 | 7.5 | 10 | 23-27 | 53-76 | 2" | 18.4 |
| 175QJ25-78/6 | 9.2 | 13 | 23-27 | 66-92 | 2" | 22.1 |
| 175QJ25-91/7 | 11 | 15 | 23-27 | 75-105 | 2" | 26.1 |
| 175QJ25-104/8 | 13 | 18 | 23-27 | 98-118 | 2" | 30.1 |
| 175QJ25-117/9 | 15 | 20 | 23-27 | 100-135 | 2" | 34.7 |
| 175QJ25-130/10 | 15 | 20 | 23-27 | 110-150 | 2" | 34.7 |
| 175QJ32-24/2 | 4 | 5 | 29-35 | 19-28 | 3" | 10.1 |
| 175QJ32-36/3 | 5.5 | 7 | 29-35 | 28-42 | 3" | 13.6 |
| 175QJ32-48/4 | 7.5 | 10 | 29-35 | 40-56 | 3" | 18.4 |
| 175QJ32-60/5 | 9.2 | 13 | 29-35 | 50-70 | 3" | 22.1 |
| 175QJ32-72/6 | 11 | 15 | 29-35 | 60-80 | 3" | 26.1 |
| 175QJ32-84/7 | 13 | 18 | 29-35 | 71-96 | 3" | 30.1 |
| 175QJ32-96/8 | 15 | 20 | 29-35 | 82-110 | 3" | 34.7 |
| 175QJ32-108/9 | 15 | 20 | 29-35 | 82-123 | 3" | 34.7 |
| 175QJ40-24/2 | 5.5 | 7 | 37-43 | 19-28 | 3" | 13.6 |
| 175QJ40--36/3 | 7.5 | 10 | 37-43 | 28-42 | 3" | 18.4 |
| 175QJ40-48/4 | 9.2 | 13 | 37-43 | 40-56 | 3" | 22.1 |
| 175QJ40-60/5 | 11 | 15 | 37-43 | 50-70 | 3" | 26.1 |
| 175QJ40-72/6 | 13 | 18 | 37-43 | 60-82 | 3" | 30.1 |
| 175QJ40-84/7 | 15 | 20 | 37-43 | 71-96 | 3" | 34.7 |
| 175QJ50-24/2 | 5.5 | 7 | 46-54 | 19-28 | 3" | 13.6 |
| 175QJ50-36/3 | 7.5 | 10 | 46-54 | 28-42 | 3" | 18.4 |
| 175QJ50-48/4 | 11 | 15 | 46-54 | 40-56 | 3" | 26.1 |
| 175QJ50-60/5 | 13 | 18 | 46-54 | 50-70 | 3" | 30.1 |
| 175QJ50-72/6 | 15 | 20 | 46-54 | 60-82 | 3" | 34.7 |
| 200QJ15-26/2 | 2.2 | 3 | 13-17 | 23-29 | 3" | 5.6 |
| 200QJ15-39/3 | 3 | 4 | 13-17 | 34-46 | 3" | 7.9 |
| 200QJ15-54/4 | 4 | 5 | 13-17 | 46-62 | 3" | 10.1 |
| 200QJ15-65/5 | 5.5 | 7 | 13-17 | 55-75 | 3" | 13.6 |
| 200QJ15-81/6 | 7.5 | 10 | 13-17 | 68-92 | 3" | 18 |
| 200QJ20-30/2 | 3 | 4 | 18-22 | 22-33 | 3" | 7.9 |
| 200QJ20-40/3 | 4 | 5 | 18-22 | 32-48 | 3" | 10.1 |
| 200QJ20-93/7 | 10 | 14 | 18-22 | 79-107 | 2" | 24.7 |
| 200QJ20-108/8 | 13 | 18 | 18-22 | 92-125 | 2" | 29.7 |
| 200QJ20-121/9 | 13 | 18 | 18-22 | 103-140 | 2" | 29.7 |
| 200QJ20-135/10 | 15 | 20 | 18-22 | 115-156 | 2" | 33.9 |
| 200QJ20-148/11 | 15 | 20 | 18-22 | 126-170 | 2" | 33.9 |
| 250QJ50-33/2 | 7.5 | 10 | 46-54 | 28-38 | 3" | 18 |
| 250QJ50-60/3 | 15 | 20 | 46-54 | 51-69 | 3" | 33.9 |
| 250QJ100-36/2 | 15 | 20 | 80-120 | 32-42 | 4" | 33.9 |
| 250QJ140-15/1 | 9.2 | 13 | 130-150 | 13-17 | 5" | 21.7 |
| 250QJ160-15/1 | 13 | 18 | 148-172 | 12-18 | 5" | 30.1 |
Buying Guide:
If your well is special, please tell us the well diameter. We offer various of submersible pump parameters, will choose the suitable working size according to your requirements. Or if you are not sure, please tell us your capacity and head, we will suggest the best suitable model for you.
2.2kw 3kw 4kw 5.5kw 7.5kw 9.2kw 11kw 13kw 15kw submersible water pump, it is more commercial for irrigation, Cast iron or stainless steel material, QJ series deep well submersible water pumps, QS series submersible fountain pumps overview:
