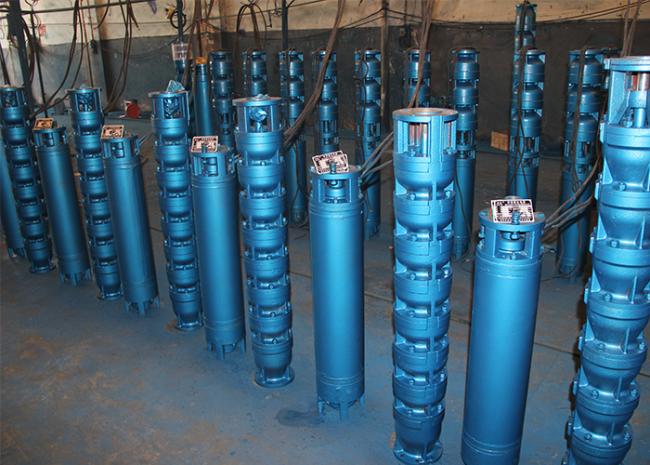

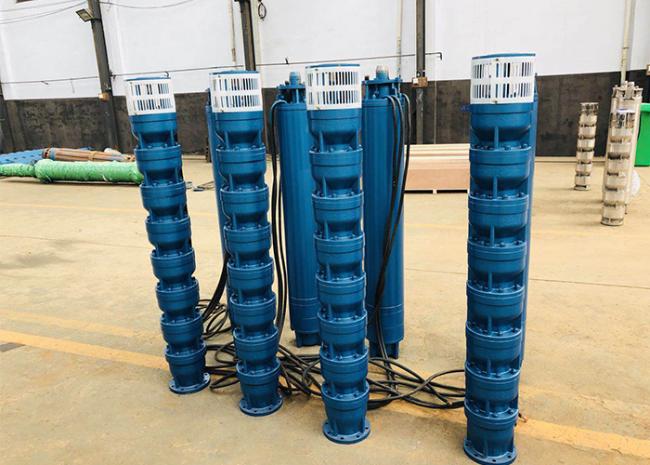

Cast Iron Deep Well Submersible Water Pump 45-110kw 18-1400m3/h Flow Rate
Flow 18-1400m3/h 45kw 55kw 63kw 75kw 90kw 100kw 110kw Deep Well Submersible Pump
Deep well submersible pump applications:
1. Groundwater pumping
Deep well submersible pump features:
1. Large capacity, high head
Working conditions of deep well submersible pump:
1. 380V voltage deviation is no more than ±5%, frequency is 50HZ, three -phase power deviation is no more than ±1%
2. Motor cavity must be filled with water to cooling motor and lubricate bearings
3. The first stage impeller of the pump should be more than 2m below the moving water surface,pump unit should be less than 70m below the static water level
4. The distance from the motor bottom to well bottom must be more than 3m
45kw 55kw 63kw 75kw 90kw 100kw 110kw Deep Well Submersible Pump Parameters:
| Model | Motor Power | Flow Range | Head Range | Rated Current | |
| QJ Series | kw | hp | m3/h | m | A |
| 200QJ20-351/26 | 45 | 61 | 18-22 | 298-403 | 96.9 |
| 200QJ20-365/27 | 45 | 61 | 18-22 | 310-420 | 96.9 |
| 200QJ20-378/28 | 45 | 61 | 18-22 | 320-435 | 96.9 |
| 200QJ20-391/29 | 45 | 61 | 18-22 | 330-450 | 96.9 |
| 200QJ20-405/30 | 45 | 61 | 18-22 | 345-465 | 96.9 |
| 200QJ32-247/19 | 45 | 61 | 29-35 | 210-284 | 96.9 |
| 200QJ32-256/16 | 45 | 61 | 29-35 | 217-265 | 96.9 |
| 200QJ32-260/20 | 45 | 61 | 29-35 | 226-299 | 96.9 |
| 200QJ32-272/17 | 45 | 61 | 29-35 | 232-313 | 96.9 |
| 200QJ32-273/21 | 45 | 61 | 29-35 | 232-313 | 96.9 |
| 200QJ32-286/22 | 45 | 61 | 29-35 | 244-328 | 96.9 |
|
200QJ32-288/18 |
45 | 61 | 29-35 | 245-330 | 96.9 |
| 200QJ40-221/17 | 45 | 61 | 37-43 | 195-255 | 96.9 |
| 200QJ40-234/18 | 45 | 61 | 37-43 | 206-77 | 96.9 |
| 200QJ50-180/12 | 45 | 61 | 46-54 | 153-207 | 96.9 |
| 200QJ50-182/14 | 45 | 61 | 46-54 | 154-210 | 96.9 |
| 200QJ50-195/13 | 45 | 61 | 46-54 | 165-225 | 96.9 |
| 200QJ50-195/15 | 45 | 61 | 46-54 | 165-225 | 96.9 |
| 200QJ63-140/10 | 45 | 61 | 58-68 | 120-164 | 96.9 |
| 200QJ63-154/11 | 45 | 61 | 58-68 | 130-180 | 96.9 |
| 200QJ80-110/10 | 45 | 61 | 74-86 | 95-125 | 96.9 |
| 200QJ80-121/11 | 45 | 61 | 74-86 | 104-138 | 96.9 |
| 200QJ100-90/6 | 45 | 61 | 80-120 | 88-92 | 96.9 |
| 200QJ100-105/7 | 45 | 61 | 80-120 | 102-107 | 96.9 |
| 250QJ50-180/9 | 45 | 61 | 46-54 | 150-210 | 77.8 |
| 250QJ50-200/10 | 45 | 61 | 46-54 | 170-230 | 94.1 |
| 250QJ50-220/11 | 55 | 75 | 46-54 | 187-253 | 114.3 |
| 250QJ50-240/12 | 55 | 75 | 46-54 | 204-276 | 114.3 |
| 250QJ50-260/13 | 63 | 86 | 46-54 | 230-290 | 127.9 |
| 250QJ50-280/14 | 63 | 86 | 46-54 | 268-322 | 127.9 |
| 250QJ50-300/15 | 63 | 86 | 46-54 | 265-335 | 127.9 |
| 250QJ50-320/16 | 75 | 102 | 46-54 | 272-368 | 152.3 |
| 250QJ50-340/17 | 75 | 102 | 46-54 | 315-375 | 152.3 |
| 250QJ50-360/18 | 90 | 122 | 46-54 | 330-390 | 182.8 |
| 250QJ50-380/19 | 90 | 122 | 46-54 | 350-410 | 182.8 |
| 250QJ50-400/20 | 100 | 136 | 46-54 | 365-430 | 203.1 |
| 250QJ63-160/8 | 45 | 61 | 58-68 | 130-184 | 94.1 |
| 250QJ63-200/10 | 55 | 75 | 58-68 | 170-230 | 114.3 |
| 250QJ63-220/11 | 63 | 86 | 58-68 | 180-253 | 127.9 |
| 250QJ63-260/13 | 75 | 102 | 58-68 | 220-299 | 152.3 |
| 250QJ63-300/15 | 90 | 122 | 58-68 | 205-343 | 182.8 |
| 250QJ80-120/6 | 45 | 61 | 74-86 | 102-138 | 94.1 |
| 250QJ80-140/7 | 55 | 75 | 74-86 | 118-163 | 114.3 |
| 250QJ80-160/8 | 55 | 75 | 74-86 | 136-184 | 114.3 |
| 250QJ80-180/9 | 63 | 86 | 74-86 | 153-207 | 127.9 |
| 250QJ80-200/10 | 75 | 102 | 74-86 | 170-230 | 152.3 |
| 250QJ80-220/11 | 90 | 122 | 74-86 | 190-250 | 152.3 |
| 250QJ80-240/12 | 90 | 122 | 74-86 | 204-276 | 152.3 |
| 250QJ80-260/13 | 100 | 136 | 74-86 | 220-280 | 203.1 |
| 250QJ80-280/14 | 110 | 150 | 74-86 | 235-325 | 223.4 |
| 300QJ200-60/3 | 55 | 75 | 186-214 | 51-69 | 115 |
| 300QJ200-80/4 | 75 | 102 | 186-214 | 68-92 | 154.1 |
| 300QJ200-100/5 | 90 | 122 | 186-214 | 85-115 | 183.8 |
| 300QJ200-120/6 | 110 | 150 | 186-214 | 100-138 | 222.1 |
| 300QJ240-44/2 | 45 | 61 | 223-257 | 37-51 | 94.1 |
| 300QJ240-66/3 | 75 | 102 | 223-257 | 56-76 | 152.3 |
| 300QJ240-88/4 | 100 | 136 | 223-257 | 75-101 | 203.1 |
| 300QJ240-110/5 | 100 | 136 | 223-257 | 95-125 | 203.1 |
| 300QJ300-40/2 | 55 | 75 | 279-321 | 35-45 | 115 |
| 300QJ300-60/3 | 75 | 102 | 279-321 | 51-69 | 154.1 |
| 300QJ300-80/4 | 110 | 150 | 279-321 | 68-92 | 223.4 |
If your well is special, please tell us the well diameter. We offer various of submersible pump parameters, choosing the suitable working size according to your requirements. Or if you are not sure, please tell us your capacity and head, we will suggest the best suitable model for you.

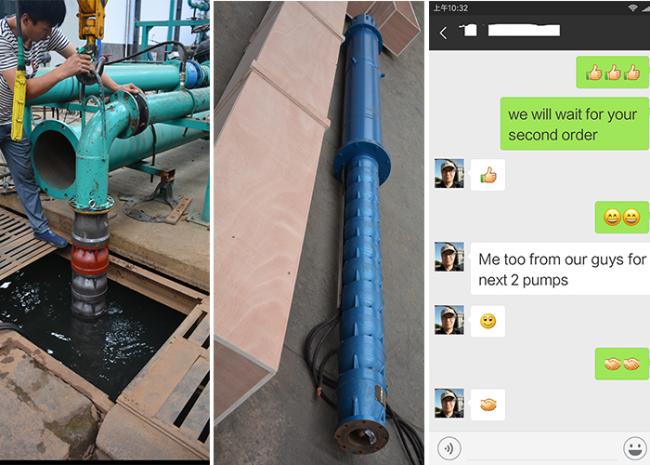

Customer Case:
4 sets Stainless steel submersible pump with motor power 75kw(100Hp) have been deliveried to Indonesia.
The models details of pumps as below:
2. Head:105m
3. Motor power: 75kw
4. Diameter wells: 10 inch(250mm)
5. Material: Cast iron
