160kw -300kw Deep Well Submersible Water Pump Farmland Irrigation And Drainage
160kw 185kw 220kw 260kw 300kw Head 38-130m Flow Deep Well Submersible Pump

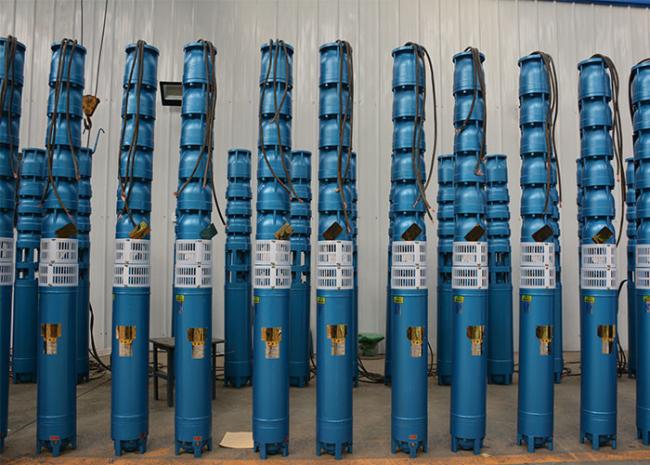

Description of QJ deep well submersible pump:
Application: QJ series deep well submersible pumps are widely used in farmland irrigation and drainage, supply and drainage systems for industrial and residential buildings, water diversion in hills and mountains, drainage in low-lying areas, and various water conservancy facilities such as water supply and drainage in urban and rural industrial and mining enterprises.
Features: This kind of pump combines motor, water pump and assembly into one, which have features of simple structure, simple installation and removal, small footprint, easy to use and maintenance, safe and reliable operation, and does not pollute water sources.
Working conditions of deep well submersible pump:
- Three-phase power supply, voltage 380V (error less than 5%), frequency 50Hz (error less than 1%).
- Motor must be filled with clean water.
- The primary impeller of the pump should be immersed at least 2m under dynamic water level. The pump unit shall be less than 70m deep under static water level. The foot of motor shall be at least 3m above well bottom.
- Water temperatureshould not higher than 20 ℃.
- Sand content of the water (by quality) not more than 0.01%.
- Water PH 6.5~8.5.
- The content of hydrogen sulfide in watershould not be more than 1.5 mg/l.
- The content of chloridion in water shouldnot be higher than 400mg/l.
- The water source must provide enough water for the pump to work continuously.
Water Submersible Pump Models:
| Pump diameter | Model | Motor Power | Flow Range | Head Range | |
| Inch (") | QJ Series | kw | hp | m3/h | m |
| 12" | 300QJ400-80/2 | 160 | 220 | 368-432 | 76-84 |
| 12" | 300QJ400-120/3 | 220 | 300 | 368-432 | 117-123 |
| 12" | 300QJ500-75/5 | 185 | 250 | 460-540 | 72-78 |
| 12" | 300QJ500-90/6 | 220 | 300 | 460-540 | 87-93 |
| 14" | 350QJ250-125/5 | 160 | 220 | 233-267 | 120-130 |
| 14" | 350QJ320-120/4 | 185 | 250 | 305-335 | 115-125 |
| 16" | 400QJ500-80/2 | 185 | 250 | 460-540 | 77-83 |
| 20" | 500QJ640-56/2 | 185 | 250 | 600-680 | 54-58 |
| 20" | 500QJ640-84/3 | 260 | 350 | 600-680 | 82-86 |
| 24" | 600QJ800-50/2 | 220 | 300 | 750-850 | 48-52 |
| 24" | 600QJ800-75/3 | 300 | 400 | 750-850 | 73-77 |
| 24" |
600QJ1000-40/2 |
220 | 300 | 900-1200 | 38-42 |
| 24" | 600QJ1000-60/3 | 300 | 400 | 900-1200 | 58-62 |
If your well is special, please tell us the well diameter. We offer various of submersible pump parameters, choosing the suitable working size according to your requirements. Or if you are not sure, please tell us your capacity and head, we will suggest the best suitable model for you.
